Trimmer Auto Switch D

Description

・Easily distinguish workpieces with a single auto switch
・Minimum detectable adjustment width: 0.5 mm
・Applicable to the short stroke cylinder
　The detection of the extended and retracted end
　positions can be made by a single auto switch.
　This switch can be used when two auto switches
　cannot be mounted due to a short stroke.

Other Data :
> Safety Instructions
> Actuators/Precautions
> Auto Switches/Precautions
> Model Selection/Technical Data
> CV Series/Precautions
> Green Procurement (RoHS)

Product Number Check

Download Catalogs

Categories: Products List, Air Cylinders, Auto Switches

Technical Data
Features

Technical Data

Features

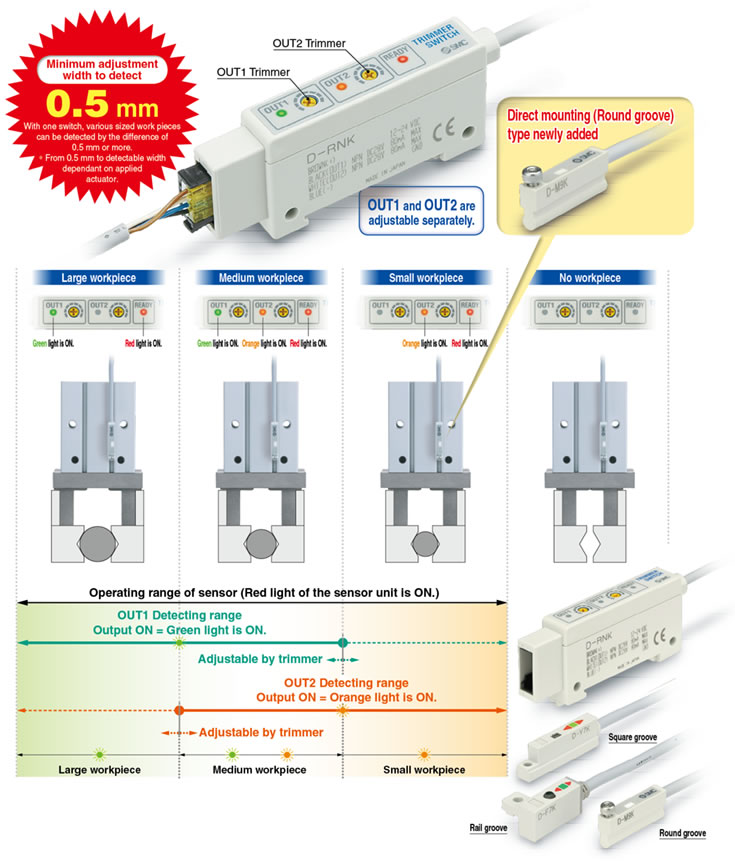

■One auto switch allows work pieces to be distinguished easily.

■Applicable to the short stroke cylinder.

Only one auto switch can detect the extended and retracted end positions.
This switch can be used when two auto switches cannot be mounted due to short stroke.

■Examples

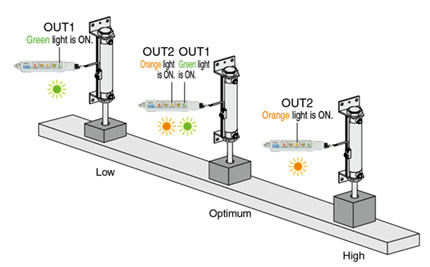

For checking height of a workpiece

For checking depth of the machined hole
