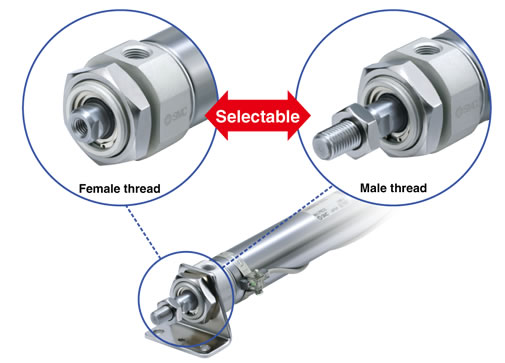

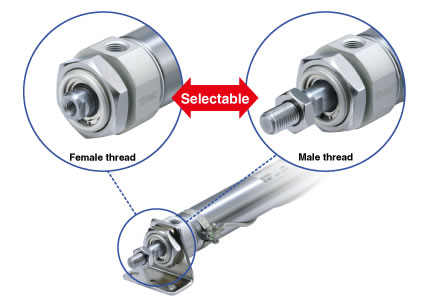

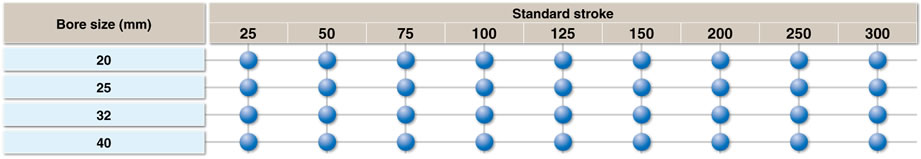

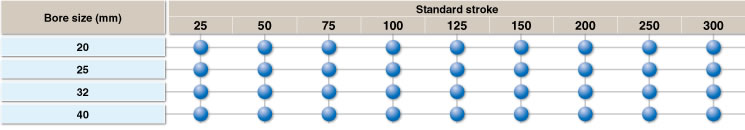

・Female rod end is available as standard.
・Easy fine adjustment of auto switch position
・Single clevis and trunnion pivot brackets are available.

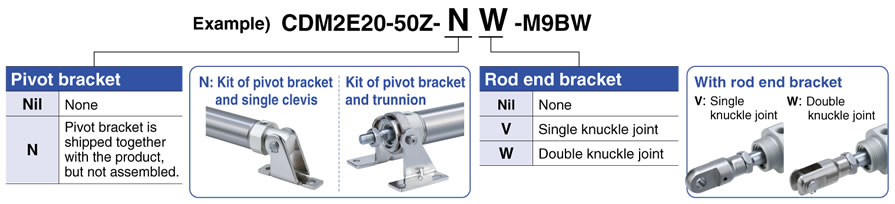

・Part numbers with a rod end bracket and/or pivot bracket are available.
(It is not necessary to order a bracket for the applicable cylinder separately.)

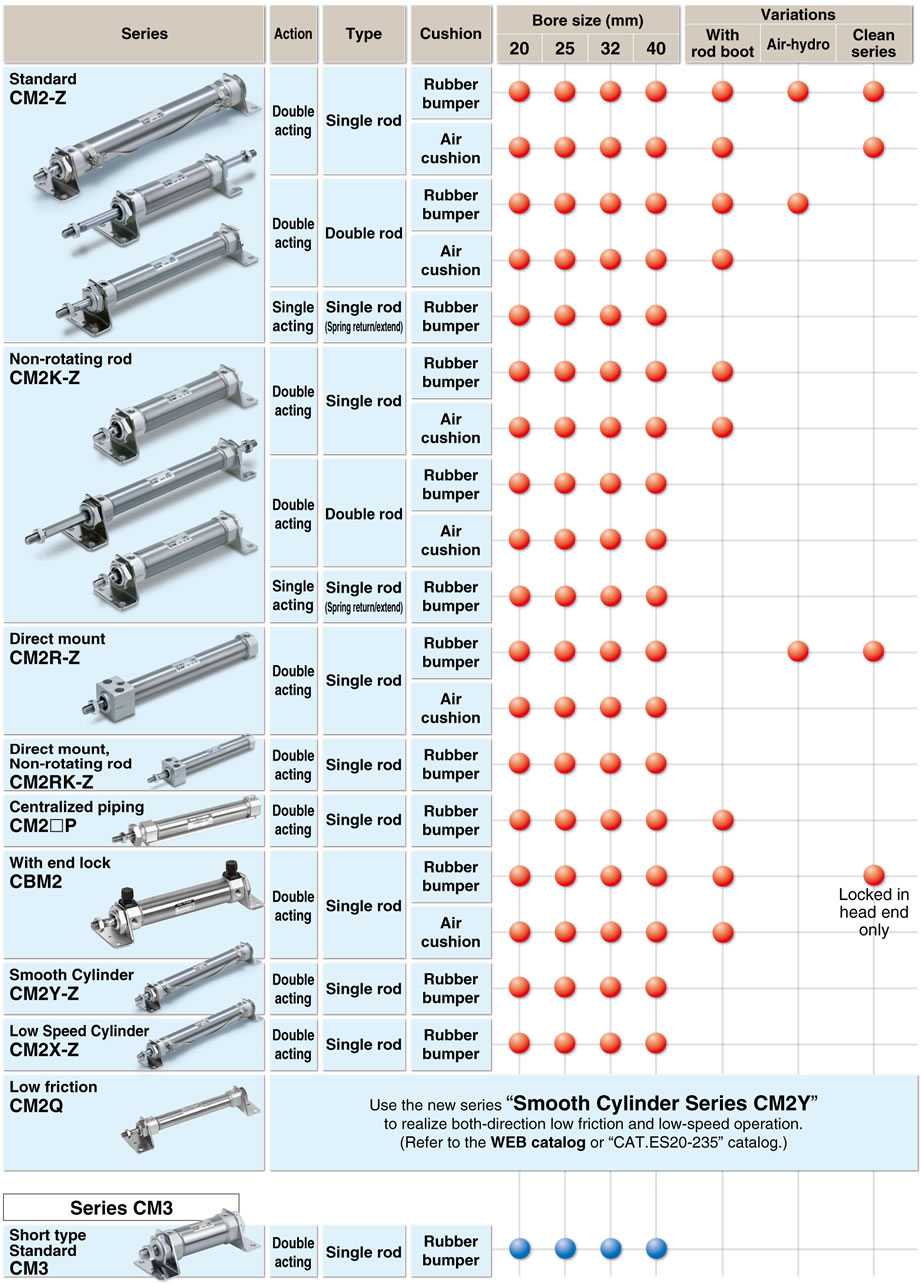

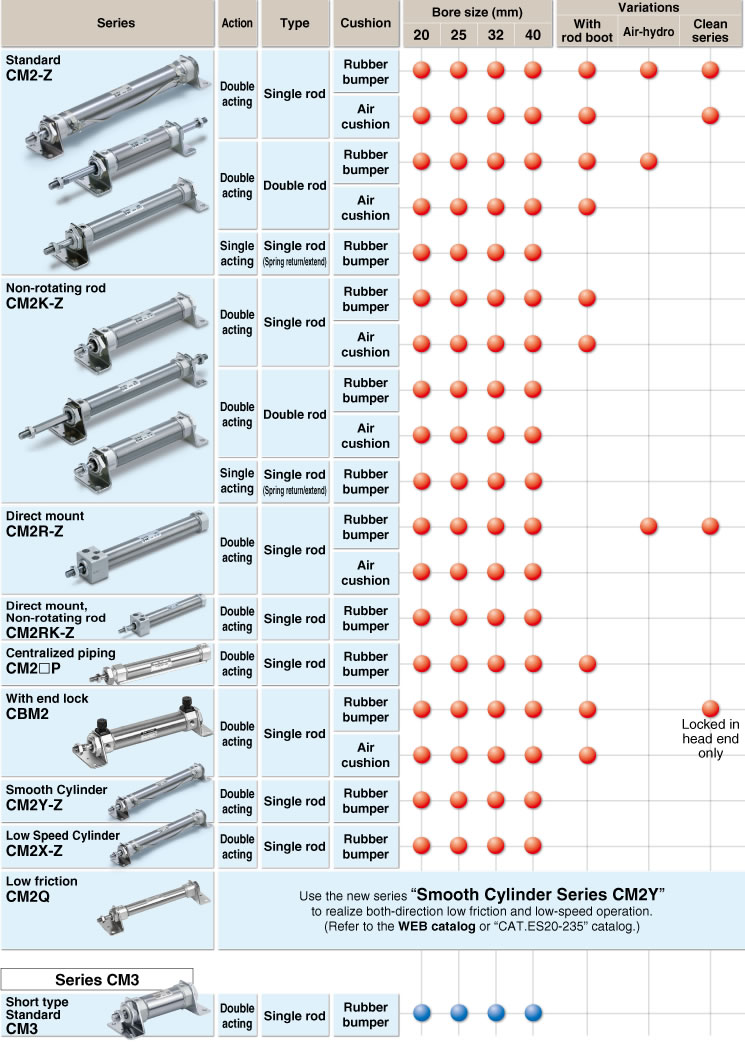

・With auto switch (CDM2-Z series: CDM2, CDM2W, CDM2K, CDM2KW,
CDM2R, CDM2RK, CDM2□P, CDBM2)
Other Data :
> Safety Instructions
> Auto Switches/Precautions
> Model Selection/Technical Data
> Quick Selection Table
> Simple Specials
> Made to Order Common Specifications
> Green Procurement (RoHS)

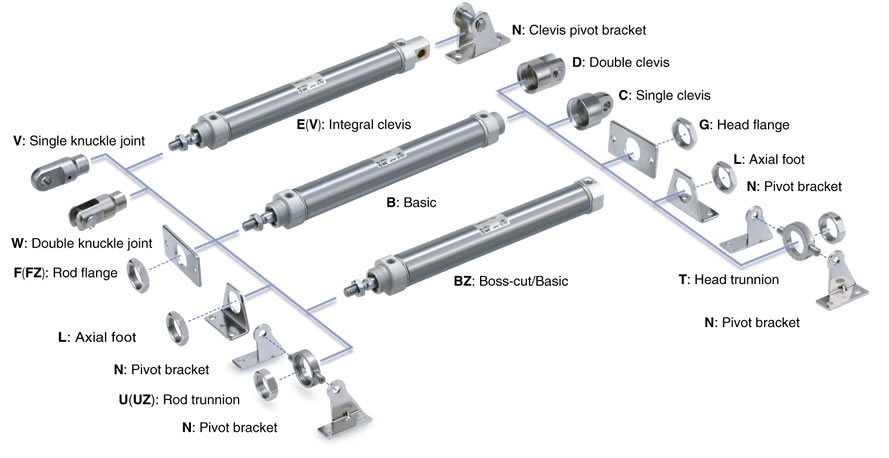

■Various mounting bracket options
■Easy fine adjustment of auto switch position

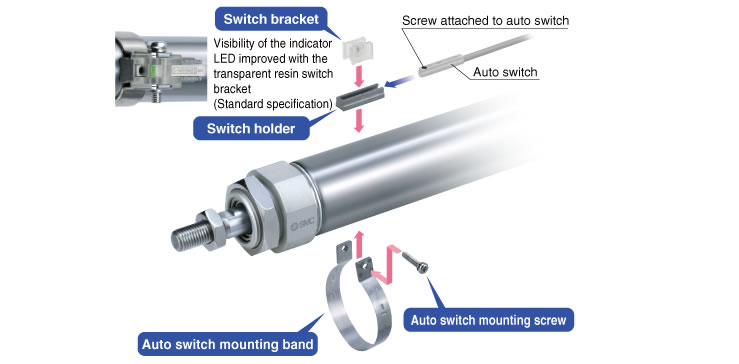

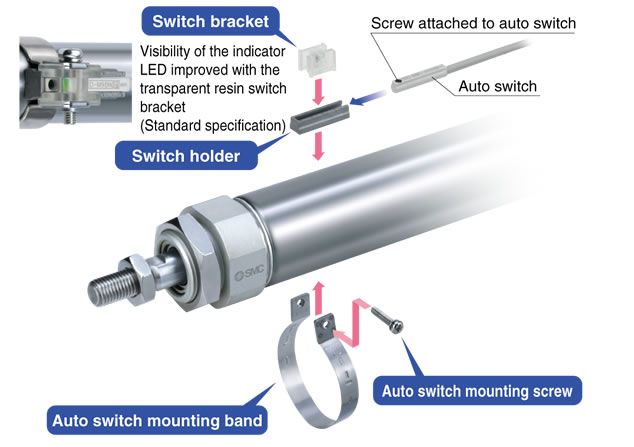

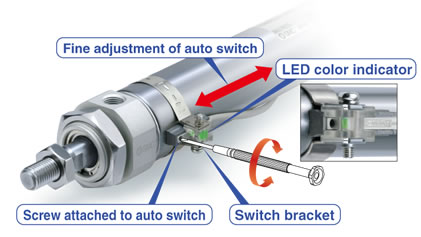

Fine adjustment of the auto switch set position can be performed by loosening the auto switch attached screw. Operability improved compared with the conventional auto switch set position adjustment, where the complete switch mounting band requires loosening.
■Single clevis and trunnion pivot brackets are available.

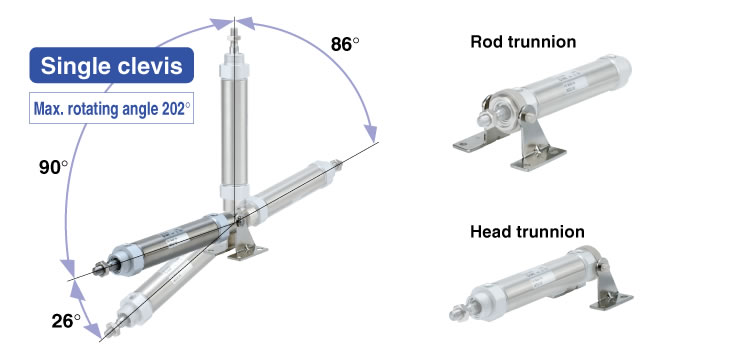

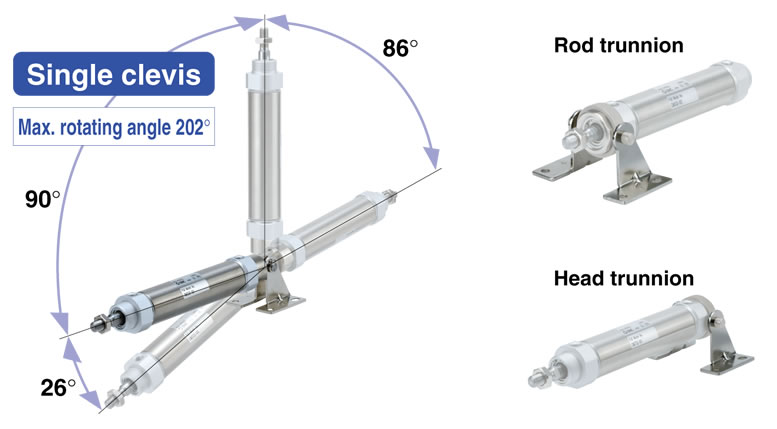

Rotating angle: Max. 202°（Bore size 40 mm）
■Non-rotating rod type, single acting CM2K series is added.
■The models with rod end bracket and/or pivot bracket part numbers are expanded.

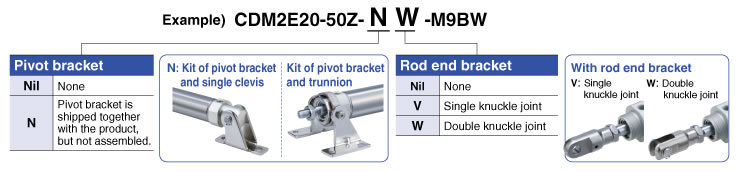

■Part numbers with rod end bracket and/or pivot bracket available
Not necessary to order a bracket for the applicable cylinder separately
Note) Mounting bracket is shipped together with the product, but not assembled.

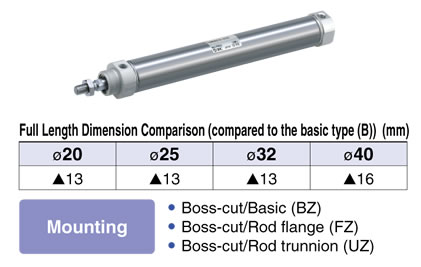

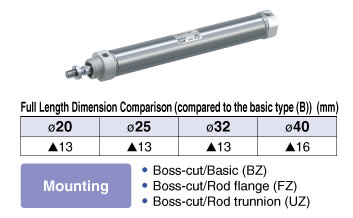

■Total length is shortened with boss-cut type.
Boss for the head cover bracket is eliminated and the total length of cylinder is shortened.
■No environmental hazardous substances used
Compliant with EU RoHS directive. Lead free bushing is used as sliding material.
■Specifications, performance and mounting method are same as the existing product.
■Grease is selectable. (Option)
■Water resistant compact auto switch now available
∗ For details about the clean series, refer to the WEB catalog.
