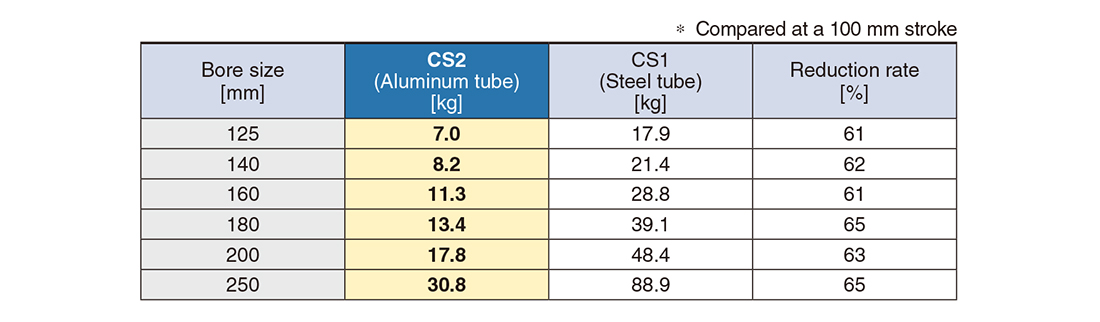

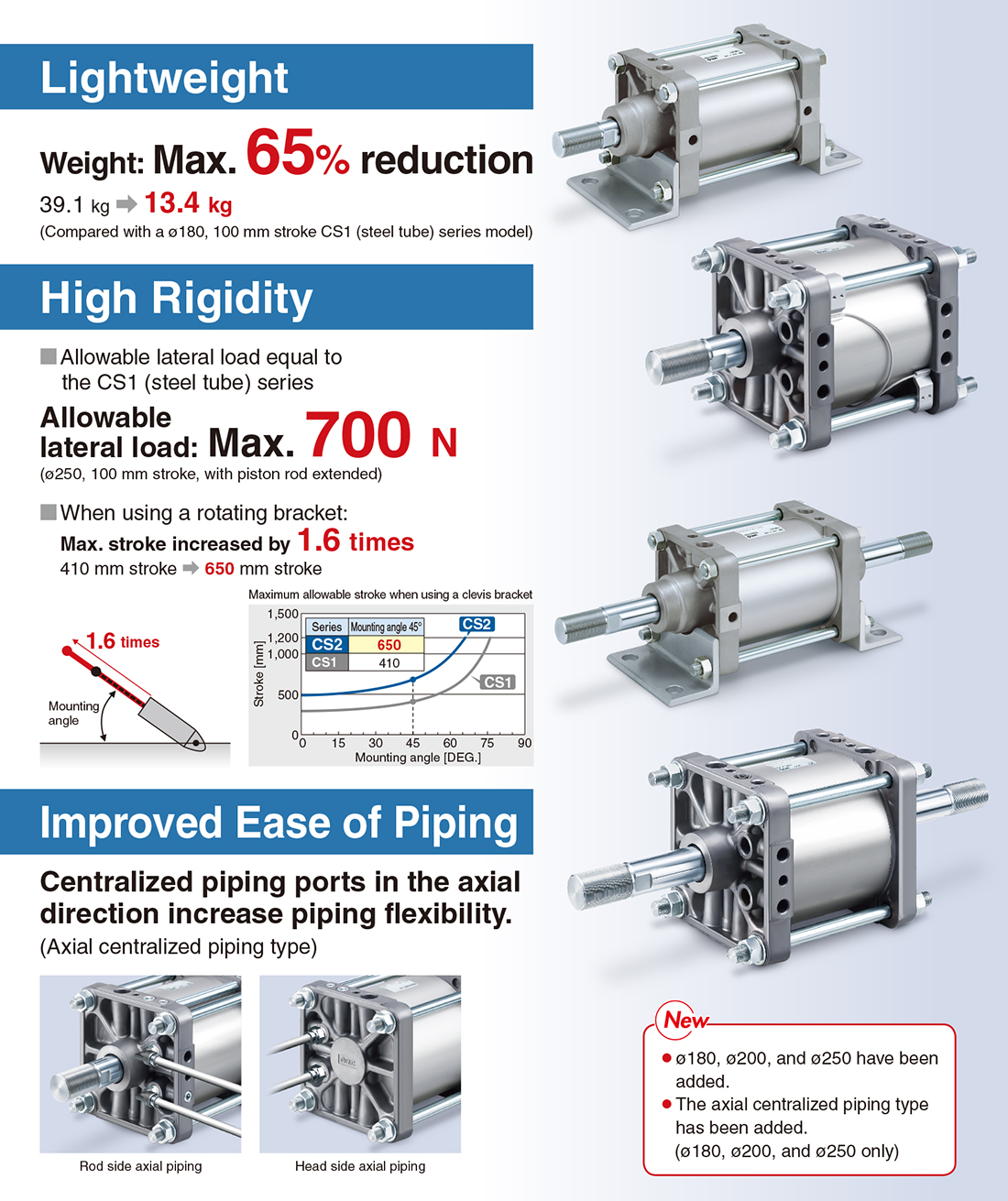

・Lightweight: Weight reduced by up to 65% (39.1 kg → 13.4 kg)

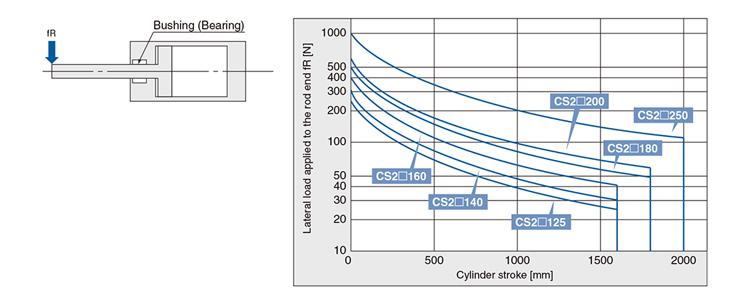

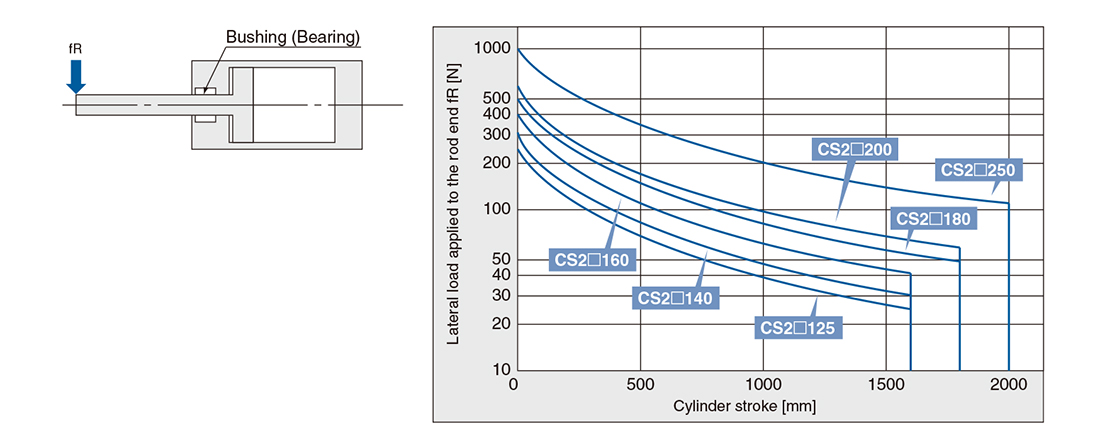

・High rigidity (Allowable lateral load: Max. 700 N)
・Improved ease of piping:
Centralized piping ports in the axial direction increase piping flexibility.
(Axial centralized piping type)
・With auto switch (CDS2 series: CDS2)
Other Data :
> Safety Instructions
> Auto Switches/Precautions
> Model Selection/Technical Data
> Simple Specials
> Made to Order Common Specifications
> Green Procurement (RoHS)
Made to Order Common Specifications
■Ease of piping improved by placing the piping and cushion valve on the same side
■Mounting is interchangeable with the CS1 series.
・Interchangeable cylinder mounting dimensions
・Interchangeable rod end thread sizes
■Air cushion + bumper cushion combined structure
The bumper cushion reduces the metal noise that occurs when the piston stops at the end of the stroke. (ø180, ø200, and ø250 only)

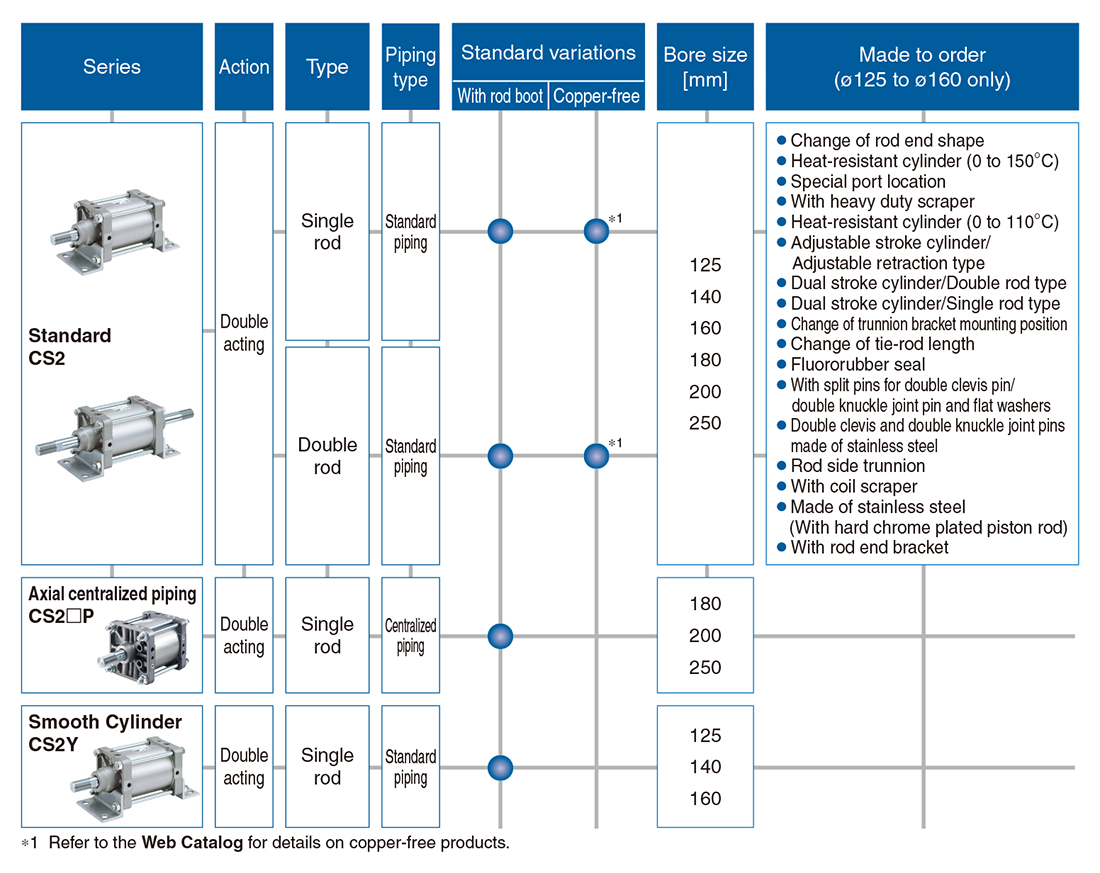

■Smooth Cylinder CS2Y Series (ø125 to ø160 only)
・Min. operating pressure: 0.005 MPa
・For stable operation even at low speeds of 5 mm/s
■Axial Centralized Piping (ø180, ø200, and ø250 only)
Increased piping flexibility, Reduced piping labor
・Piping ports are located in the axial direction of the head cover or the rod cover.
・For long-stroke operation, the speed can be adjusted on one side. Furthermore,
the piping has been simplified, resulting in improved ease of piping.
