Features
■Circulating fluid can be heated without a heater.
Heating method using discharged heat makes a heater unnecessary.
![](https://www.smcworld.com/assets/newproducts/en-jp/hrs100/images/01.jpg)
Heating-up time: 1/10
![](https://www.smcworld.com/assets/newproducts/en-jp/hrs100/images/02.jpg)
■Cooling capacity: 10 kW/15 kW
■Set temperature range: 5℃ to 35℃
■Max. ambient temperature: 45℃
■Temperature stability(When a load is stable): ±1.0℃, ±0.1℃(460 VAC type)
■Low-noise design: 70 dB(A)
■Outdoor installation: IPX4
Cooling valve control, Air-cooled condenser fan, Heating valve control
![](https://www.smcworld.com/assets/newproducts/en-jp/hrs100/images/04.jpg)
■Electric conductivity control set
(Optional accessories)
(With DI filter + Solenoid valve kit for control)
The electric conductivity of the circulating fluid can be set with the controller monitor arbitrarily.
Set control range: 5.0 to 45.0 μ S/cm
![](https://www.smcworld.com/assets/newproducts/en-jp/hrs100/images/05.jpg)
■Relief valve set
(Optional accessories)
Prevents increase in circulating fluid discharge pressure.
(Relief pressure: 0.32 MPa
![](https://www.smcworld.com/assets/newproducts/en-jp/hrs100/images/06.jpg)
■With caster adjuster-foot
(Option)
![](https://www.smcworld.com/assets/newproducts/en-jp/hrs100/images/07.jpg)
■Power supply (24 VDC) available
Power can be supplied from the terminal block of the thermo-chiller to external switches etc.
![](https://www.smcworld.com/assets/newproducts/en-jp/hrs100/images/08.jpg)
■Improved maintenance performance
![](https://www.smcworld.com/assets/newproducts/en-jp/hrs100/images/09.jpg)
The serial communication (RS232C/RS485) and contact I/Os (2 inputs and 3 outputs) are equipped as standard. Communication with the user’s equipment and system construction are possible, depending on the application. A 24 VDC output can be also provided, and is available for a flow switch (SMC’s PF3W, etc.).
![](https://www.smcworld.com/assets/newproducts/en-jp/hrs100/images/10.jpg)
■Outdoor installation IPX4
![](https://www.smcworld.com/assets/newproducts/en-jp/hrs100/images/11.jpg)
■Globally compatible power supplies
(Europe, Asia, Oceania, North, Central and South America)
・Transformer unnecessary
Power supply: Applicable to 200 to 230 VAC, 380 to 415 VAC, or 460 to 480 VAC
Transformers are unnecessary even when used overseas. ![](https://www.smcworld.com/assets/newproducts/en-jp/hrs100/images/12.jpg)
■Makes cooling water easily available, anytime, anywhere.
![](https://www.smcworld.com/assets/newproducts/en-jp/hrs100/images/13.jpg)

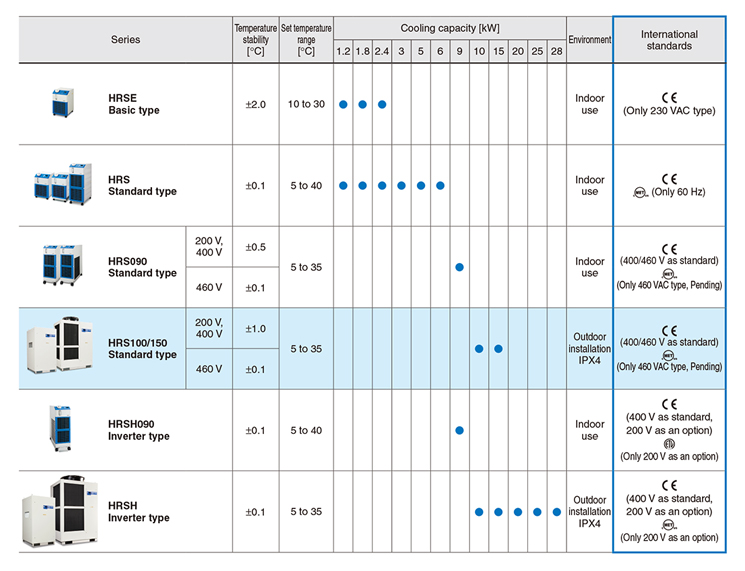

■SMC Thermo-chiller Variations
Lots of variations are available according to the users’ requirements.
![](https://www.smcworld.com/assets/newproducts/en-jp/hrs100/images/17.jpg)
■Circulating Fluid/Facility Water Line Equipment
![](https://www.smcworld.com/assets/newproducts/en-jp/hrs100/images/18.jpg)
