Rotary Table MSQ

Description

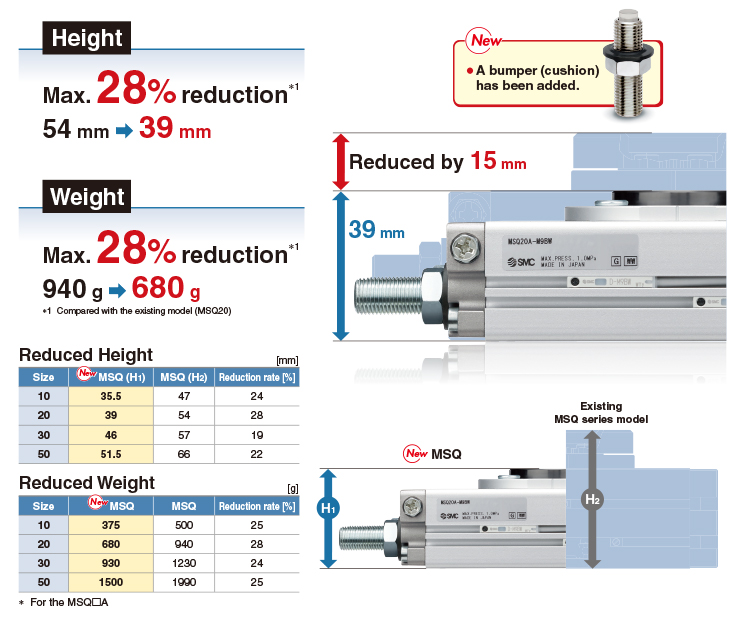

・Compact and lightweight
　Height: Max. 28% reduction∗ (54 mm → 39 mm)
　Weight: Max. 28% reduction∗ (940 g → 680 g)

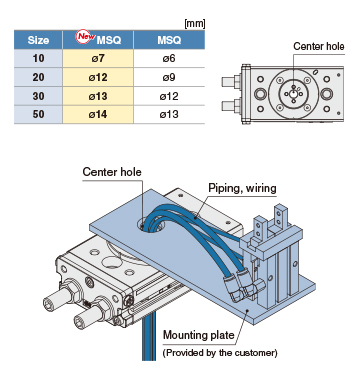

・Enlarged center hole diameter for piping (ø9 mm → ø12 mm)
　* Compared with the existing model (MSQ20)
・The adjustable rotation time range is expanded. (0.2 to 2.0 s/90º)
　Can be used at lower speeds compared with the existing model

Other Data :
> Safety Instructions
> Rotary Actuators/Precautions
> Auto Switches/Precautions
> Rotary Actuators Series Variations/Model Selection
> Green Procurement (RoHS)

Product Number Check

Download Catalogs

Categories: , ,

Technical Data

Features

■Compact and lightweight

■Enlarged center hole diameter for piping

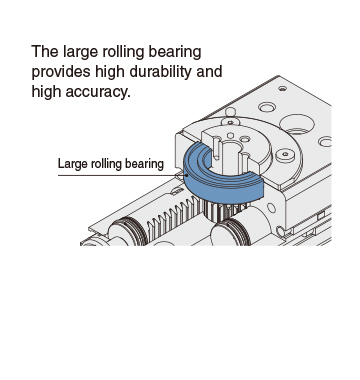

■High durability and high accuracy

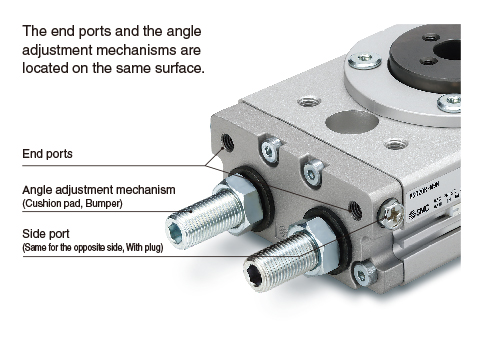

■Improved workability

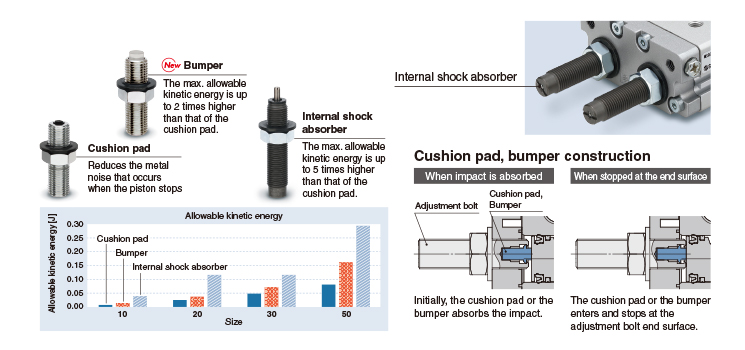

■3 types of cushions are available.

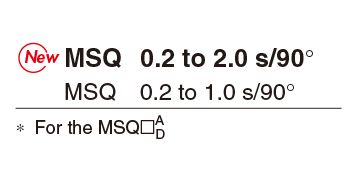

■The adjustable rotation time range is expanded.

Can be used at lower speeds compared with the existing model

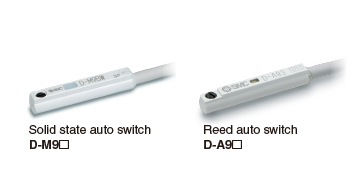

■Compact auto switches are mountable.

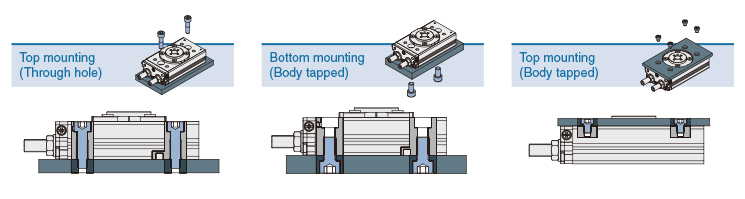

■Select from 3 mounting methods.

Mounting dimensions are interchangeable with the existing MSQ series model. ∗For mounting, refer to the catalog.

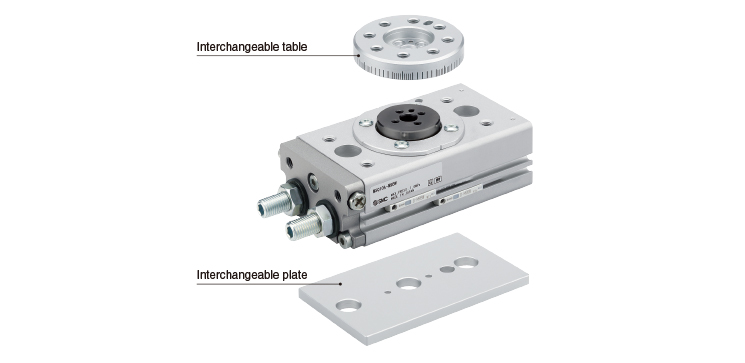

■An interchangeable table and plate are available. (Made to order)

The new model is only fully interchangeable with the existing model when the optional interchangeable plate and table are utilized.
