Rotary Actuator CRB/CDRB

Description

・Features a compact body with a built-in angle adjustment unit and
　auto switch unit (Size: 20, 30, 40)
　Overall length: 44% shorter, Weight: 48% lighter
・Piping, wiring, and angle adjustment can be performed on the
　same side for easier mounting.
・Easy-to-adjust start and end positions with the angle adjustment bolts
　(as standard)
・The position of the chamfered portion of the shaft can be easily checked using
　the rotating angle indicator. (Only for the CDRB with auto switch)
・Each of the units below for the CRB2 series can be mounted to the CRB series.

Other Data :
> Safety Instructions
> Rotary Actuators/Precautions
> Auto Switches/Precautions
> Rotary Actuators Series Variations/Model Selection
> Quick Selection Table
> Green Procurement (RoHS)

Product Number Check

Download Catalogs

Categories: Rotary Actuators Vane Type, Products List, Rotary Actuators/Air Grippers

Technical Data
Features

Technical Data

Features

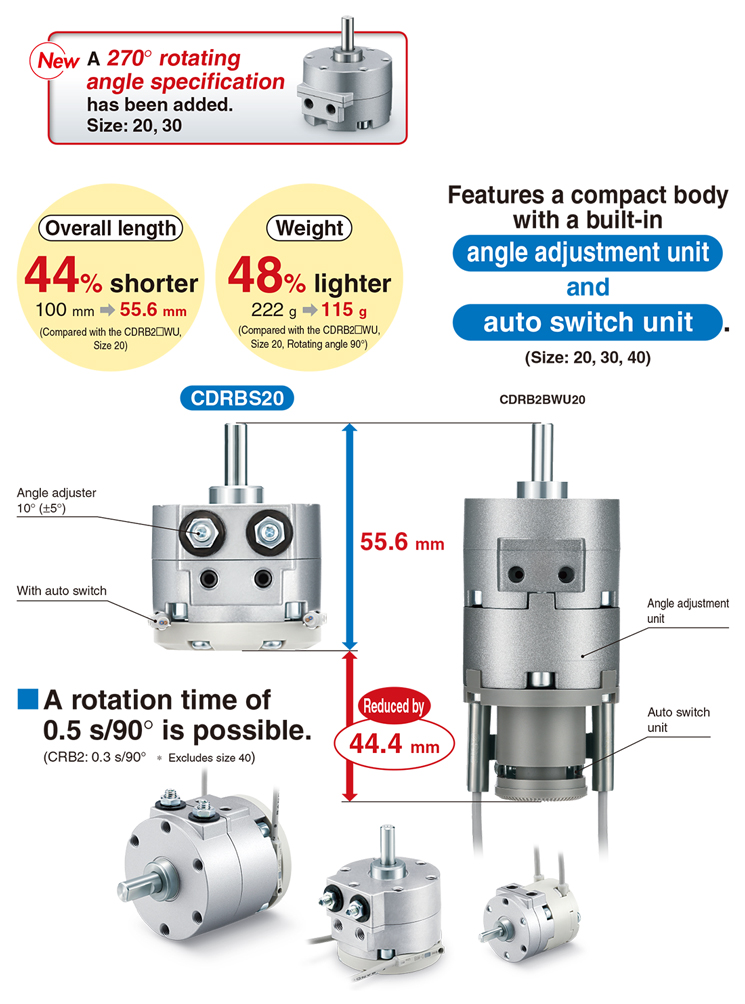

■Features a compact body with a built-in angle adjustment unit and auto switch unit
(Size: 20, 30, 40)

■Overall length

■Weight

■Features

■Shaft type variations

＊ If an auto switch is to be mounted, choose a single shaft (options ① and ⑤).

■Interchangeable mounting

The mounting pitch and shaft configuration are the same as those for the CRB2.

■Mounting

■Each of the units below for the CRB2 series can be mounted to the CRB series.

・The vertical auto switch unit and the angle adjustment unit are the same as those of the CRB2 series. Replacement of just the CRB body can be done during maintenance.
・Each of the units for the CRB2 series can be mounted to the CRB without an auto switch (CRBW).

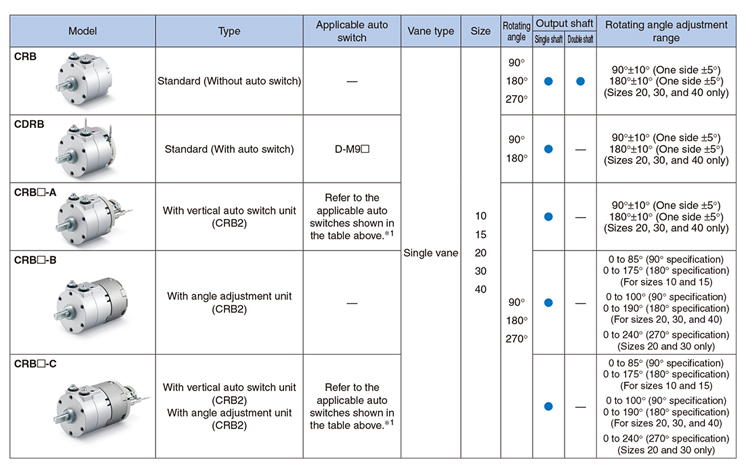

■Series Variations
