Rotary Actuator CRA1/CDRA1

Description

・Compact auto switches (D-M9□ type) are mountable on 2 surfaces.
　Auto switch can be mounted from the front.
・Weight reduced by up to 14%
・With air cushion, Easy adjustment of cushion valve
・With auto switch (CRA1 series: CDRA1, CDRA1□□U, CDVRA1)

Other Data :
> Safety Instructions
> Rotary Actuators/Precautions
> Auto Switches/Precautions
> Rotary Actuators Series Variations/Model Selection
> Quick Selection Table
> Green Procurement (RoHS)

Product Number Check

Model Selection Software

Download Catalogs

Categories: , ,

Technical Data

Features

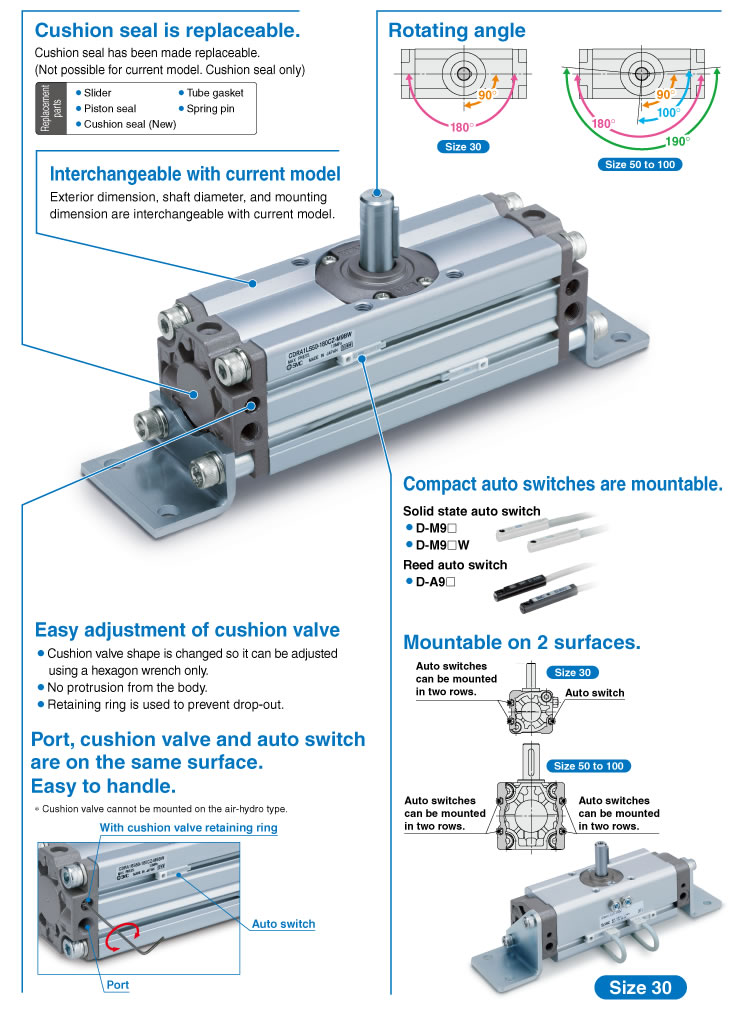

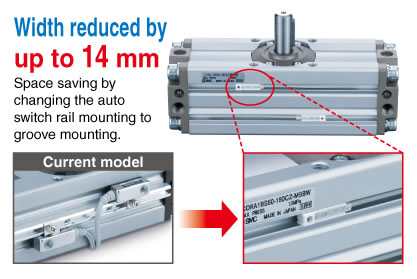

■Compact auto switches are mountable.

Compact auto switches are mountable.(D-M9□)

Compact auto switches are mountable
on 2 surfaces.

Auto switch can be mounted from the front.

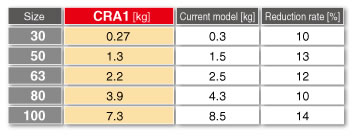

■Weight is reduced by up to 14%, Mounting interchangeable with the current model.

Lightweight body by changing the body and the cover shape.

■Cushion, Rotating angle

Rotating angle 90°, 100°, 180°, 190°

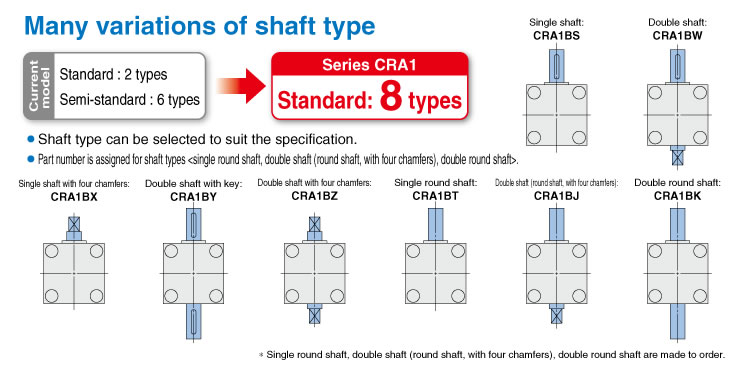

■Many variations of shaft type

Standard: 8 types (Current model/Standard : 2 types, Semi-standard : 6 types)

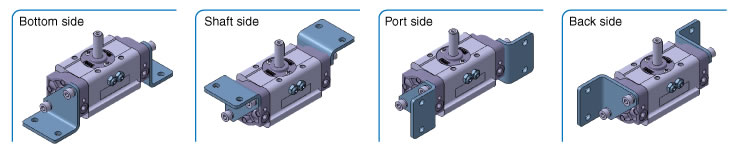

■Mounting suitable for operating conditions is possible.

Foot bracket can be mounted at a desired position.
(Foot bracket is included in the rotary actuator at shipment.)

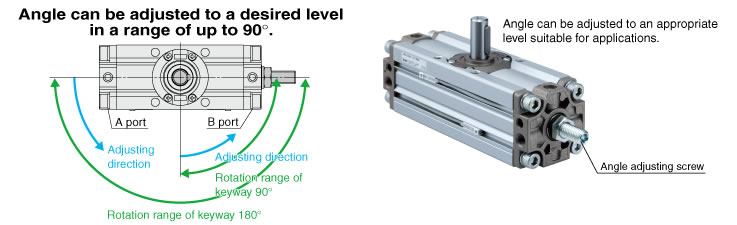

■Angle adjustable type

Angle can be adjusted to a desired level in a range of up to 90°.

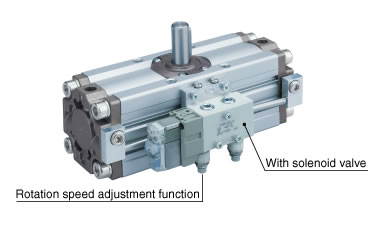

■With solenoid valve

・Solenoid valve and rotation speed adjustment function are integrated.
・Part number is set for the angle adjustable type.
