・Compliant with ISO Standards (15552)
・Cushion valve can easily be adjusted.

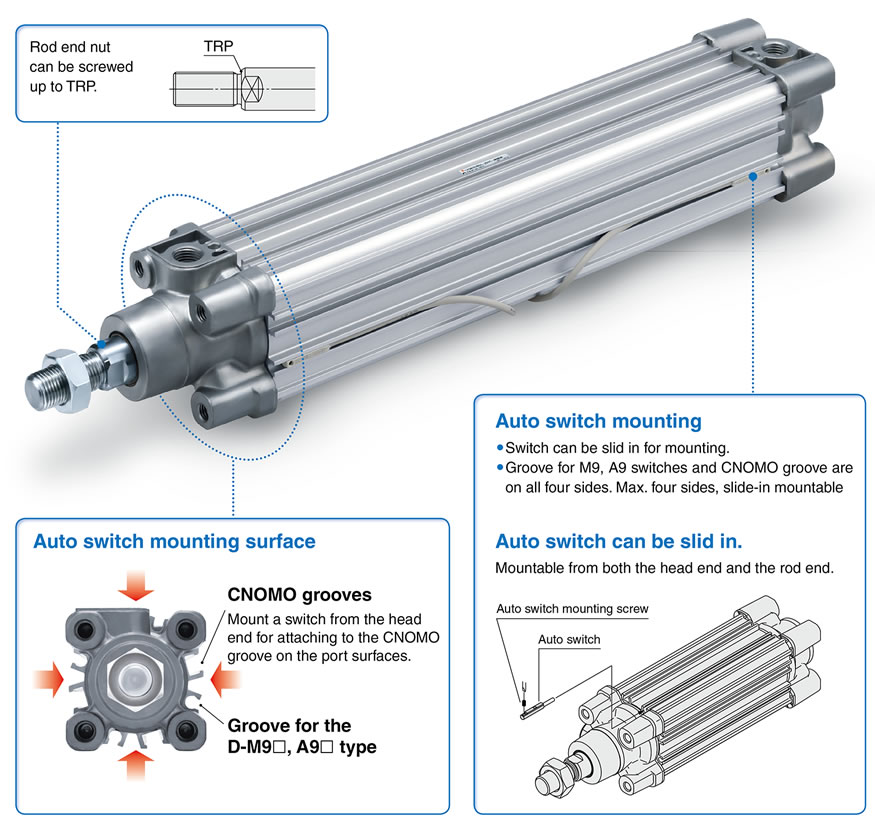

・CNOMO, D-M9□, and A9□ grooves located on 4 surfaces
・With auto switch (CP96SD series: CP96SD, CP96KD)
∗ The CP96 series (ø32 to ø100) has been remodeled.
Please select the new CP96 series.

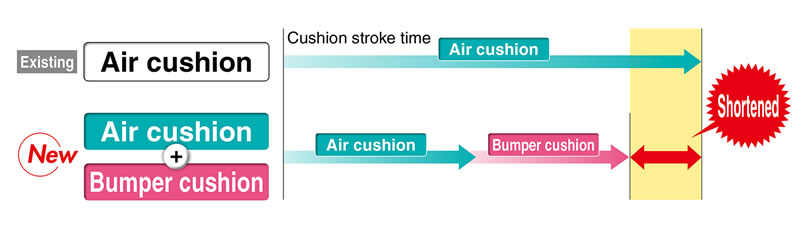

■Cycle time shortened
By adopting a new cushion method (Air cushion + Bumper cushion), Cycle time shortened

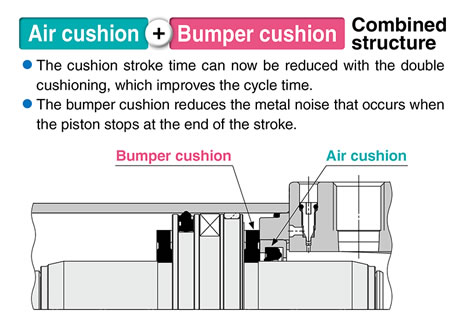

Air cushion + Bumper cushion Combined structure
■The bumper cushion reduces the metal noise that occurs when the piston stops at the end of the stroke.

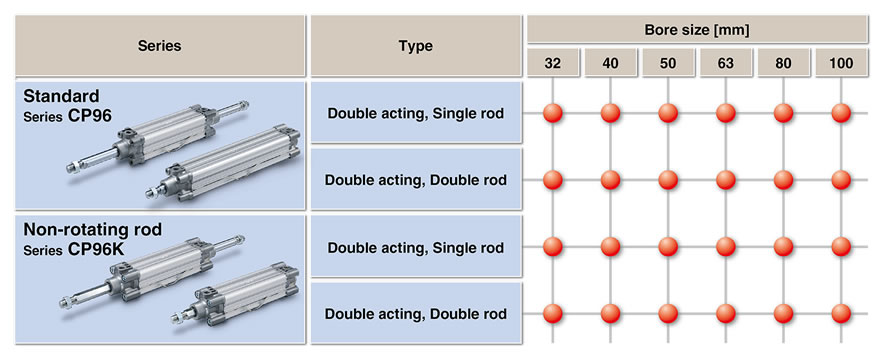

■Series added New
● Standard type, Double rod: Series CP96-W
● Non-rotating rod type,
Single rod: Series CP96K
Double rod: Series CP96K-W
■Made to Order added New
● Heat resistant cylinder (-XB6)
● Heavy duty scraper (-XC4)
● Coil scraper (-XC35) etc. are added.

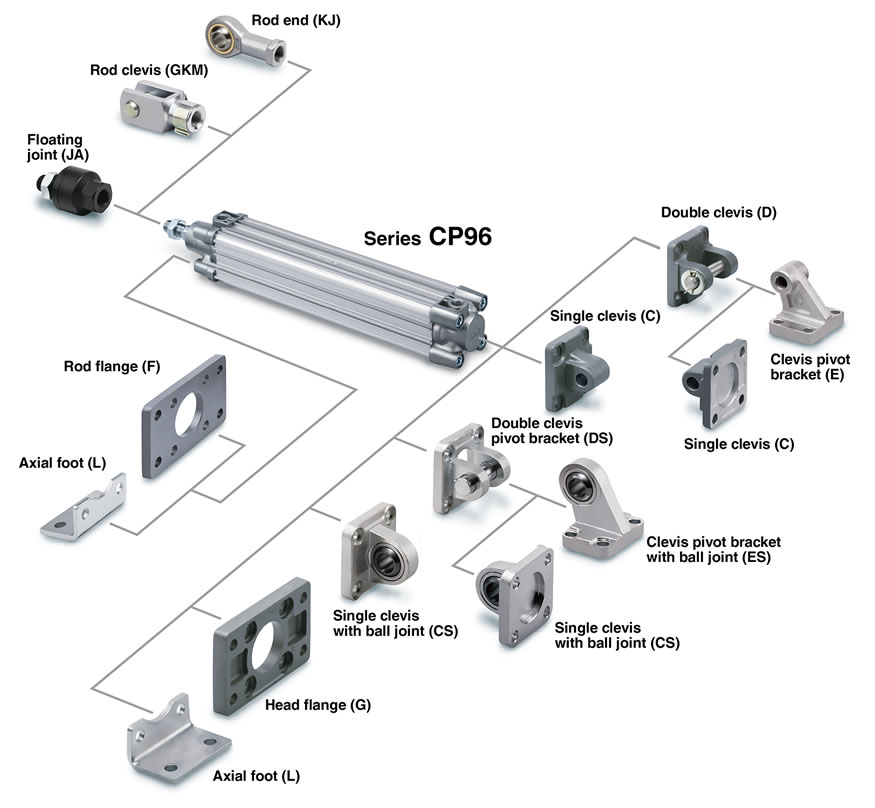

Mounting brackets can be combined according to the operating conditions.
