Air Cylinder CJ2/CDJ2

Description

・Double foot and head flange have been added to the available mounting types.
・Easy fine adjustment of auto switch position
・The auto switch mounting type, band, or rail can be selected with the model number.
・Part numbers with a rod end bracket and/or pivot bracket are available.
　(It is not necessary to order a bracket for the applicable cylinder separately.)
・With auto switch (CDJ2-Z series: CDJ2, CDJ2W, CDJ2K, CDJ2Z, CDJ2ZW, CDJ2RA, CDJ2RK)

Other Data :
> Safety Instructions
> Actuators/Precautions
> Auto Switches/Precautions
> Model Selection/Technical Data
> Quick Selection Table
> Simple Specials
> Made to Order Common Specifications
> Green Procurement (RoHS)

Product Number Check

Simple Specials

Made to Order Common Specifications

Download Catalogs

Categories: , ,

Technical Data

Features

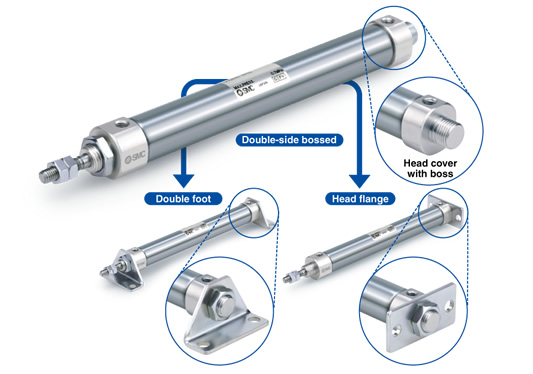

■Double foot/Head flange/Double-side bossed are added to the mounting types.

4 types  7 types(For ø6, 3 types  6 types)

Improved amount of mounting freedom
Head cover with boss is added.

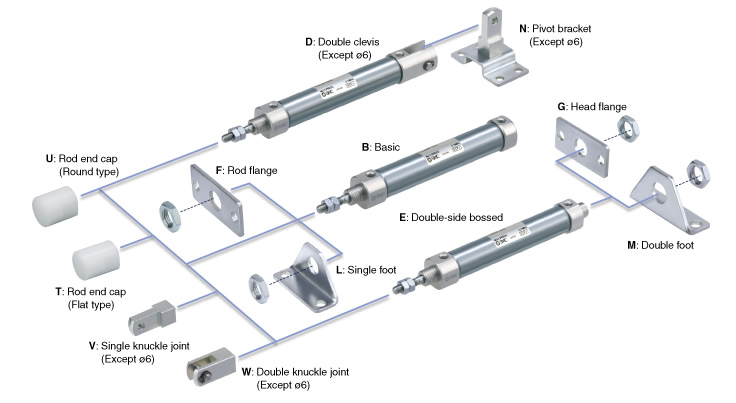

■Various mounting bracket options

  • Suitable mounting brackets can be selected for the installation condition.
  • Improved amount of mounting freedom

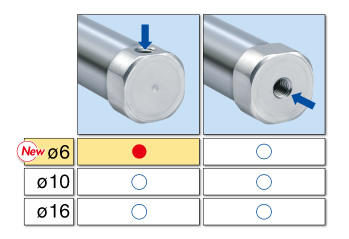

■Head cover port location “Perpendicular to axis” is newly added to ø6. New

Improved piping flexibility

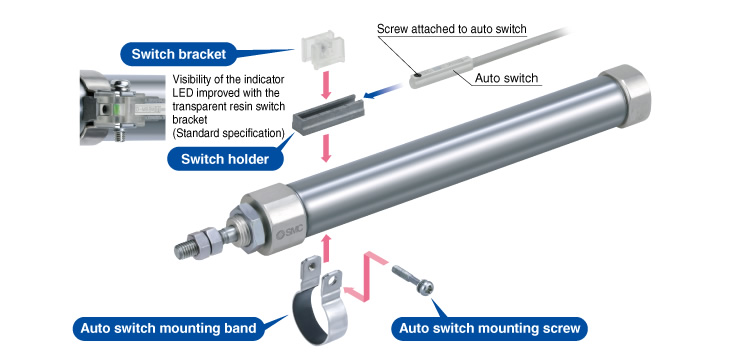

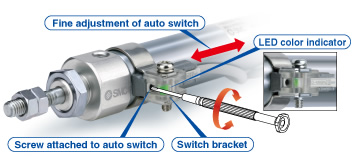

■Easy fine adjustment of auto switch position

Fine adjustment of the auto switch set position can be performed by loosening the auto switch attached screw. Operability improved compared with the conventional auto switch set position adjustment, where the complete switch mounting band requires loosening.

Transparent switch bracket improves visibility of indicator LED.

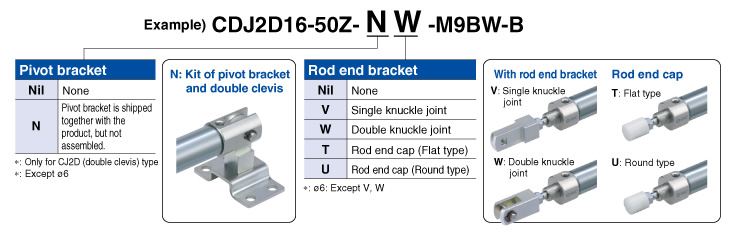

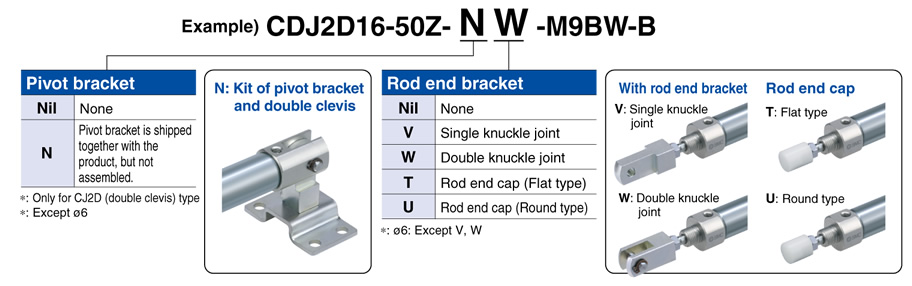

■Part numbers with rod end bracket and/or pivot bracket available

Not necessary to order a bracket for the applicable cylinder separately

Note) Mounting bracket is shipped together with the product, but not assembled.

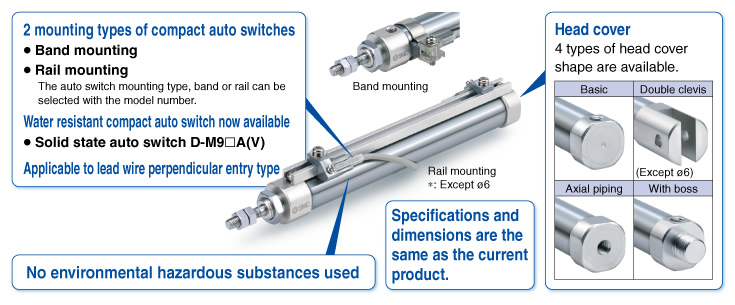

■Other Features

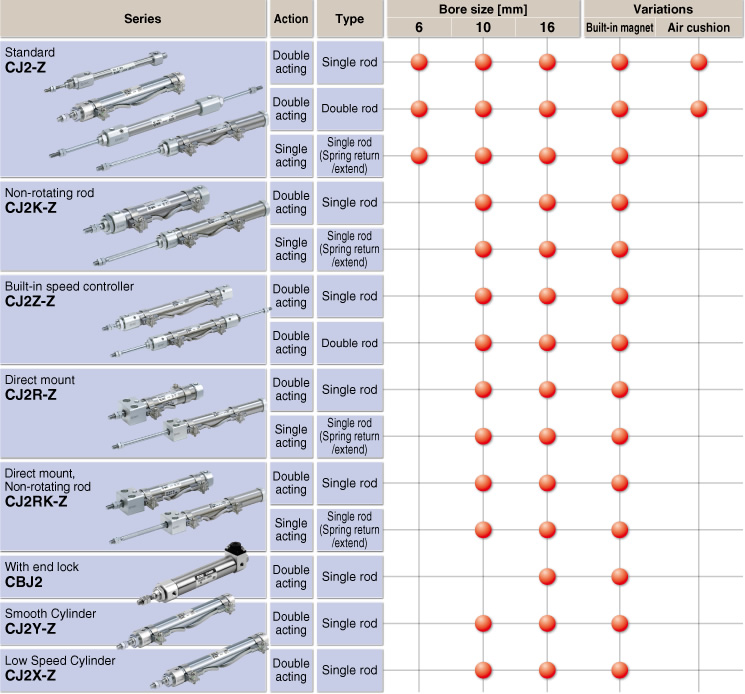

■Variations

∗: The air cylinder with end lock has the same shape as the current product.
∗: For details about the clean series, refer to the WEB catalog.
∗: Air cushion is only available for ø10 and ø16.
