ISO 13849-1 Certified/3-Port Solenoid Valve/Residual Pressure Release Valve with Detection of Main Valve Position VP/VG

Description

• Safety standard ISO 13849-1 certified (Corresponding to category2 to 4)
• With detection of main valve position
• It is possible to construct a redundant system easily
• Highly reliable construction
• Safety limit switch can be selected
• With soft start-up function (-X555)

Other Data :
> Safety Instructions

> 3/4/5 Port Solenoid Valves/Precautions
> Selection/Technical Data
>
Green Procurement (RoHS)

Product Number Check Download Catalogs

Technical Data

Features

■With main valve position detection function (Category 2)

The main valve position detection function is used to detect inconsistencies between input signals and valve operations.

Category 2: The safety function only requires the use of a single channel and is automatically checked.


■With easy-to-construct redundant system (Categories 3 and 4)

When the dual residual pressure release valve is used, if one of the valves fails to operate, the other one releases the residual pressure.

Category 3: The redundancy prevents the loss of the safety function when a single failure occurs. The safety function must be checked before each use. An accumulation of undetected faults can cause the loss of the safety function.
Category 4: The redundancy prevents the loss of the safety function when a single failure occurs. The safety function must be checked before each use. An accumulation of undetected faults does not affect the safety function. (Features a higher DC and MTTFd than Category 3)

* This product is to be used as a component of a safety system; the safety of the equipment as a whole cannot be guaranteed by this single unit alone.


■Highly reliable construction


■A variety of safety limit switches can be selected.


■With soft start-up function (-X555)


■Can be connected to modular type F.R.L. units

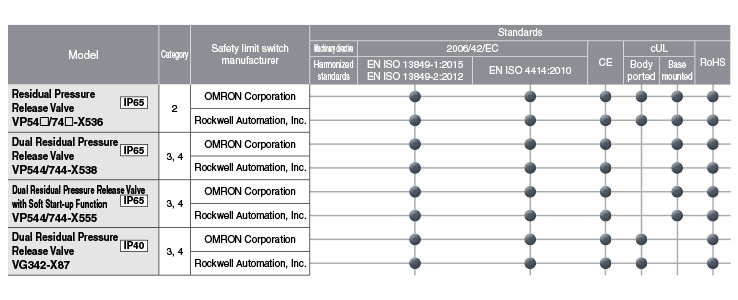

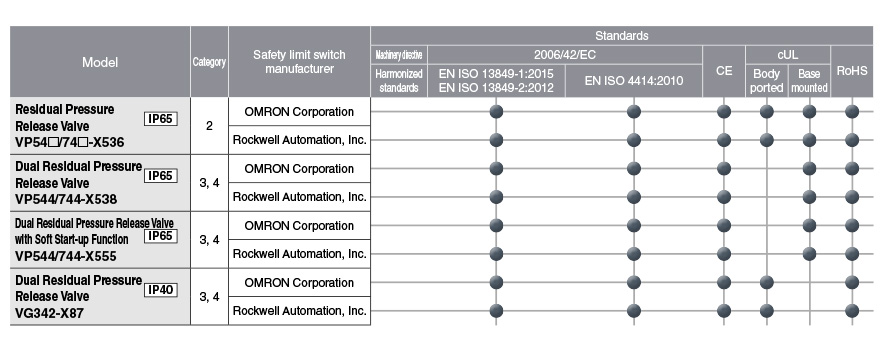

■Standards and Enclosure


■Series Variations
