4-Port Solenoid Valve/Cassette Type Manifold SJ1000/2000/3000

Description

• Low-profile cassette type with baseless structure
• Takes up minimal space with a body width of 6.5 mm (SJ1000),
 7.5 mm (SJ2000), or 10 mm (SJ3000)
• SJ1000, SJ2000, and SJ3000 valves can be mounted together.
• The multi-pin connector makes it easy to add or subtract stations or
 to exchange valves.
• One side solenoid
• 4-position, dual 3-port specifications are available.
• Manifold type no.: SS5J1, SS5J2, SS5J3

Other Data :
> Safety Instructions

> 3/4/5 Port Solenoid Valves/Precautions
> Selection/Technical Data
>
Green Procurement (RoHS)



Product Number Check Download Catalogs

Technical Data

Features

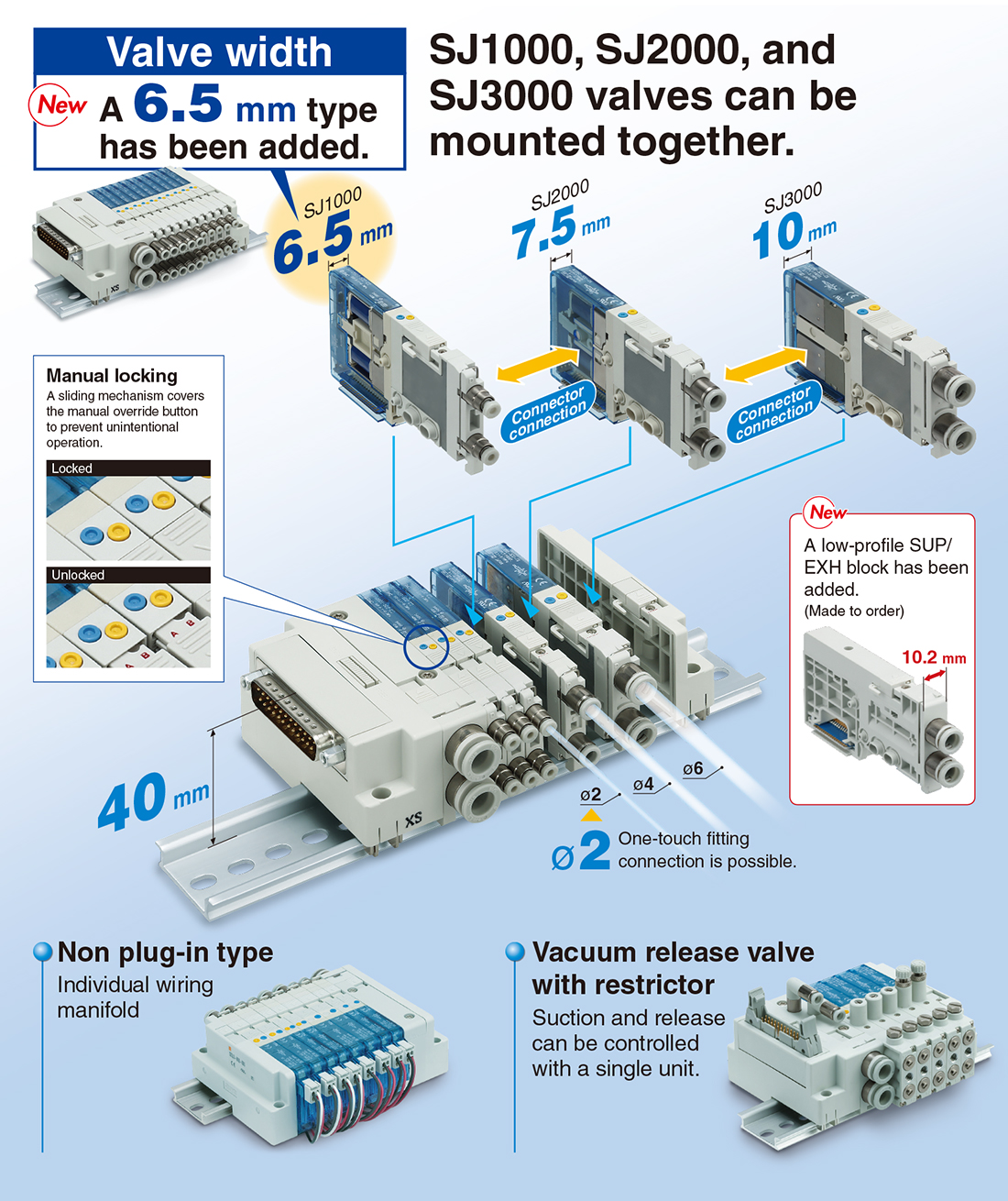

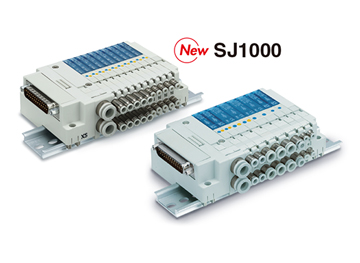

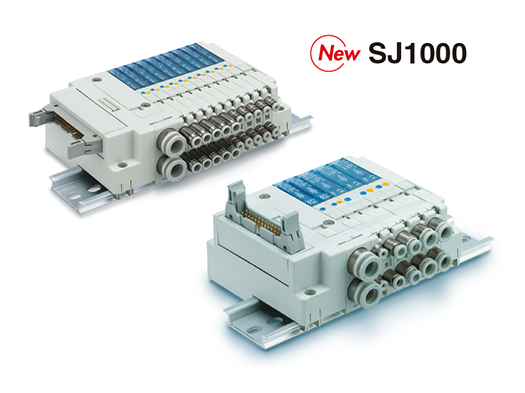

■The SJ1000 with a valve width of 6.5 mm has been added.
■SJ1000, SJ2000, and SJ3000 valves can be mounted together.


■Power consumption

0.15 W* (SJ3000 with power-saving circuit)
0.23 W* (SJ1000/2000 with power-saving circuit)
∗ Refer to the catalog for details.

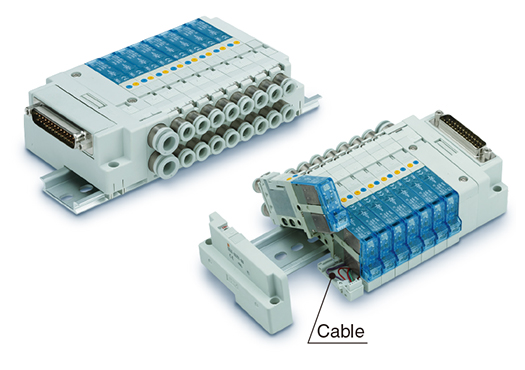

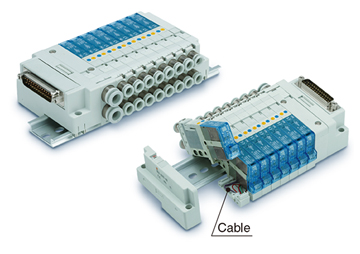

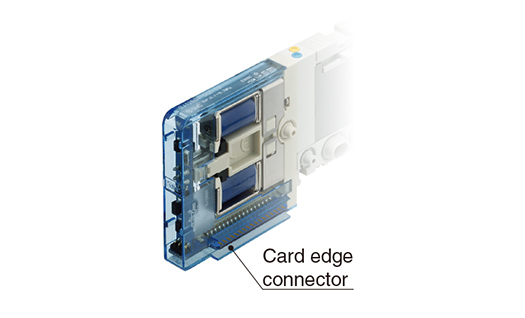

■Connector type (Card edge type)

SJ1000, SJ2000, and SJ3000 series valves can be mounted together.
• Easily increase or decrease the number of stations and easily replace valves
• The 34-pin connector allows for up to 16 stations with double solenoids or 32 stations with single solenoids.

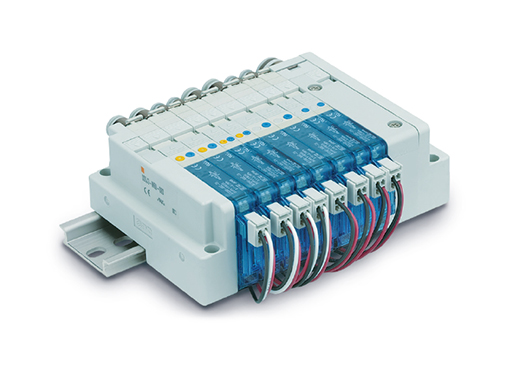

■Non plug-in individual wiring compliant


■Plug-in cable type manifold

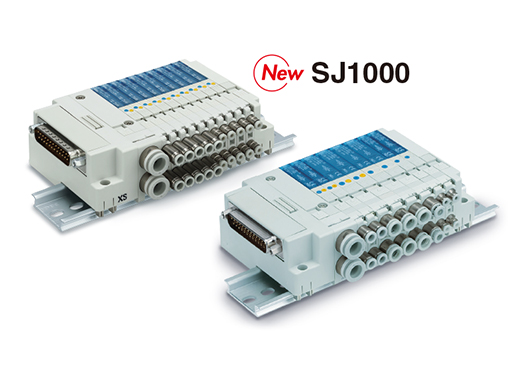

■D-sub connector

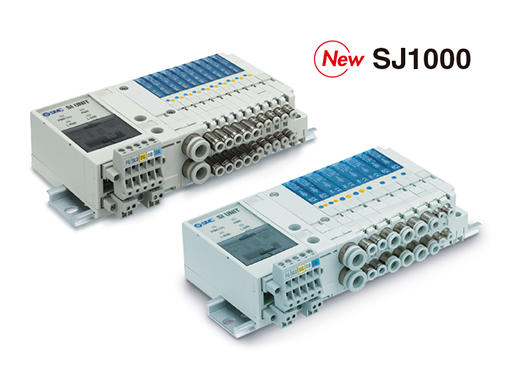

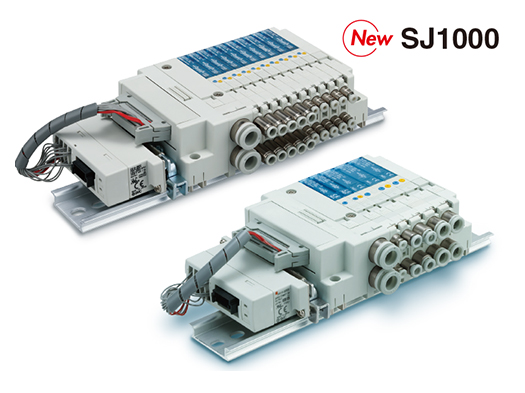

■EX180 Integrated type (for output) serial transmission system

∗ Connector type only


■Flat ribbon cable

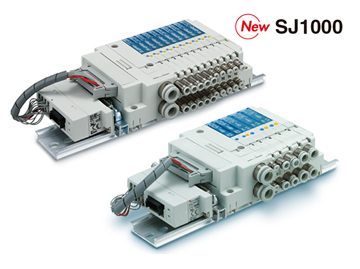

■EX510 Gateway type serial transmission system

∗ Connector type only

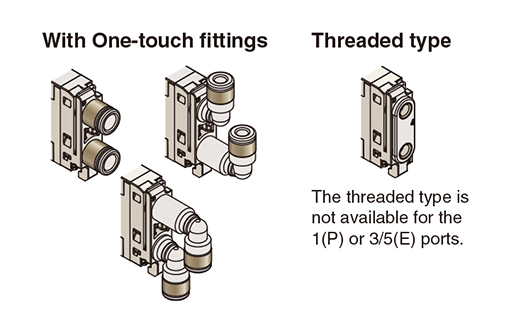

■Piping variations

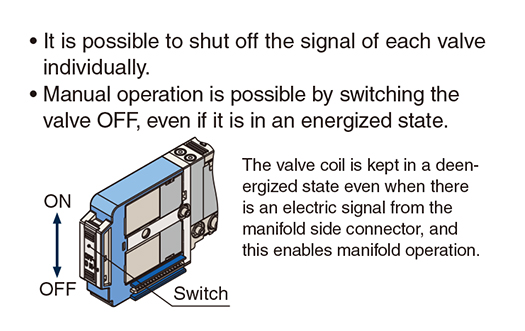

■With switch (Connector type)

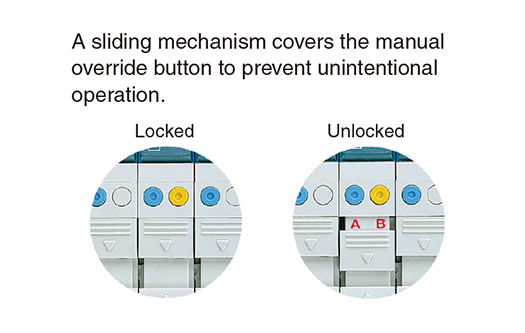

■Manual locking

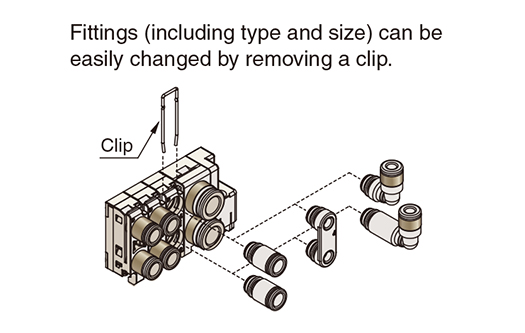

■Fittings are replaceable.

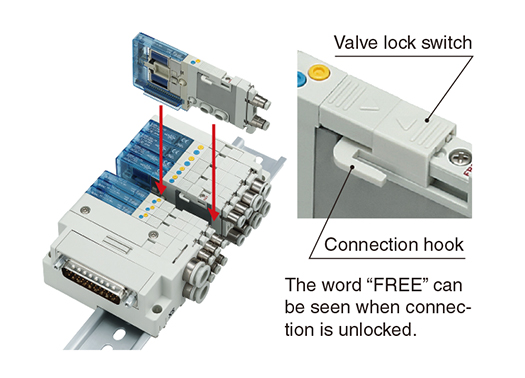

■Valve connection mechanism

Connection between valves can be secured using the valve lock switch.
Connection can be confirmed by checking to see whether the connection hook is inserted into the connection groove of the adjacent valve.

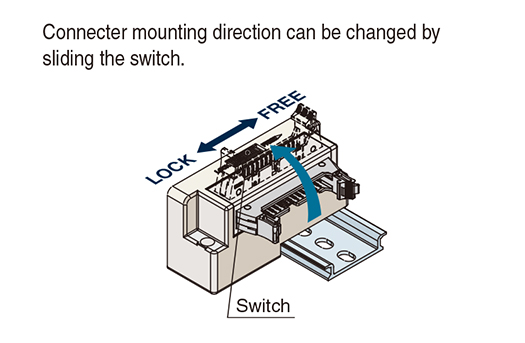

■Connector mounting direction

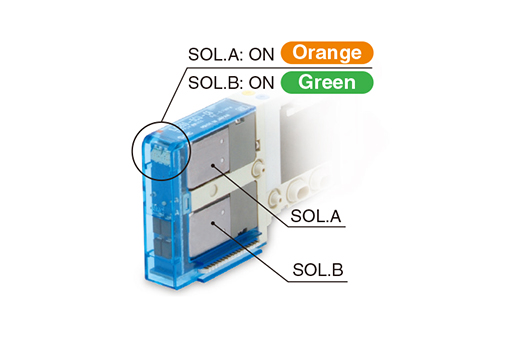

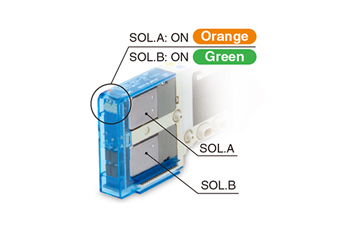

■Light indication

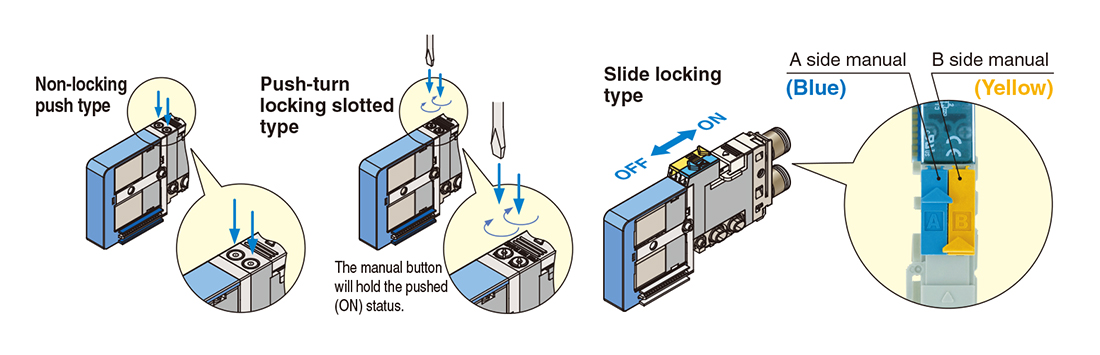

■Type of manual override

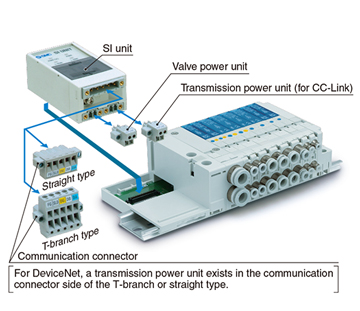

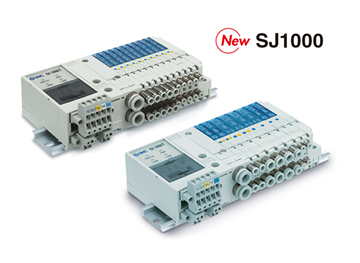

■EX180 Integrated type (for output) serial transmission system*

* Connector type only
• CC-Link (32 outputs), DeviceNet (16 or 32 outputs)

• The connector allows for easy attaching/detaching of the SI unit and wiring.
• Separated valve power unit and transmission power unit/Improved maintenance safety
• Select between a T-branch or a straight type communication connector

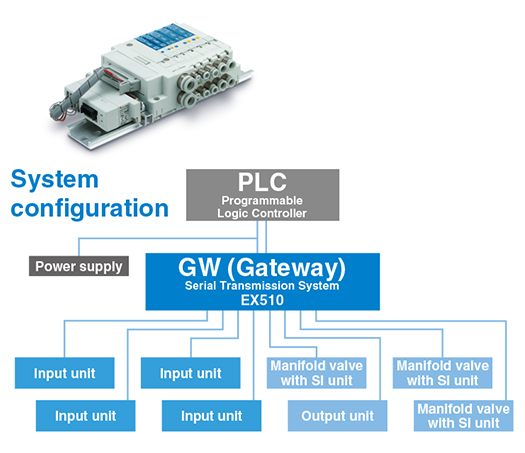

■EX510 Gateway type serial transmission system*

* Connector type only

• Max. 128 points (Input 64 points/ Output 64 points)
• All wires can be plugged into the connector units.
• CC-Link, DeviceNet, and PROFIBUS-DP compliant

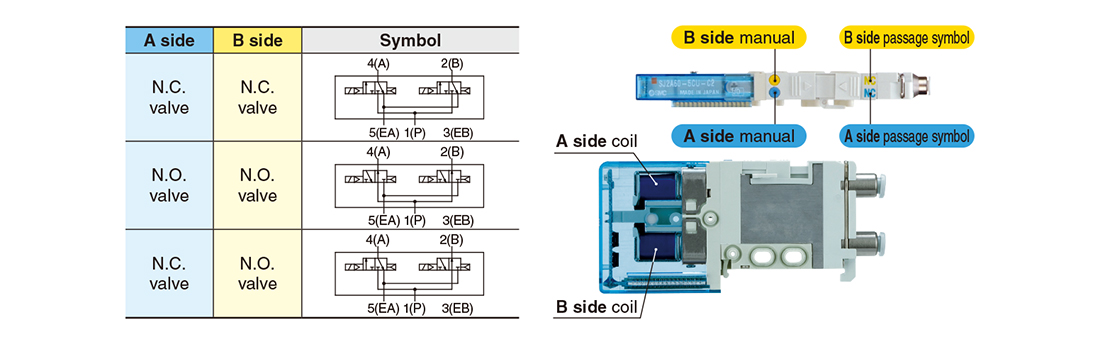

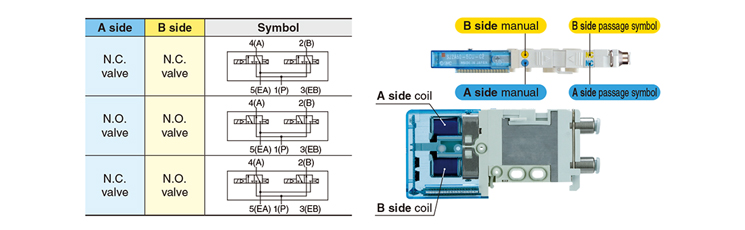

■4-position dual 3-port valve

• 3-port valves integrated into a single valve
• It is possible to control the 4(A) and 2(B) ports individually.
• Can be mounted on the same manifold as a 4-port valve
• 3 types of combinations are available.
• A label with the same colors as the manual override is attached to show the functions of the A side and B side.

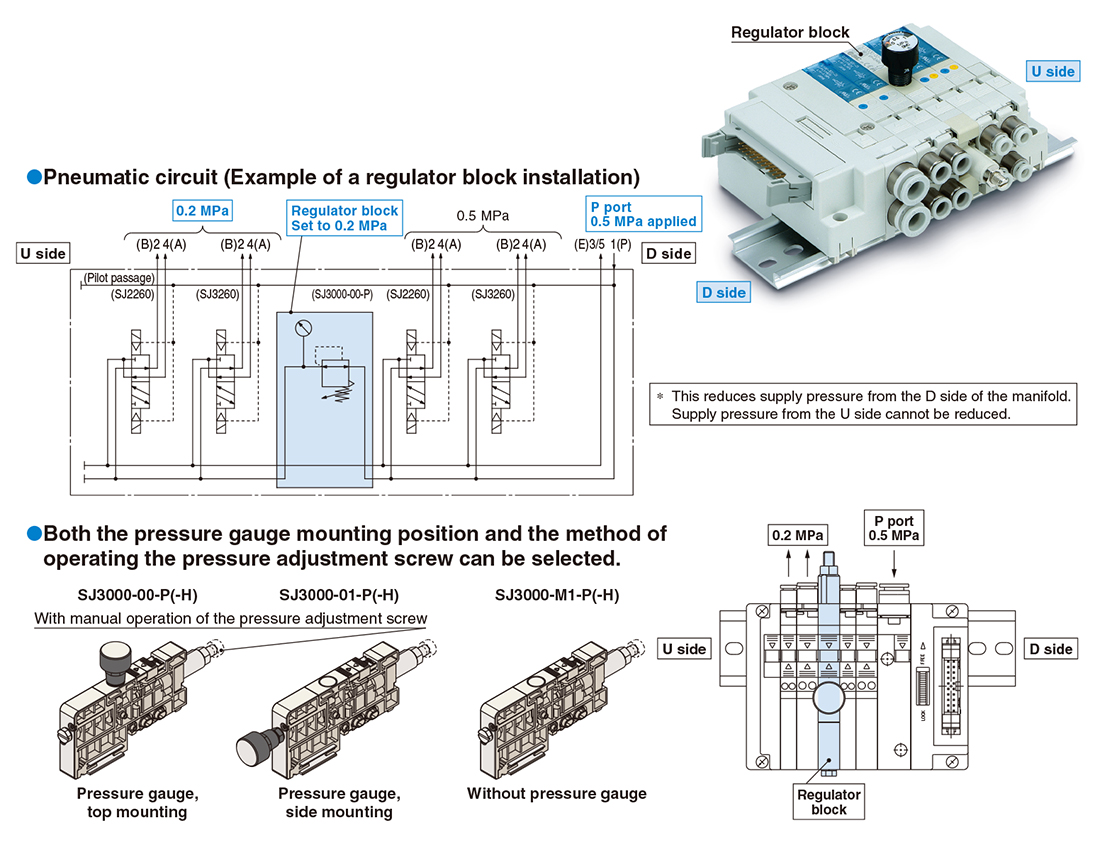

■Regulator block

This is a regulator block with the same width (10 mm) as the SJ3000.
Pressure supplied from the D side is used to reduce pressure in the manifold.
The U side valves are all depressurized by the regulator block.

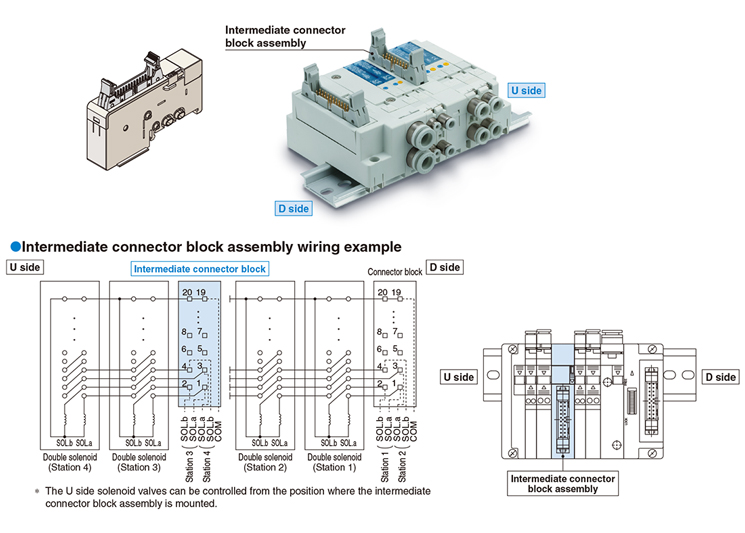

■Intermediate connector block assembly

This connector block can be used by inserting it into the middle of the manifold.
It can be used, for example, when you wish to separate electrical control of valves in the same manifold or when the number of control points is insufficient.

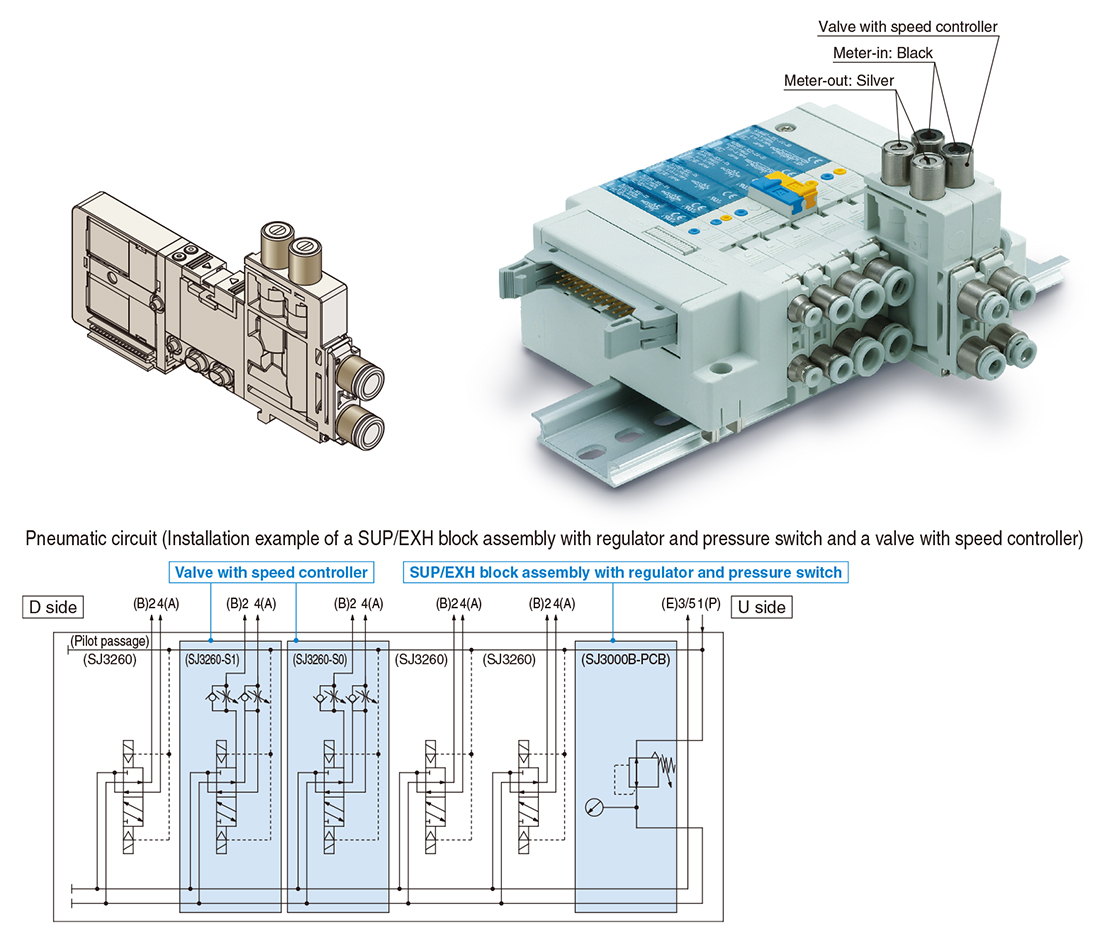

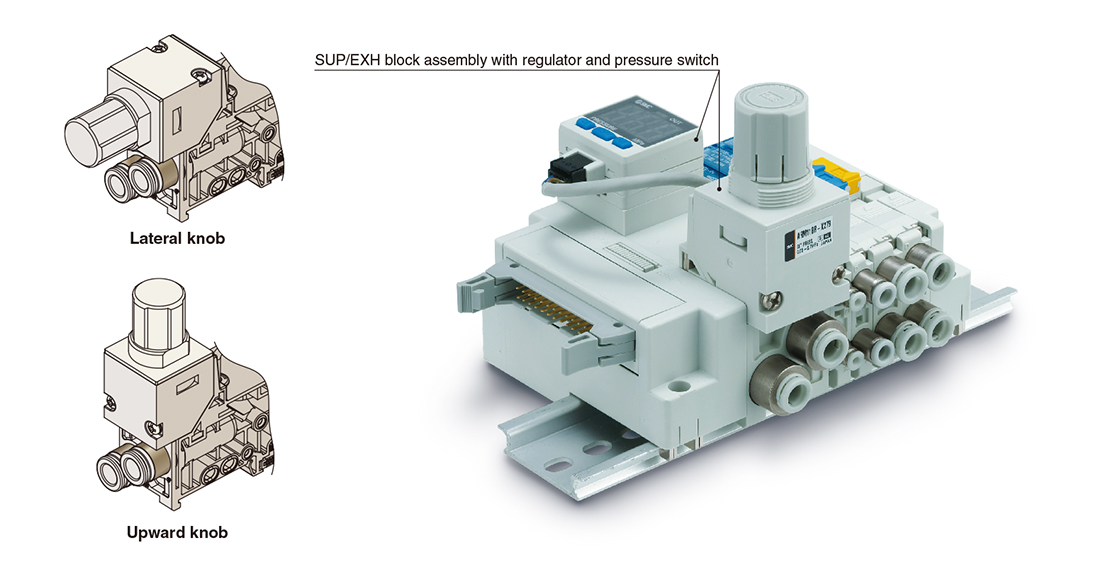

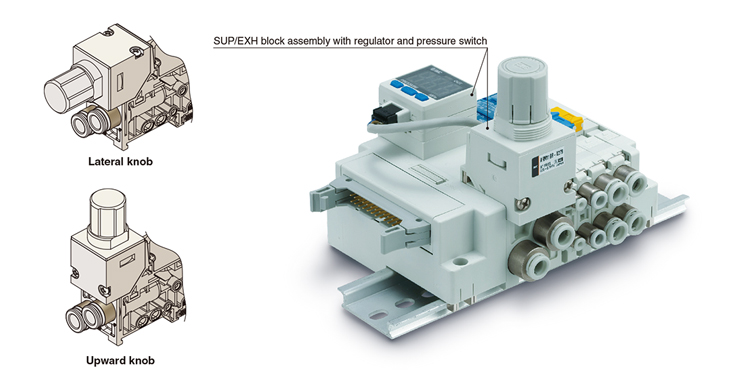

■SUP/EXH block assembly with regulator and pressure switch

This pressure regulator is intended to adjust the SUP pressure of the manifold.
Additionally, a pressure switch and pressure gauge can be mounted on it.


■Valve with speed controller

As a speed controller is built into this valve, the cylinder speed can be adjusted on the valve side.
2 types, meter-in and meter-out, are provided.

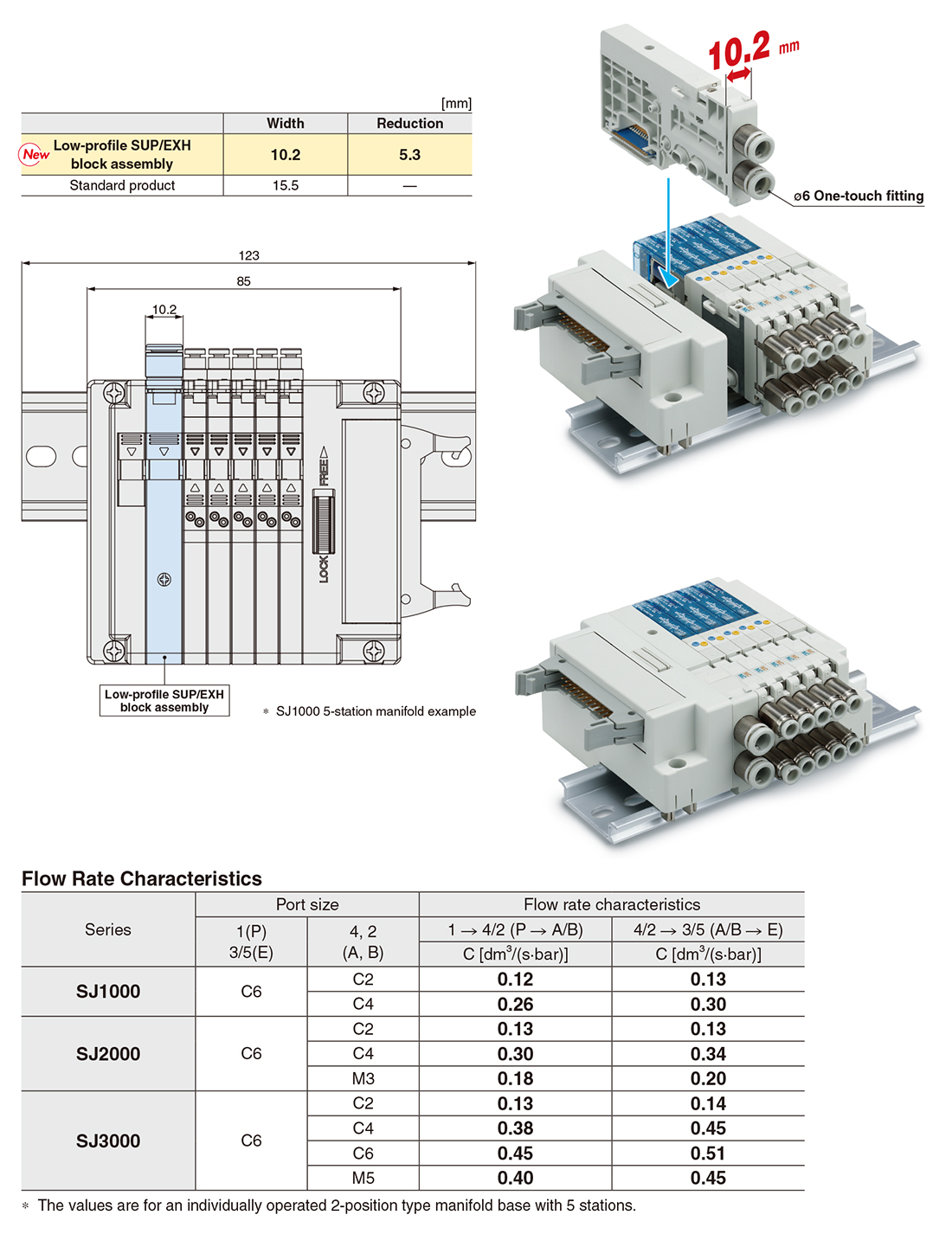

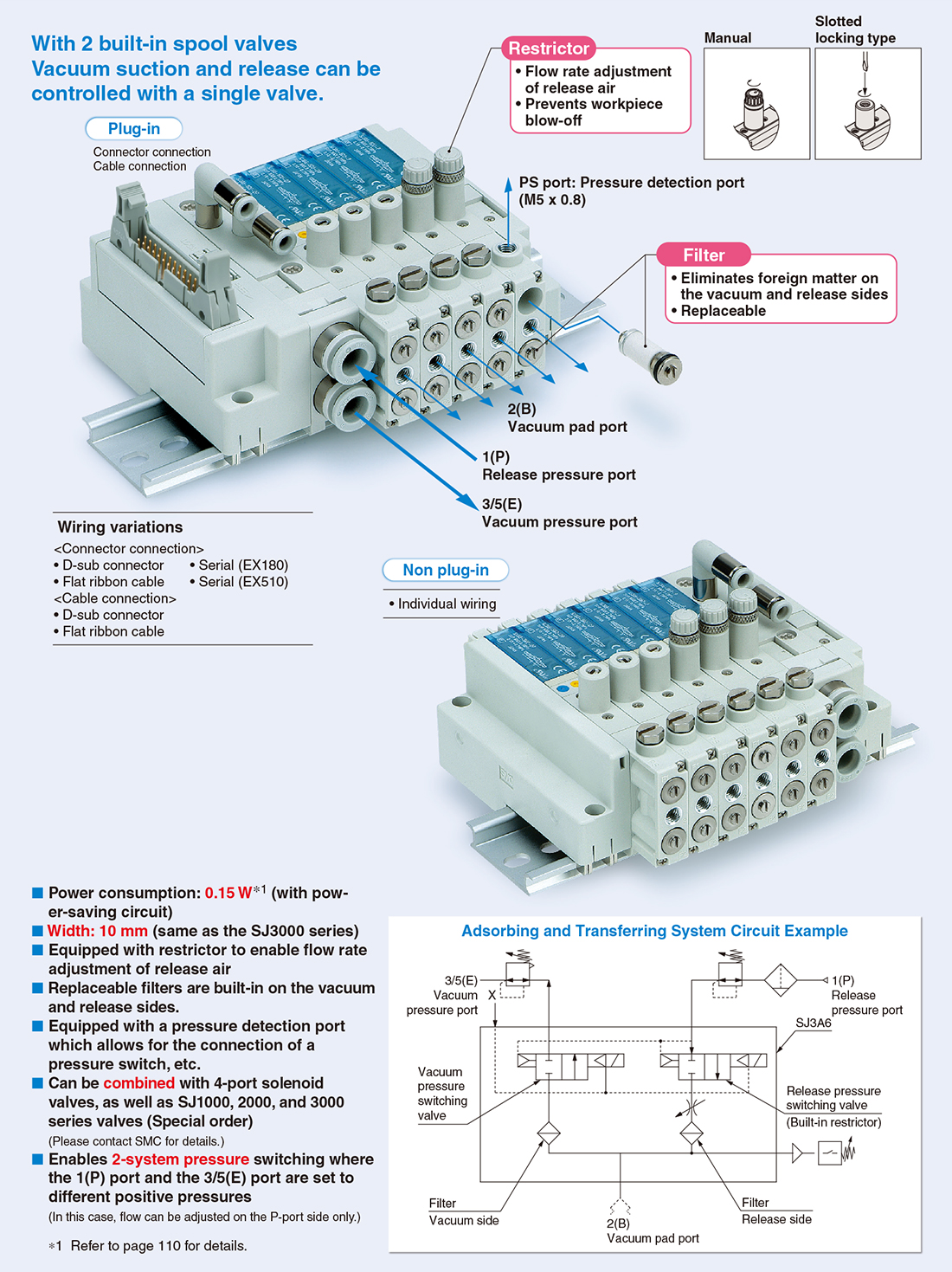

■Vacuum Release Valve with Restrictor SJ3A6 Series

The width dimension of the SUP/EXH block is only 10.2 mm, smaller than the 15.5 mm width of the standard product, which allows for the length of the entire manifold to be reduced.


■Vacuum Release Valve with Restrictor SJ3A6 Series
