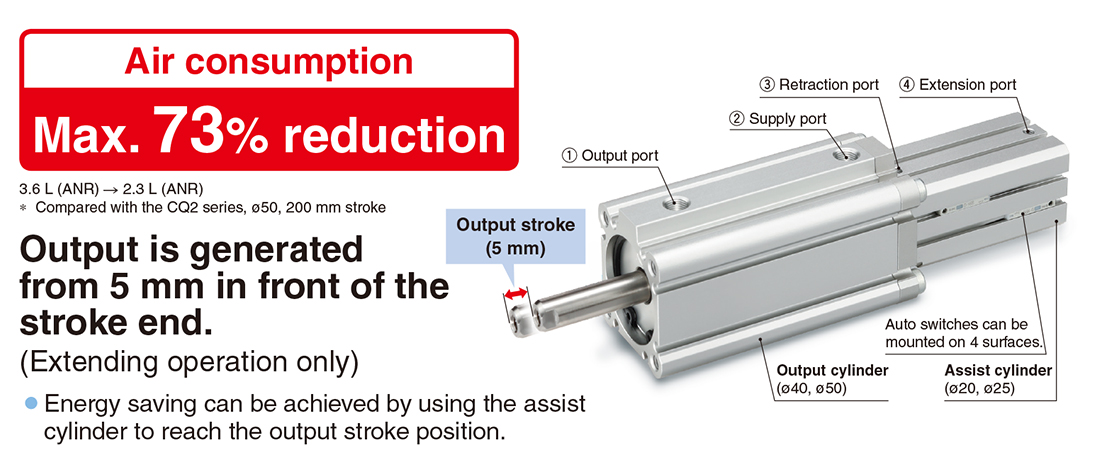

・Air consumption: Max. 73% reduction
3.6 L (ANR) → 2.3 L (ANR), Compared with the CQ2 series, ø50, 200 mm stroke
・Output is generated from 5 mm in front of the stroke end. (Extending operation
Energy saving can be achieved by using the assist cylinder to reach the output
・Smooth operation even when output is generated
・Small auto switches can be mounted on 4 surfaces of the assist cylinder.
・The CQ2 series rod flange type is mountable.
・Optimal for applications such as press fitting and clamping that require force at
the stroke end
・Controllable by a single solenoid valve in the same way as a conventional cylinder
■Smooth operation even when output is generated
■The CQ2 series rod flange type is mountable.
■Controllable by a single solenoid valve in the same way as a conventional cylinder
■Output that instantaneously rises
Set output reached in 0.1 s
