Air Cylinder MB/MDB

Description

・Weight has been reduced by changing the shape of the rod cover
 and head cover. Max. 10% lighter
・Part numbers with a rod end bracket and/or pivot bracket are available.
 (It is not necessary to order a bracket for the applicable cylinder
 separately.)
・With auto switch (MDB-Z series: MDB, MDBW, MDBK, MDBKW, MDBB,
 MDB□Q)

Other Data :
> Safety Instructions

> Actuators/Precautions
> Auto Switches/Precautions
> Model Selection/Technical Data
> Quick Selection Table
> Simple Specials
> Made to Order Common Specifications
> Green Procurement (RoHS)

Product Number Check

Simple Specials

Made to Order Common Specifications

Download Catalogs

Technical Data

Features

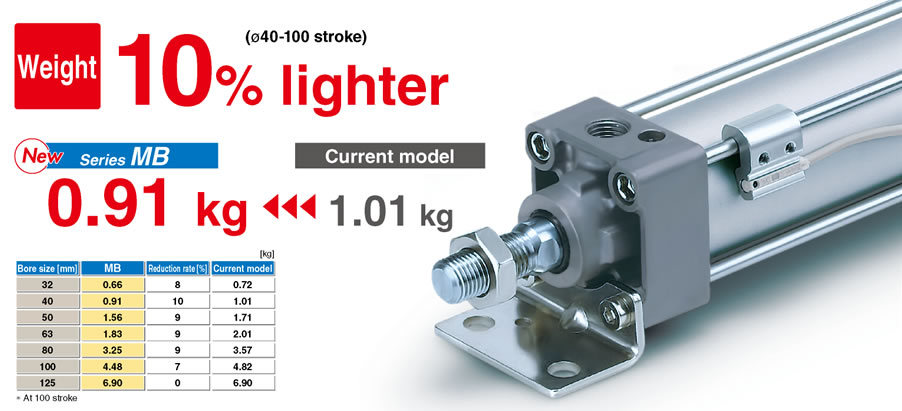

■Reduced weight by changing the shape of the rod cover and head cover.
  • Weight 10% lighter (ø40-100 stroke)
  • 0.91 kg (New) ←1.01 kg (Existing model)


■Non-rotating rod type added. New

  • Series MBK-Z (Single rod)
  • Series MBKW-Z (Double rod)

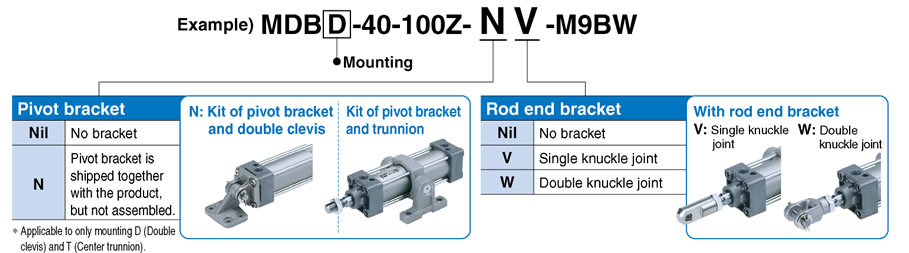

■Part numbers with rod end bracket and/or pivot bracket available

Not necessary to order a bracket for the applicable cylinder separately

Note) Mounting bracket is shipped together with the product, but not assembled.


■Various mounting bracket options

  • Suitable mounting brackets can be selected for the installation condition.
  • Improved amount of mounting freedom


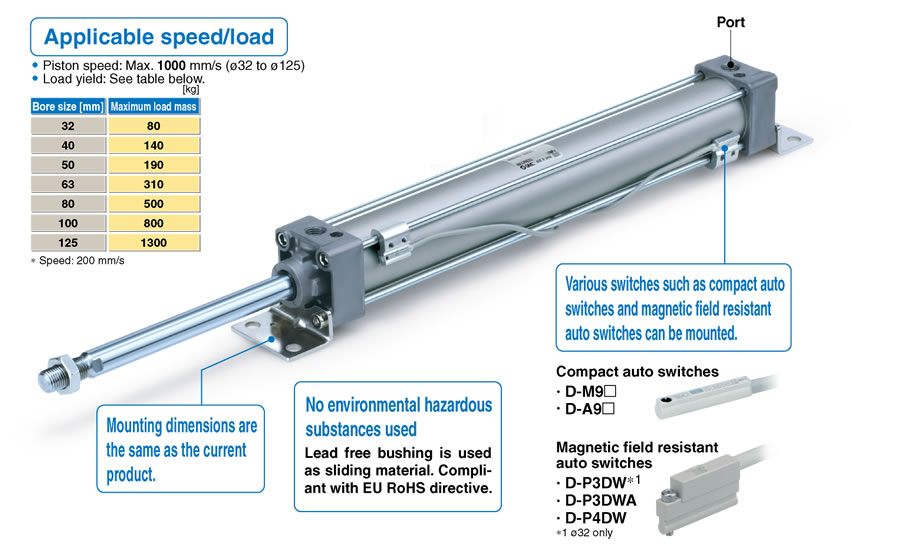

■Other Features


■Variations

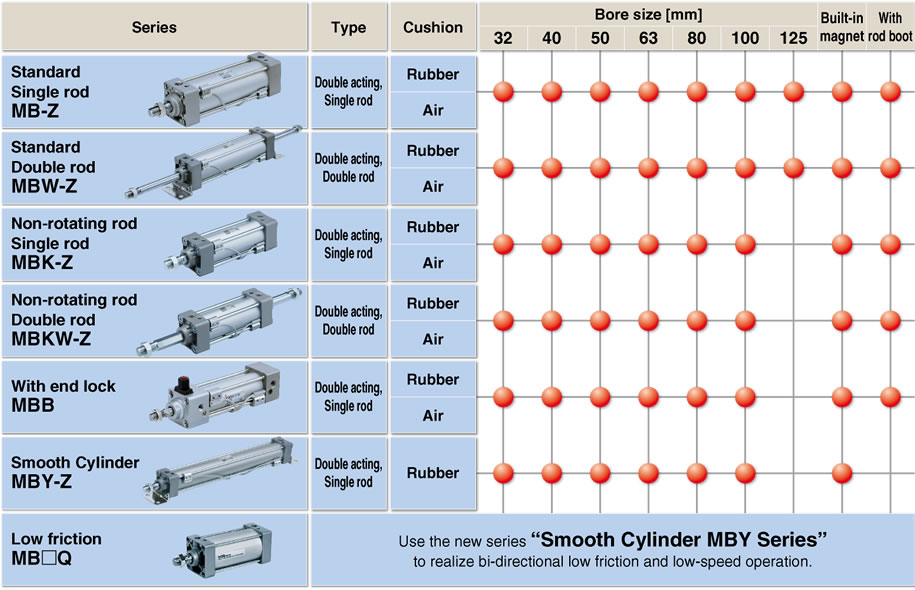

Series Variations
