Direct Operated 2/3 Port Isolated Valve LVMK20/200

Description

・Low particle generation, Oil-free, Metal-free
・Fluids: Air, Water, Deionized water, Diluent, Cleaning fluid
・Isolated structure: The solenoid drive body is separated from
　the fluid area by a block seal.

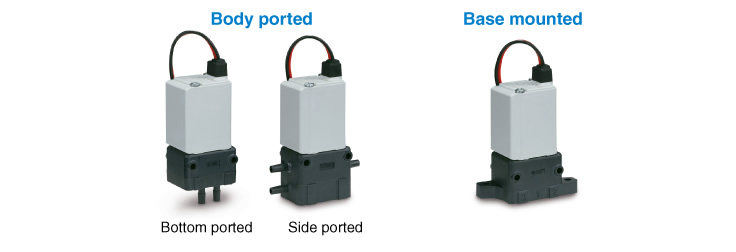

・Easy piping
・Minimal dead space
・Flow adjustment is not required.

Other Data :
> Safety Instructions
> 2 Port Solenoid Valves for Fluid Control Precautions
> Green Procurement (RoHS)

Product Number Check

Model Selection Software

Download Catalogs

Categories: , ,

Technical Data

Features

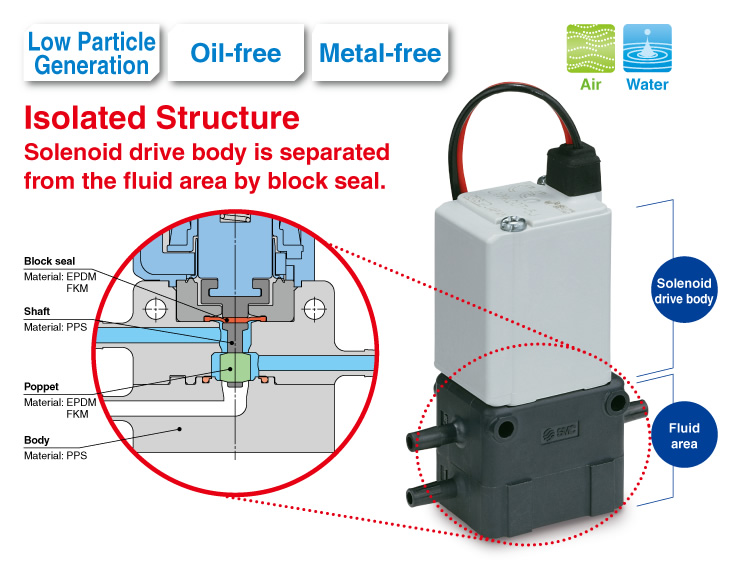

■Low Particle Generation, Oil-free, Metal-free

・Isolated structure

　Solenoid drive body is separated from the fluid area by block seal.

・Easy piping

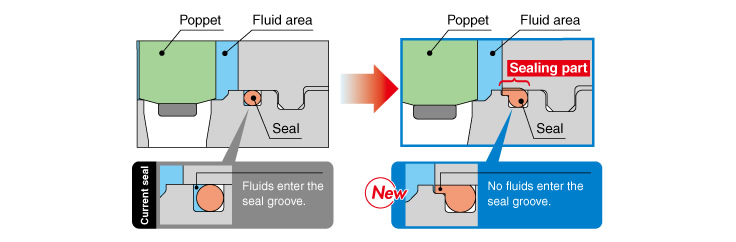

・Minimal dead space

　No fluids enter the seal groove.

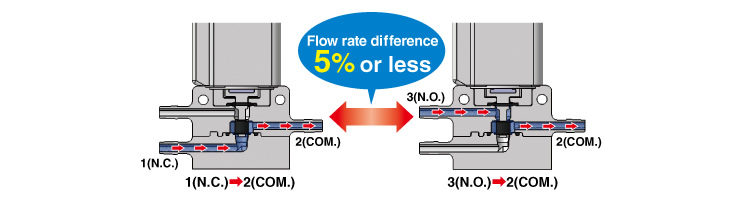

・Flow adjustment not required

　As the flow rate difference is 5% or less, no flow rate adjustment is required at inlet and outlet side.

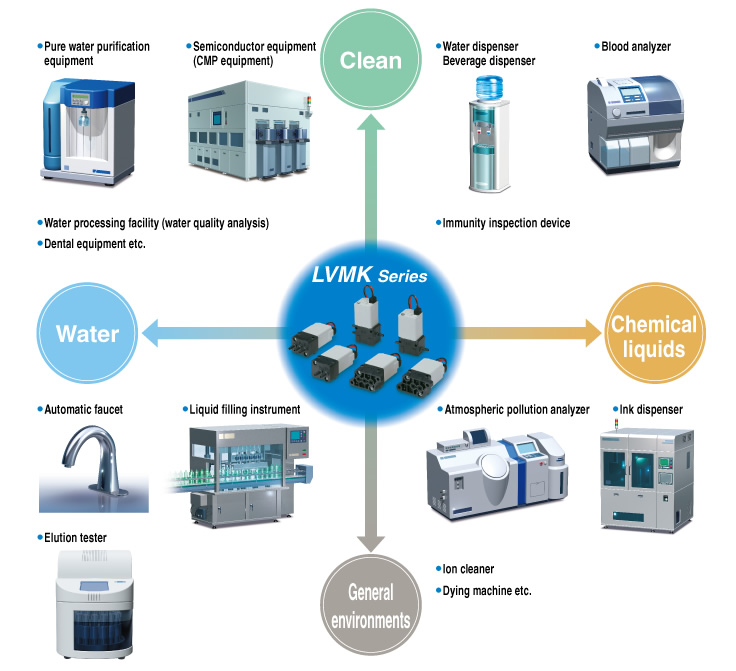

■Application Examples

Oil-free, clean, low particle generation applications

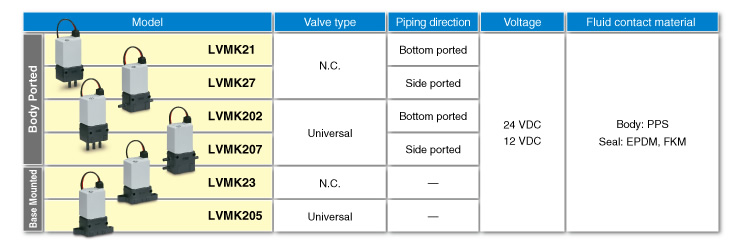

■Variations
