Direct Operated/Pilot Operated 2-Port Solenoid Valve JSX/JSX□

Description

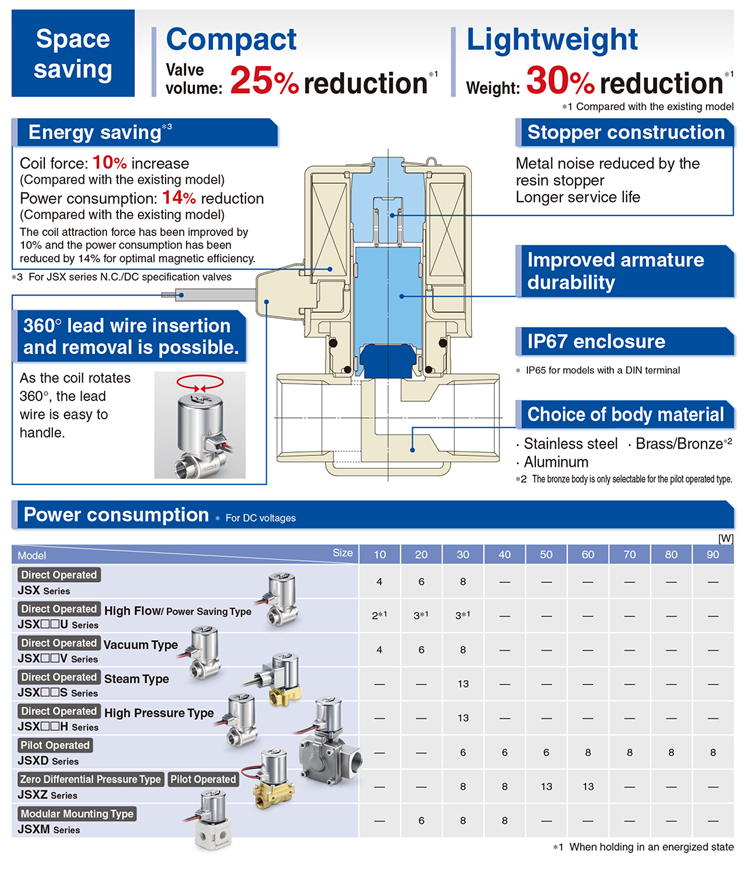

・Improved environmental resistance due to the stainless steel coil cover [IP67 enclosure]
・Body material: Stainless steel, Brass/Bronze, Aluminium
・Environmental resistance: IP67 enclosure (IP65 for models with a DIN terminal)
・Space saving
 Compact: Valve volume reduced by 25% (Compared with the existing model),
 Lightweight: Weight reduced by 30% (Compared with the existing model)
・Energy saving
 Coil force: 10% increase (Compared with the existing model),
 Power consumption: 14% reduction (Compared with the existing model)
・360º lead wire insertion and removal is possible.

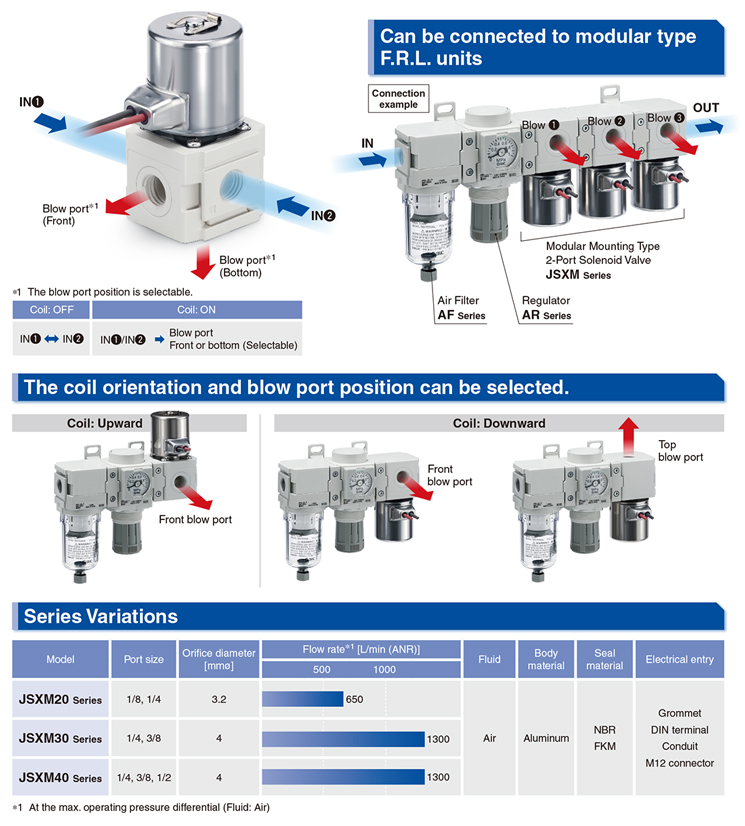

・Can be connected to modular type F.R.L. units (JSXM)

Other Data :
> Safety Instructions
> 2 Port Solenoid Valves for Fluid Control Precautions
> Model Selection/Flow Rate Characteristics
> Series Variations/Selection Procedure/Solenoid Valves List/Air Operated Valves List

> Green Procurement (RoHS)

Product Number Check

Download Catalogs

Technical Data

Features

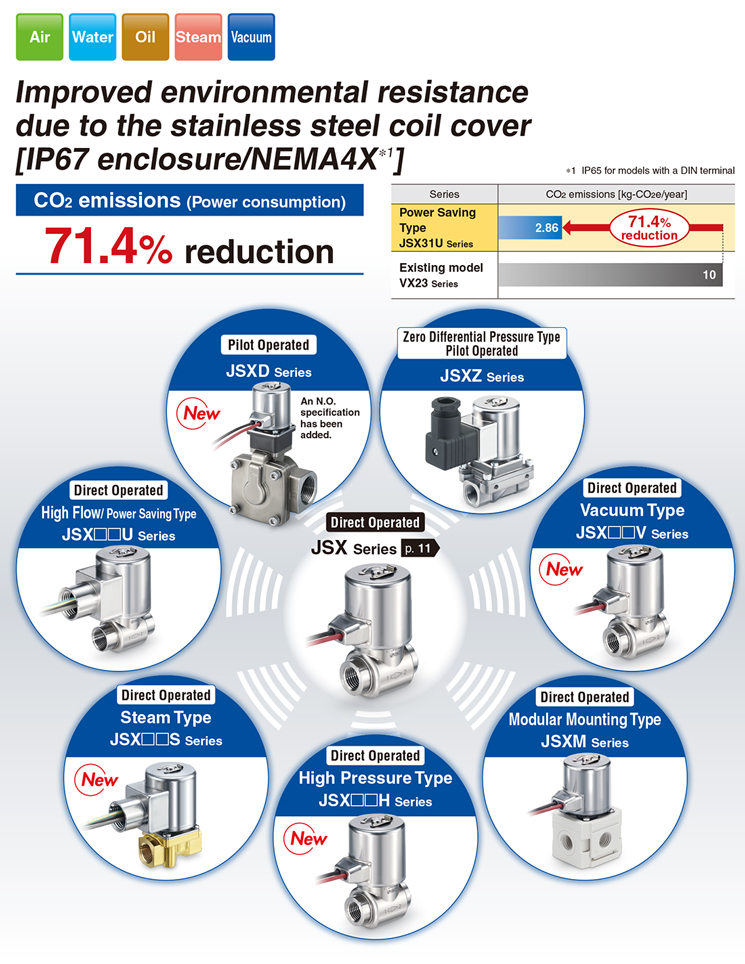

■Improved environmental resistance due to the stainless steel coil cover [IP67 enclosure]


■Space saving
Compact: Valve volume reduced by 25% (Compared with the existing model),
Lightweight: Weight reduced by 30% (Compared with the existing model)


■Full-wave rectifier type (AC specification: Insulation type Class B)

・Improved durability

Extended service life due to the special construction
(Compared with the existing shading coil)

・Reduced buzzing noise

Due to being rectified to DC by the full-wave rectifier

・Due to being rectified to DC by the full-wave rectifier
* Class B, N.C. valve (Compared with the existing model)

 9.5VA → 8VA (JSX20/JSXD60, 70 Series)
12VA → 9.5VA(JSX30/JSXD80, 90 Series)

・Improved OFF response

Specially constructed to improve the OFF response when operated with high viscosity fluids such as oil

・Low-noise construction

Specially constructed to reduce metal noise during operation


■Electrical Entry Variations

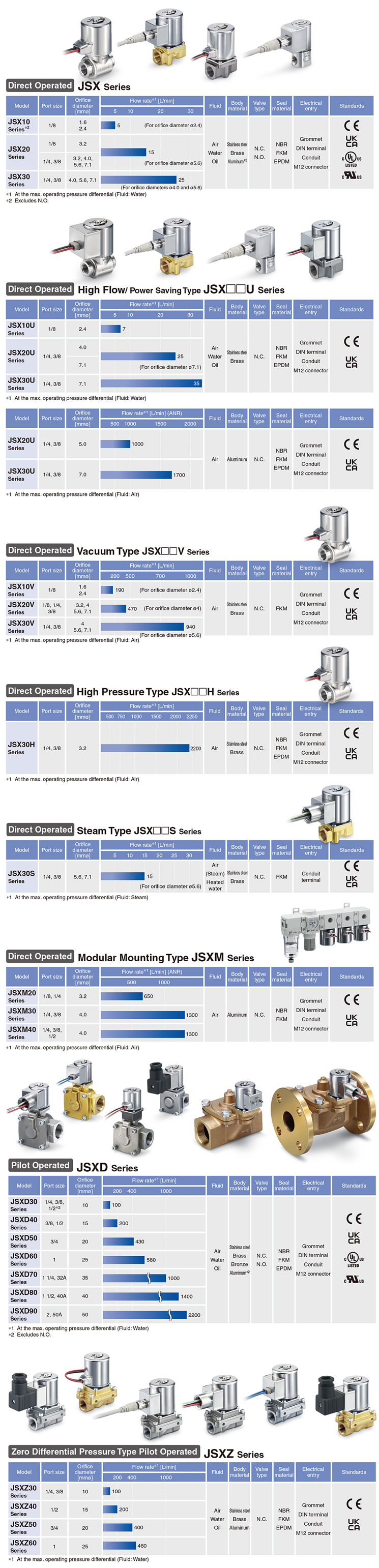

■Series Variations


■Modular Mounting Type 2-Port Solenoid Valve JSXM Series


■Simple Specials System
