Diaphragm Valve for General Applications AK

Description

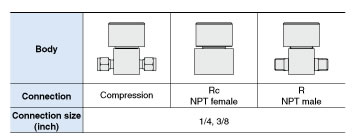

・Rc, R, and NPT connections have been added to the series.
・For a wide variety of applications from semiconductor to general
・Cleaned for O2 service
・Compact and lightweight due to the shortening of the actuator (AK3542/4542)
・M5 actuation port (AK3542/4542)
・Compact and lightweight due to the modifying of the knob design (AK3652/4652)
・The knob features a unique design that combines a scalloped round knob with a
　raised
　rectangular section to provide two choices of gripping. (AK3652/4652)

Other Data :
> Safety Instructions
> Process Gas Equipment/Common Precautions
> Series Variations
> Valve and Regulator Recommendations
> Technical Data/Glossary of Terms
> Green Procurement (RoHS)

Product Number Check

Download Catalogs

Categories: , ,

Technical Data

Features

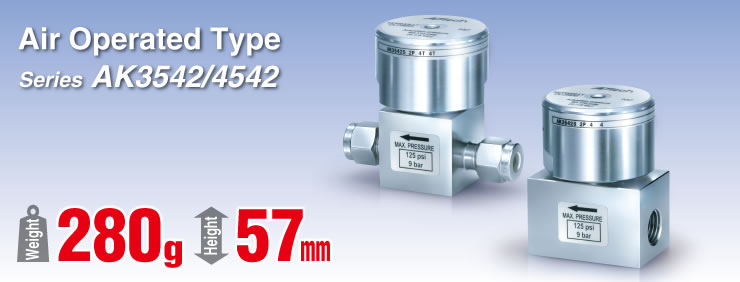

Air Operated Type ⁄ Series AK3542,4542
  • Compact and lightweight by making the actuator shorter
  • M5 actuation port

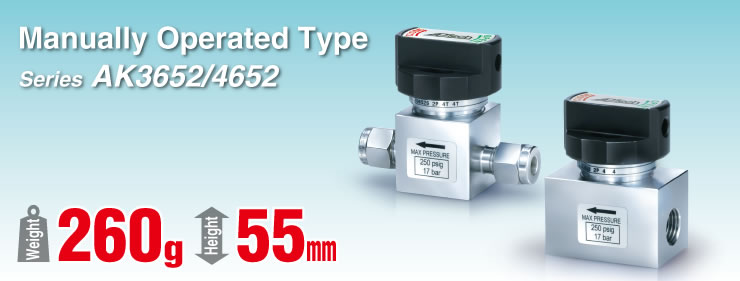

Manual ⁄ Series AK3652,4652

  • Compact and lightweight by modifying the knob design

  • The knob is a unique design that combines a scalloped round knob with a raised rectangular section to provide two choices of gripping.

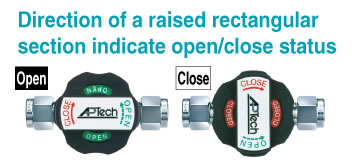

  • Actuation is 90 degrees open to closed with a cutout window, on both sides of raised rectangular section, providing visual status of open or closed state.
Body material

316 SS
Passivation internals

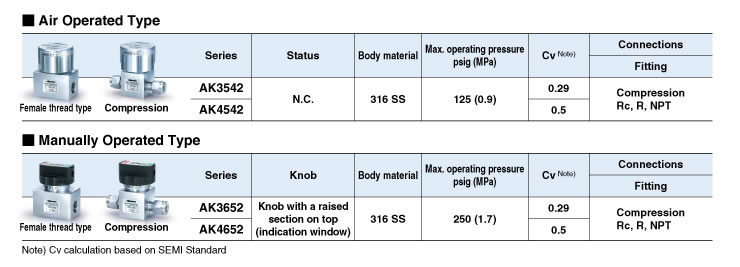

■Various configurations available

■Various
