Compact Slide MXH

Description

・Allowable moment improved by up to 240%
・With new high rigidity linear guide Allowable moment improved
・The weight has been reduced by incorporating a new high rigidity linear guide and piston. Weight: 19% reduction (ø20-10 stroke)
・Piping is possible in 3 directions.

Other Data :
> Safety Instructions
> Actuators/Precautions
> Auto Switches/Precautions
> Model Selection/Technical Data
> Simple Specials
> Made to Order Common Specifications
> Green Procurement (RoHS)

Product Number Check

Simple Specials

Made to Order Common Specifications

Download Catalogs

Categories: , ,

Technical Data

Features

With new high rigidity linear guide

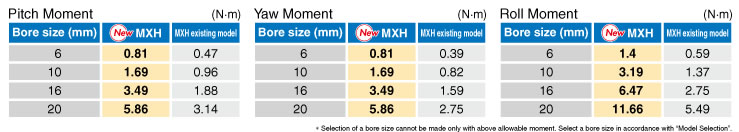

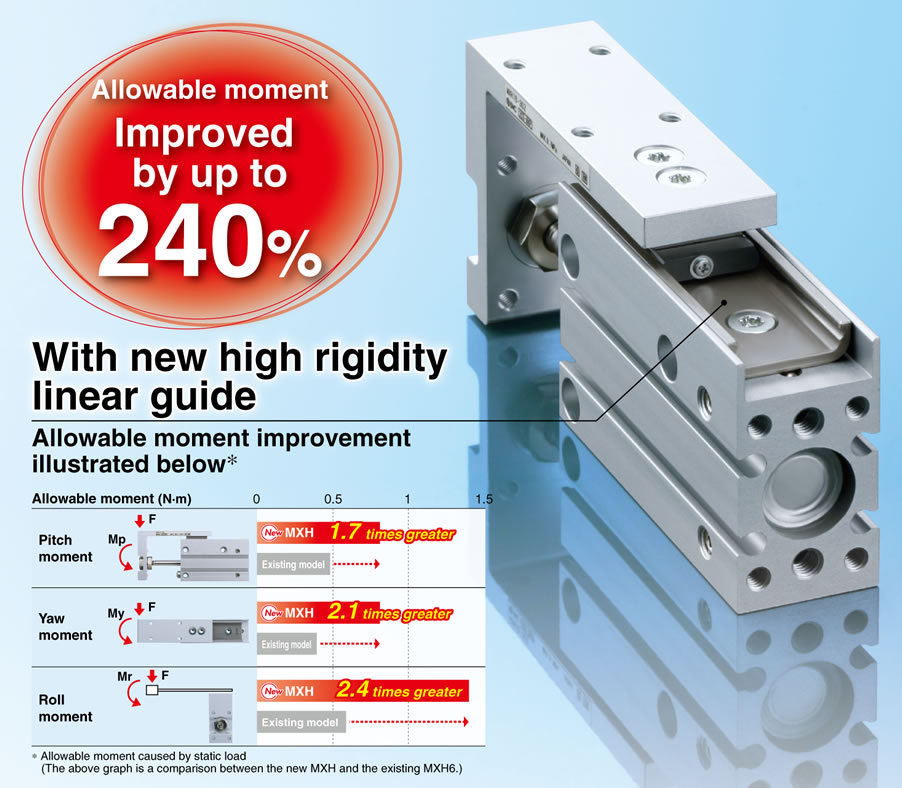

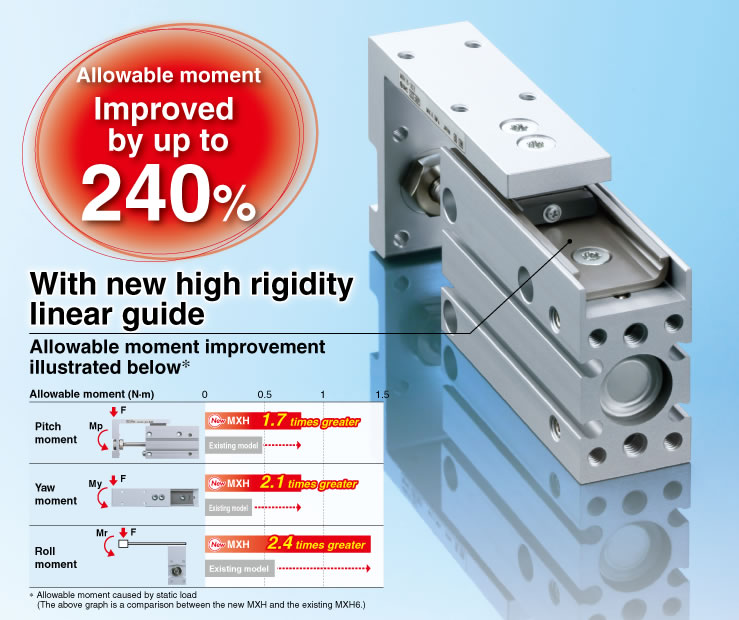

■Allowable moment improved by up to 240%

High allowable moment

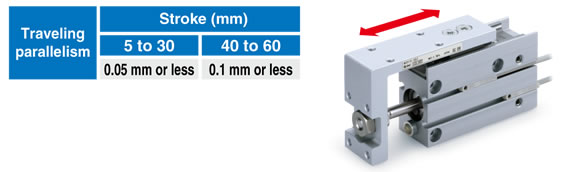

Traveling parallelism is the same as the existing model.

Deflection at the extended position of the table is the same as the existing model.

Small auto switches capable

(D-M9□, D-A9□)

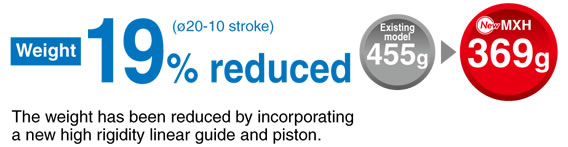

■The weight has been reduced by incorporating a new high rigidity linear guide and piston.

Weight 19% reduced (ø20-10 stroke)

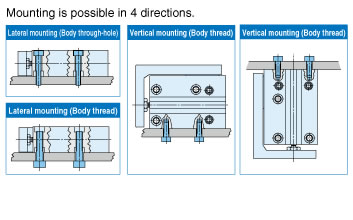

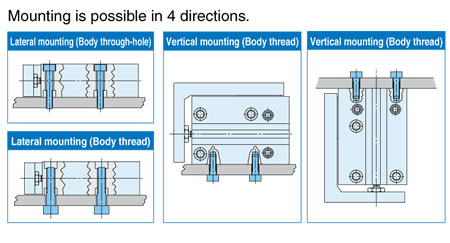

■Mounting is completely interchangeable with existing model.

Dimensions including workpiece mounting dimensions and cylinder mounting dimensions are the same as the existing model.

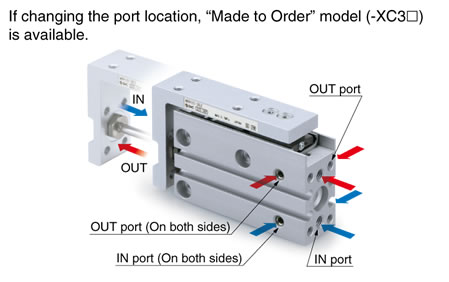

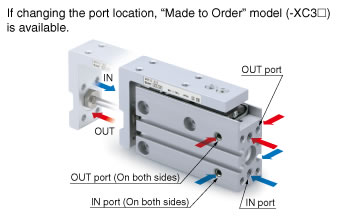

■Piping is possible in 3 directions.

■Application Example

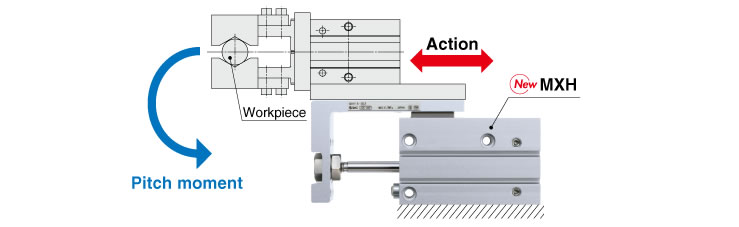

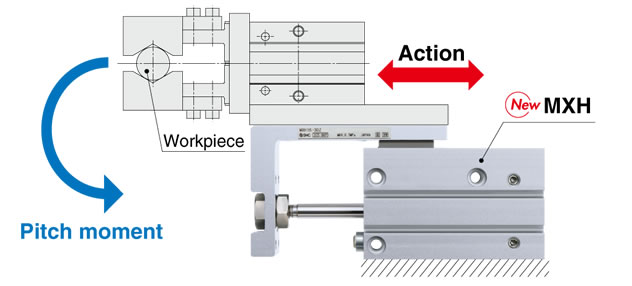

Useful when long stroke/travel is required

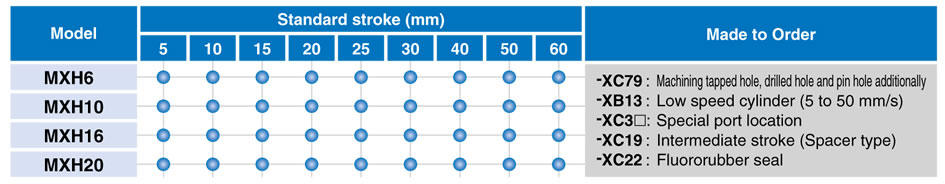

■Series Variations

Related products
