4.5-Stage Bellows Pad (Vacuum Suction Cup) ZP2


・For use where there is no space for a buffer (spring type)
・For workpieces with inclined adsorption surfaces

Other Data :
> Safety Instructions

> Vacuum Equipment/Precautions
> Vacuum Pads/Precautions
> Series Variations/Model Selection
> Applicable Pad List/Adapter Buffe No.
> Green Procurement (RoHS)

Product Number Check

Model Selection Software

Download Catalogs

Technical Data

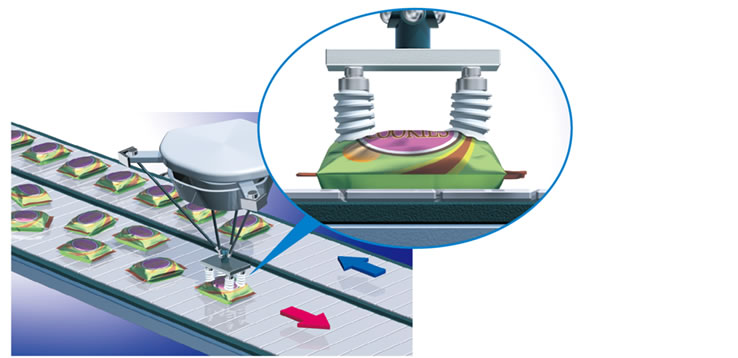

・For adsorbing workpieces flowing at high speeds
・Follows various shapes of workpieces.
・Pad material: Silicone rubber(Rubber hardness: A40, A50, A60)
・Pad diameter: ø15, ø20, ø30, ø40, ø46

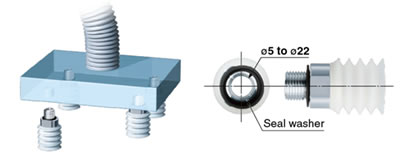

Short thread type

Large opening size (short thread type): ø5 to ø22
For vacuum blower pumps with high suction flow rates

Short thread type
