3-Port Solenoid Valve S070

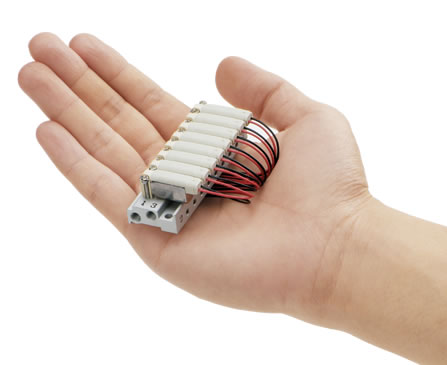

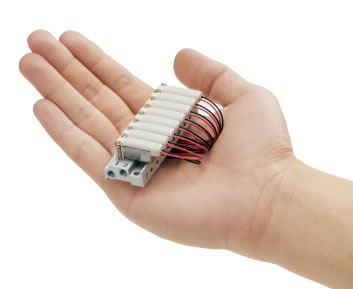

• 7 mm wide compact solenoid valve manifold
• Weight of valve alone: 5 g

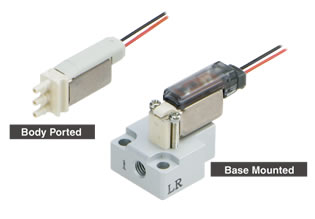

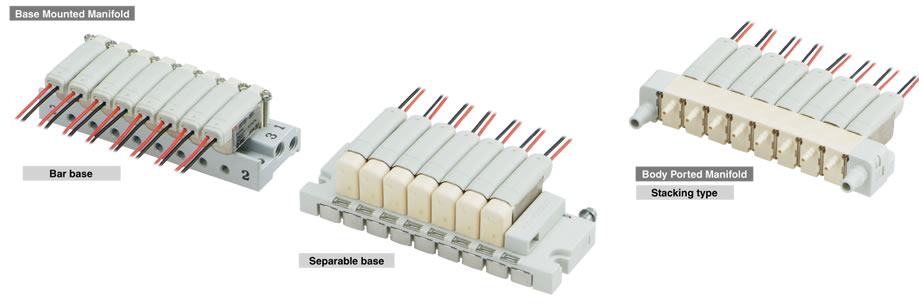

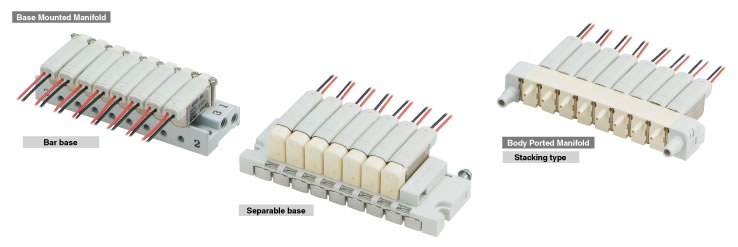

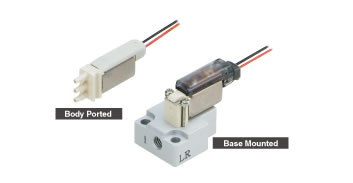

• Single unit specifications, base mounted manifolds, and body ported manifolds
 can be selected.
• Manifold type no.: SS073

Other Data :
> Safety Instructions

> 3/4/5 Port Solenoid Valves/Precautions
> Selection/Technical Data
Green Procurement (RoHS)

Product Number Check Download Catalogs

Technical Data


■Valve width 7 mm,
Weight 5 g (single unit valve)

■Power consumption 0.35 W (Standard),
0.1 W (With power saving circuit)

■Operation noise 38 dB (A) or less

■Sonic conductance: C 0.060 [dm3/(s·bar)]

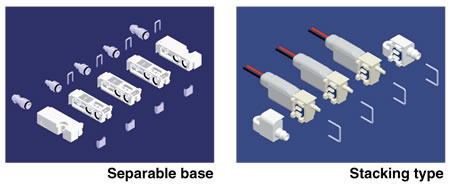

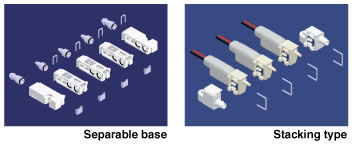

■Stacking type manifold


■Single Unit
