Vacuum/Release Unit VQD1000-V

Description

• Applicable to 0603 chips
• Response speed: 13 msec (at the time of 500 mm*) /18.5 msec (at the time of
　1000 mm*)
• Smooth workpiece removal with no overshoot
• There is no need for timing adjustment of switchback between vacuum and positive pressure.
• A throttle circuit is not required for release air.
• Suction filter: ZFC050 (Made to order)
* Distance from the unit to the work area

Other Data :
> Safety Instructions
> 3/4/5 Port Solenoid Valves/Precautions
> Selection/Technical Data
> Green Procurement (RoHS)

Product Number Check Download Catalogs

Features

Features

■Adaptable to 0603 chip

■Response speed
13 msec（at 500 mm^*）/18.5 msec（at 1000 mm^*）
* Distance from the unit to the work area

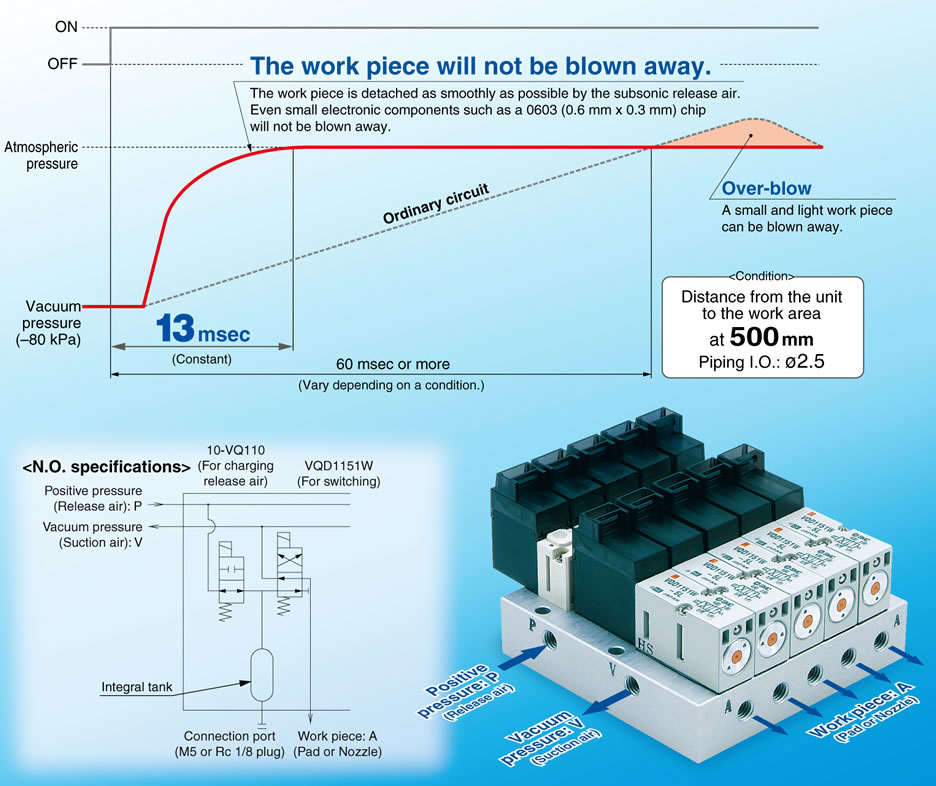

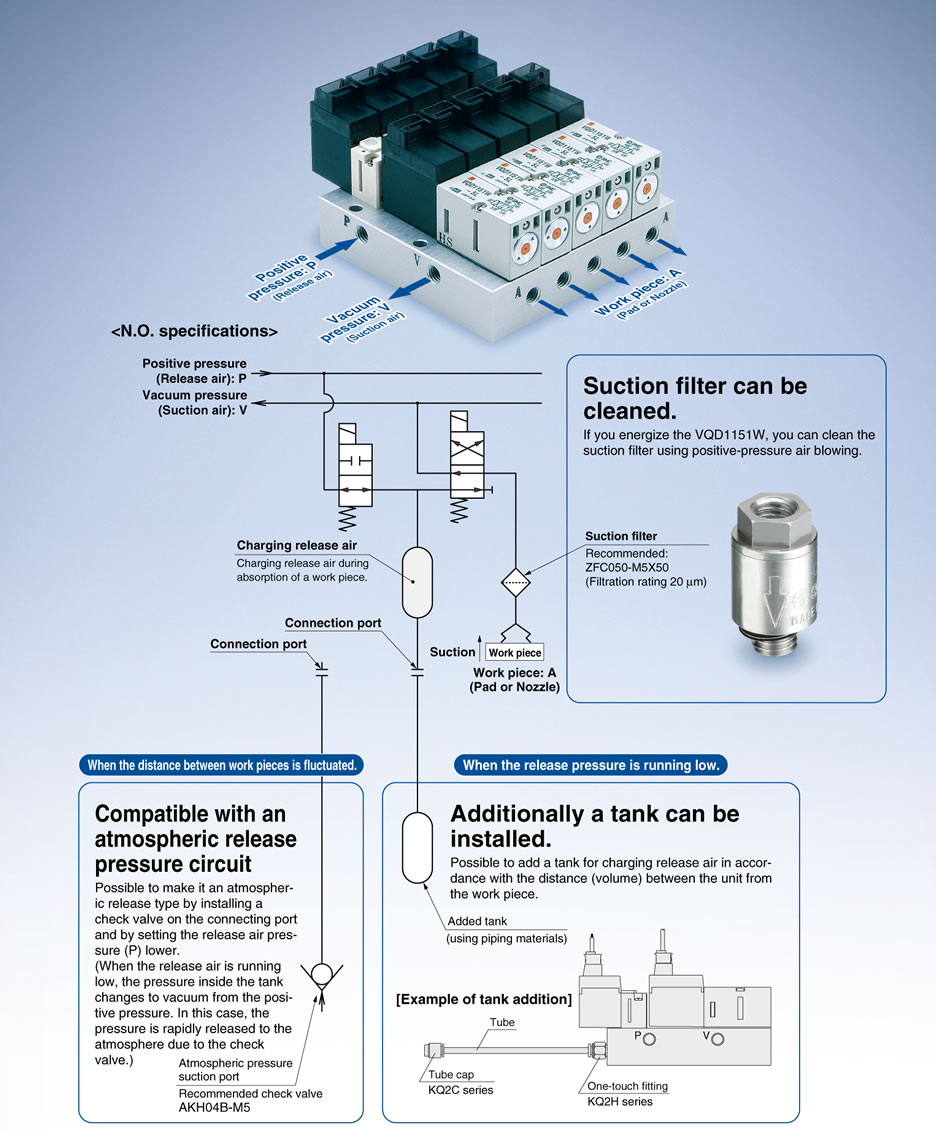

■Smooth detachment of a work piece without over-blow

The work piece will not be blown away when the air is released.

■No need to adjust the timing when switching between vacuum and positive pressure. (single signal control)

■No need to design a restrictor circuit for release air.

■N.O. (Vacuum absorption type when de-energized) and N.C. (Vacuum shutoff type when de-energized) specifications are available.
