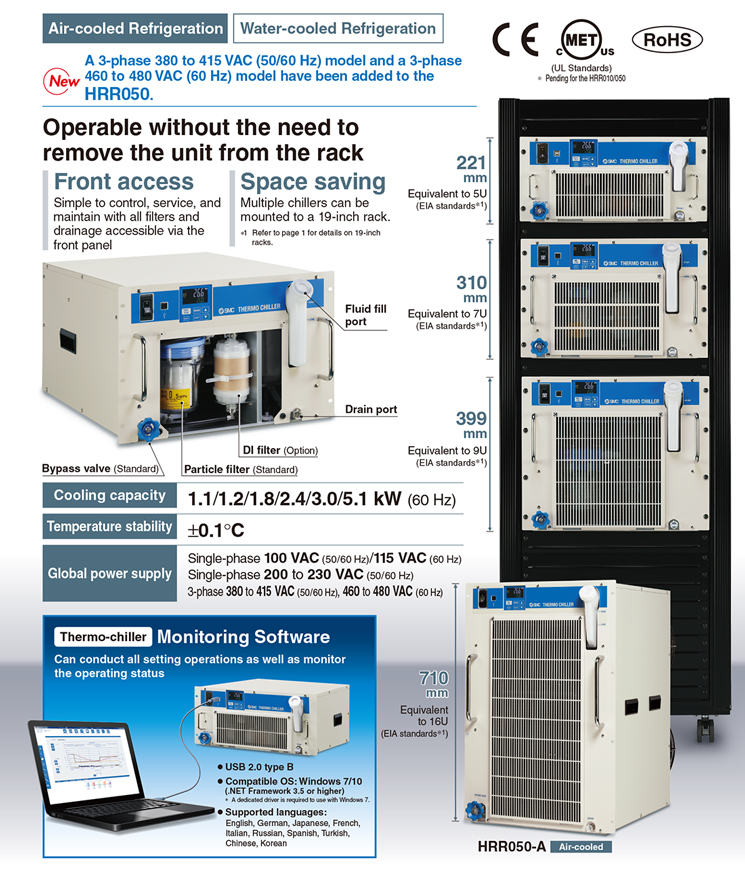

Thermo-chiller/Rack Mount Type HRR


・Operable without the need to remove the unit from the rack
 Front access: Simple to control, service, and maintain with all filters
 and drainage accessible via the front panel
・Space saving: Multiple chillers can be mounted to a 19-inch rack.
・Cooling capacity: 1.1/1.2/1.8/2.4/3.0/5.1 kW (60 Hz)
・Temperature stability: ±0.1℃
・Global power supply:
 Single-phase 100 VAC (50/60 Hz)/115 VAC (60 Hz)
 Single-phase 200 to 230 VAC (50/60 Hz)

Other Data :
> Safety Instructions
> Temperature Control Equipment/Precautions
> Features/Series Variations
> Technical Data
> Temperature Control Equipment Warranty
> Green Procurement (RoHS)

Product Number Check

Model Selection Software

Download Catalogs

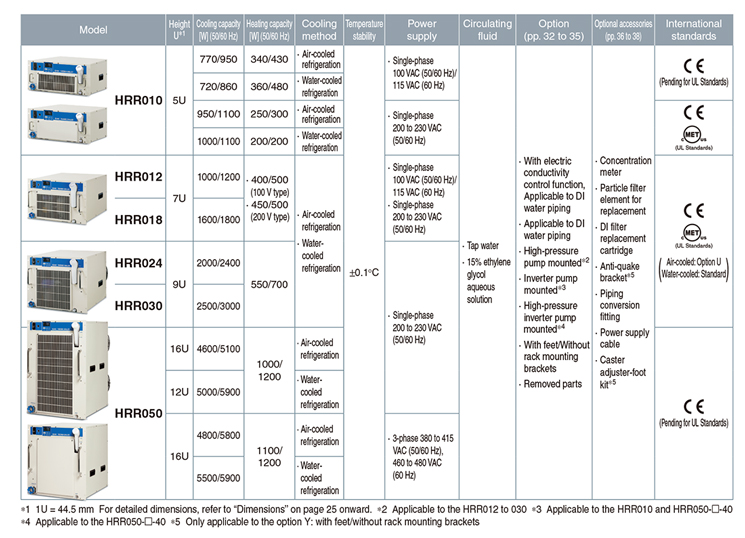

Technical Data


■Operable without the need to remove the unit from the rack

■Front Access

■Space Saving

■Caster Adjuster-foot Kit (Optional accessory)

Applicable for installation in locations other than 19-inch racks. This is a set of unfixed casters and adjuster feet stop.

■Temperature stability: ±0.1ºC

A precision temperature control method which utilizes expansion valves and temperature sensors allowed for the realization of a product with a high temperature stability of ±0.1°C.

■Self-diagnosis function and alarm code display

Display of 28 types of alarm codes Operation is monitored at all times by the integrated sensor.
The applicable alarm code (28 types) is displayed after self-diagnosis.

■Menu for maintenance schedule

When it is time for periodical checks of the pumps, fan motor, dustproof filter, etc.,
a maintenance code will be generated as a reminder. Helpful for facility maintenance

■Displaying screen for operating conditions

Thermo-chiller internal temperature, pressure, etc., can be displayed.

■With heating function

As the heating method uses discharged heat, a heater is unnecessary.
The heating function is effective in maintaining a constant temperature, particularly in the winter when the ambient temperature is low.

■Communication functions

Serial communication (RS-232C/RS-485) and contact input/output signals (2 inputs and 3 outputs)
are equipped as standard. This allows for communication with the user’s equipment and system construction, depending on the application.

■Inverter specification mechanical sealless pump (HRR010 option HRR050-□-40)

■Power supply (24 VDC) available


■Application Examples

■Global Supply Network

SMC has a comprehensive network in the global market.

We now have a presence of more than 560 branch offices and distributors in 83 countries and regions worldwide. With this global network, we are able to provide a global supply of our substantial range of products and high-quality customer service. We also provide full support to local factories, foreign manufacturing companies, and Japanese companies in each country.

■Circulating Fluid/Facility Water Line Equipment
