Low Profile Air Gripper MHF2


・Height dimension reduced to approximately 1/3
・Low profile design that reduces moment generation
・Short, middle, and long strokes are available.
・Compact, but the double piston mechanism provides it with a strong
 gripping force.
・An actuator position sensor compatible type has been added.

Other Data :
> Safety Instructions

> Air Grippers/Precautions
> Auto Switches/Precautions
> Air Grippers Series Variations/Model Selection
> Quick Selection Table
> Made to Order Air Gripper
> Green Procurement (RoHS)

Product Number Check

Model Selection Software

Made to Order Common Specifications/a>

Download Catalogs

Technical Data

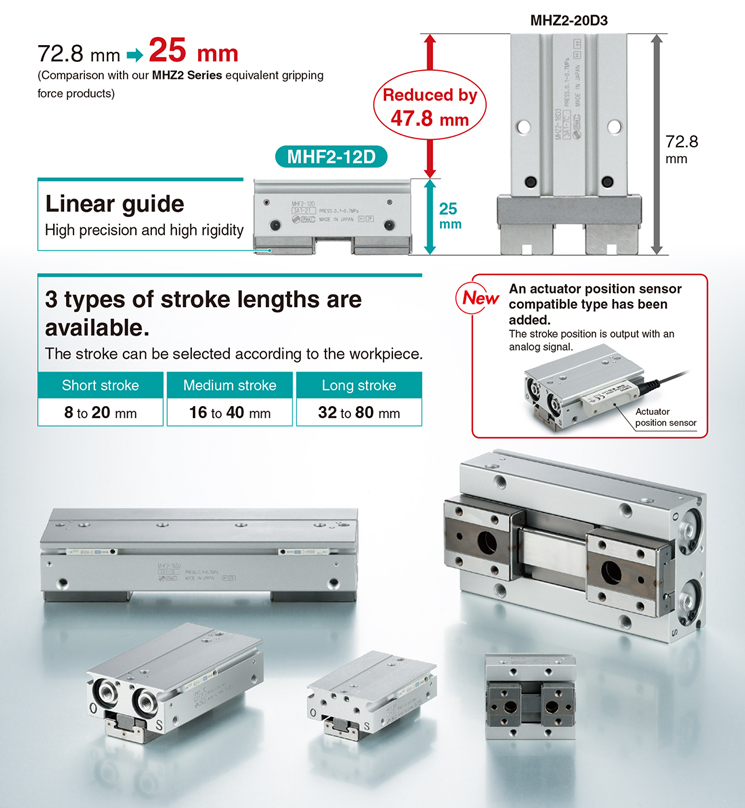

■Height dimension reduced to approximately 1/3 with the same gripping force as the MHZ2-20

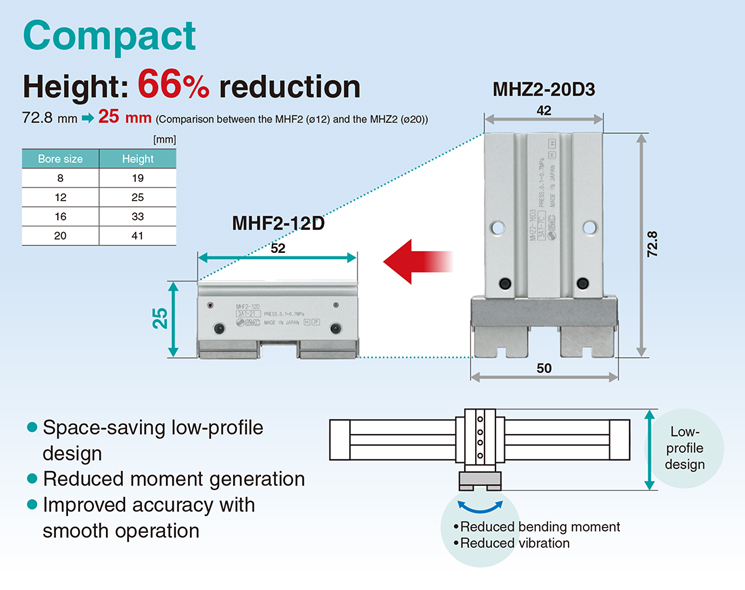

■Compact: Height reduced by 66%

72.8 mm → 25 mm (Comparison between the MHF2 (ø12) and the MHZ2 (ø20))

■Stroke selection is available.

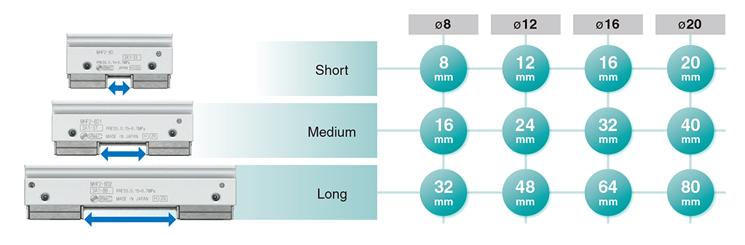

3 standard stroke lengths are available for each bore size.
The stroke can be selected according to the workpiece.

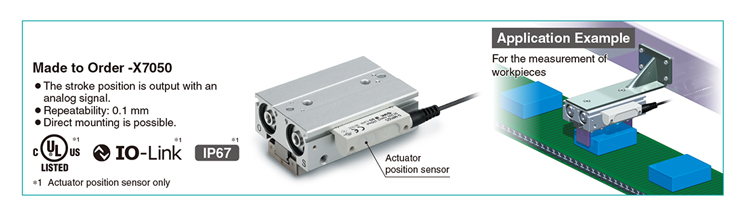

■Actuator Position Sensor Compatible Type

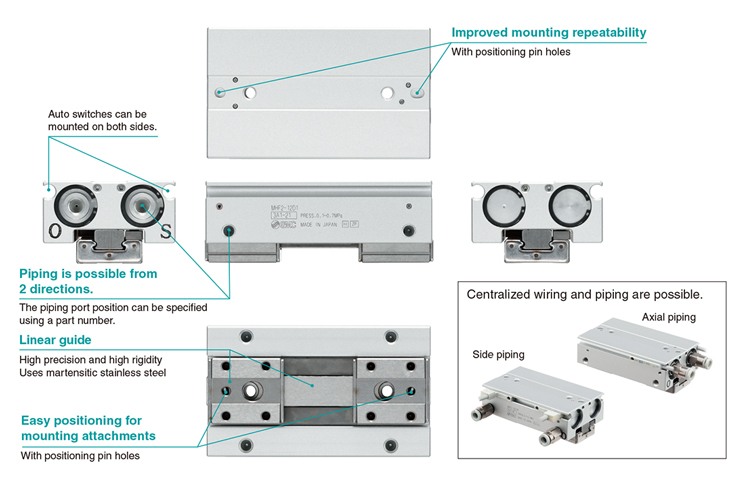

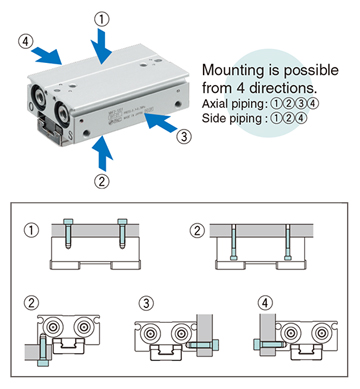

■High degree of mounting flexibility

As no brackets are required, the mounting height can be minimized.

■Strong gripping force

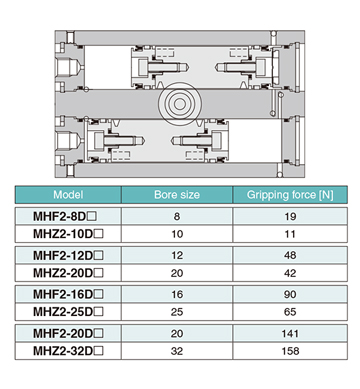

The double piston construction allows for a compact design with strong gripping force.
