・Minimum operating pressure: 1 × 10-6 Pa (abs)
・Leakage: Internal 1.3 × 10-9 Pa·m3/s, External 1.3 × 10-11 Pa·m3/s
・2 types of fittings and female threads are available.
・Power consumption: Max. 25% reduction
・Weight: Max. 18% lighter (0.5 kg → 0.41 kg)
Other Data :
> Safety Instructions
> Green Procurement (RoHS)
■Leakage：Internal 1.3×10-9Pa・m3/s, External 1.3×10-11Pa・m3/s

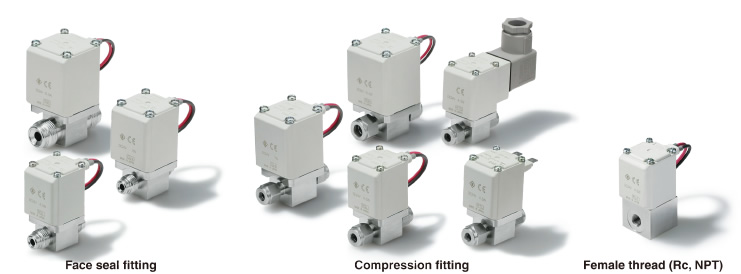

■2 types of fitting and female threads available
Face seal fitting
A fitting with high leak integrity from vacuum to positive pressure, that forms a seal through the placement of a metal gasket at the end of the sleeve and the tightening of the nut.
Compression fitting
A self-aligning tube fitting that uses ferrule rings to compress the tubing, affecting the seal when the nut is tightened.
Female thread(Rc, NPT) [New]

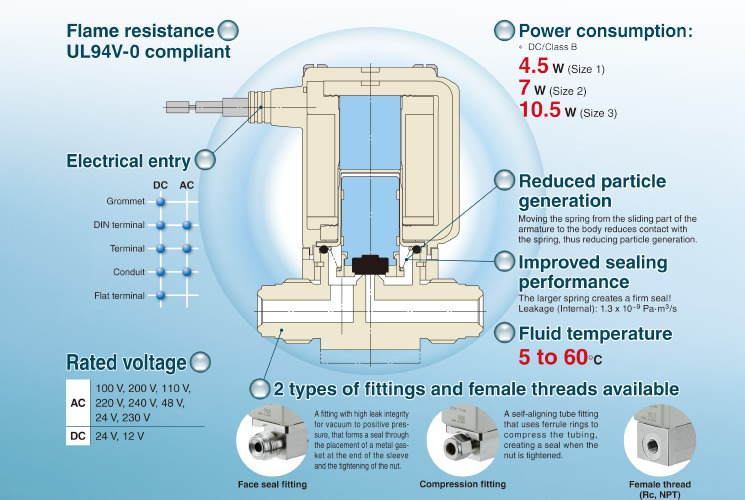

■Power consumption
■Weight
■Fluid temperature：5 to 60℃
■Reverse pressure potential：0.5 MPa(G)※
※ XSA1-12
■Rated voltage
■Applications

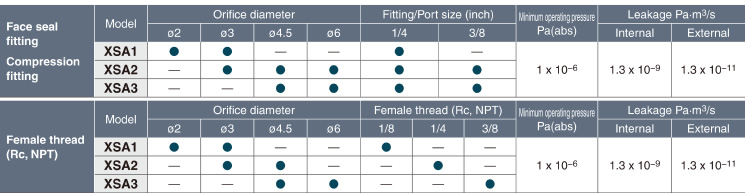

■Variations
