Magnetically Coupled Rodless Cylinder CY1S

Description

・Weight: Max. 15% reduction (0.96 kg: Existing model 1.13 kg)
・Overall length: Max. 15 mm shorter (240 mm: Existing model 255 mm)

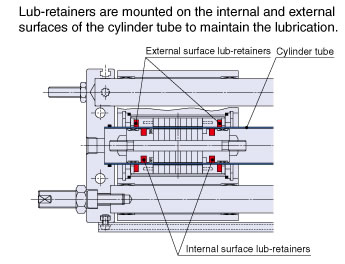

・Improved durability: Lube-retainers are mounted on the internal and
　external surfaces of the cylinder tube to maintain lubrication.
・The adjustment bolt improves stroke accuracy/repeatability.

Other Data :
> Safety Instructions
> Actuators/Precautions
> Auto Switches/Precautions
> Model Selection/Technical Data
> Quick Selection Table
> Made to Order Common Specifications
> Series Variations/Model Selection Criteria
> Green Procurement (RoHS)

Product Number Check

Made to Order Common Specifications

Download Catalogs

Categories: Products List, Air Cylinders, Magnetically Coupled Rodless Cylinders

Technical Data
Features

Technical Data

Features

■Weight reduced Overall length reduced

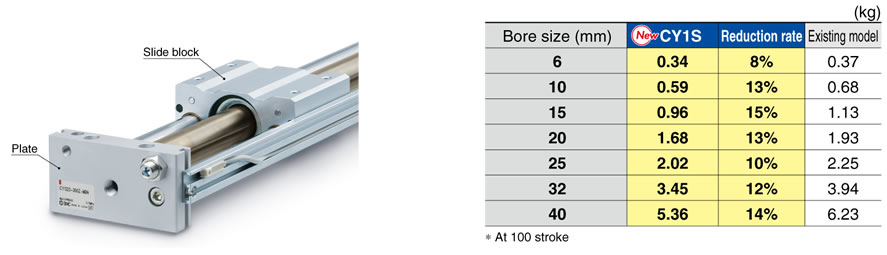

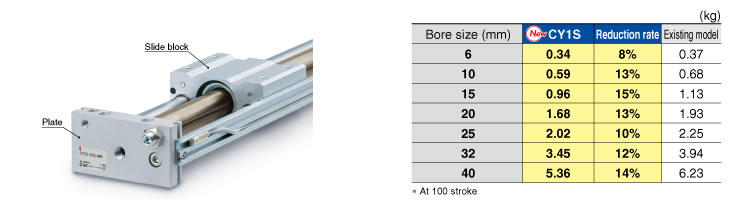

Weight Max. 15 % reduced

Weight is reduced with the redesign of the slide block and reducing the thickness of the plate.

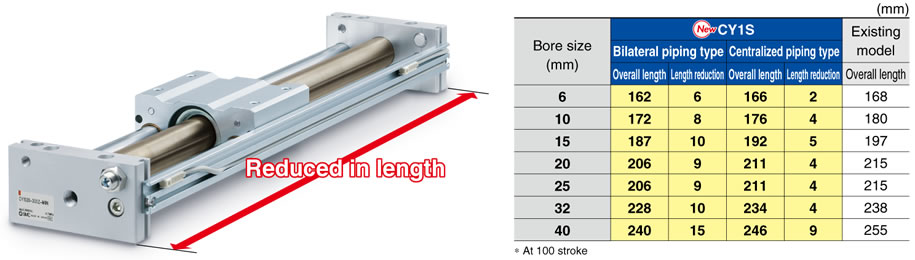

Overall length Max. 15 mm shortened

240 mm (Existing model 255 mm)(CY1S 40-100 stroke)
Overall length is reduced, but interchangeable with the existing model.

■Improved durability, improves stroke accuracy/repeatability.

Improved durability

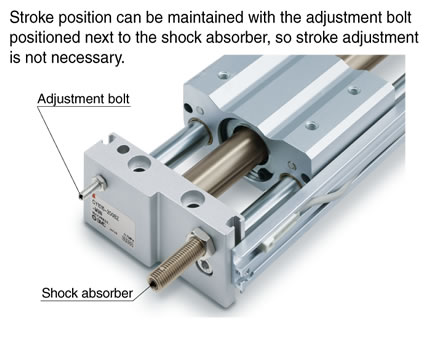

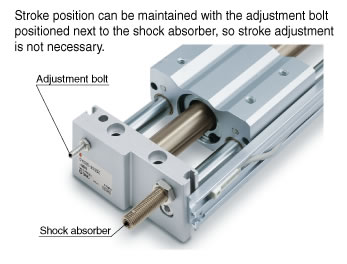

Adjustment bolt improves
stroke accuracy/repeatability.

■Other Features

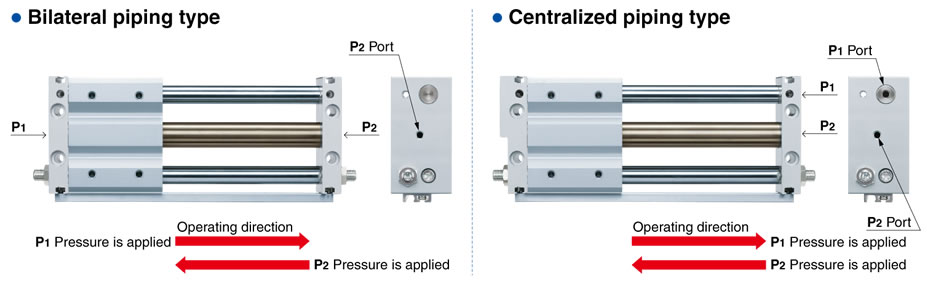

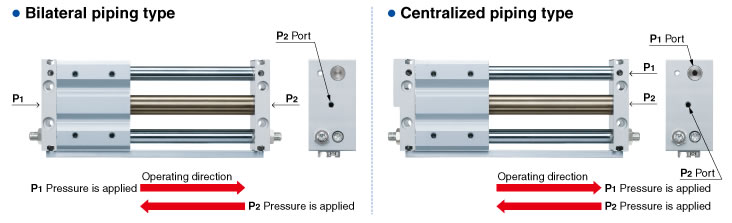

Bilateral piping and centralized piping versions available

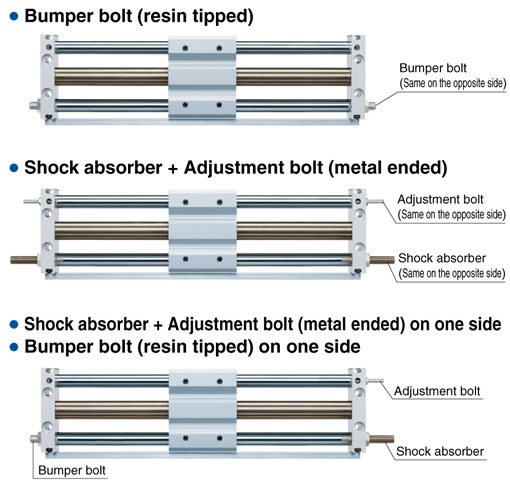

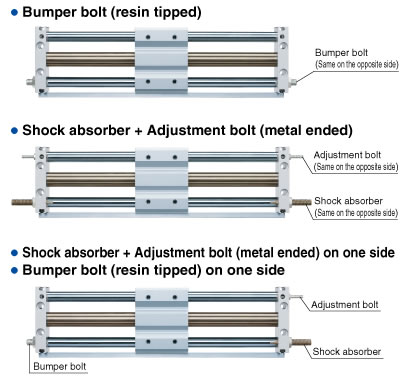

3-Options available for stroke adjustment

Improved auto switch mounting

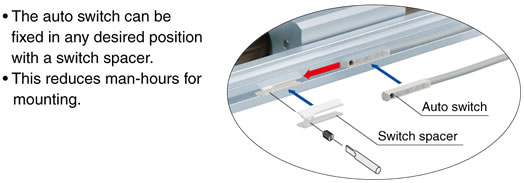

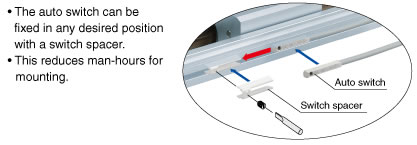

1. Auto switch can be mounted in any desired position. (D-M9□, D-A9□)

2. Auto switch mounting rail fitted as standard
Auto switch rail is suitable for various switch specifications.
Refer to page 1 for applicable auto switches.

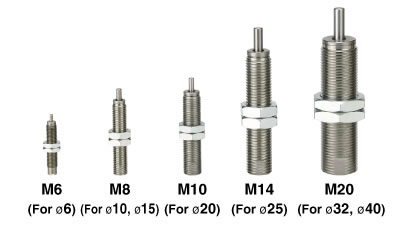

Shock absorber

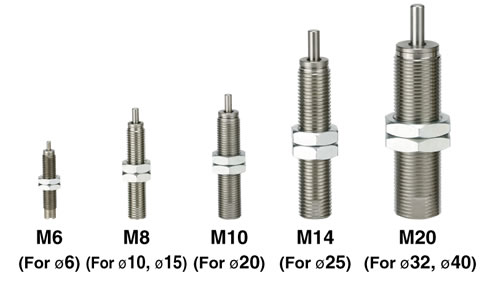

The RJ series soft stop shock absorbers fitted as standard

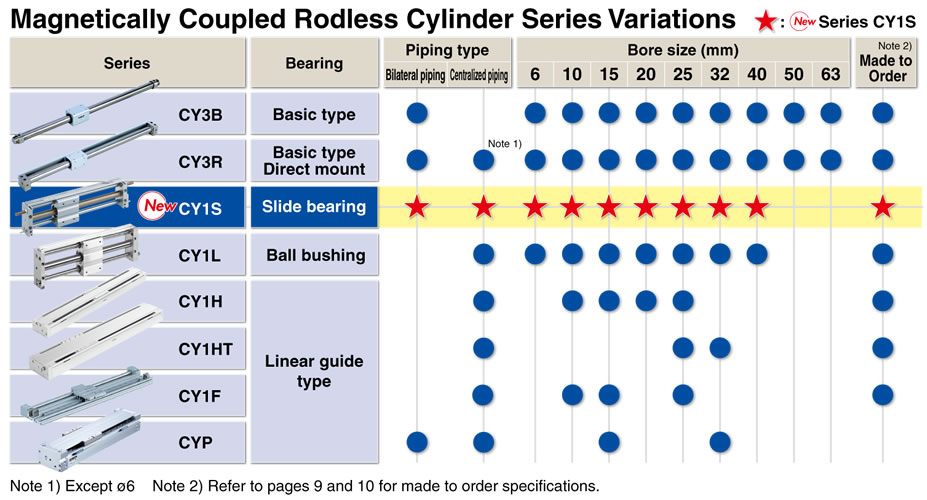

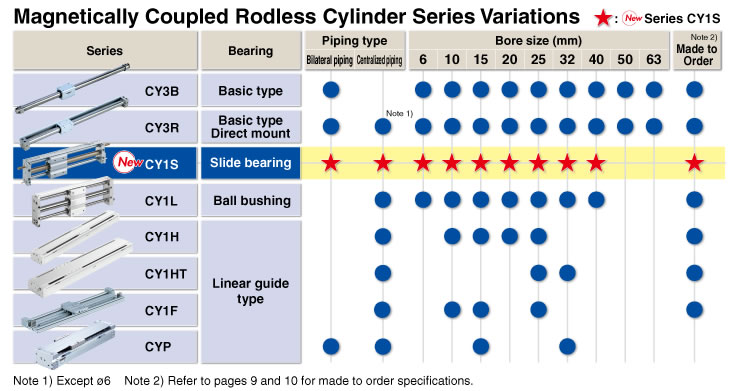

■Series Variations
