Lock Unit MWB-UT

Description

・A safety mechanism can be designed if required.
・It can also be combined with a wide variety of actuators.
 Prevents the workpiece from falling
 Retains the workpiece position even when the air supply
 is shut off due to power failure, etc.

Other Data :
> Safety Instructions

> Actuators/Precautions
> Made to Order Common Specifications
> Green Procurement (RoHS)

Product Number Check

Made to Order Common Specifications

Download Catalogs

Technical Data

Features

A locking cylinder ideal for intermediate stops, emergency stops,
and drop prevention
■Lock can be manually operated with a hexagon wrench.

Can be easily mounted onto equipment

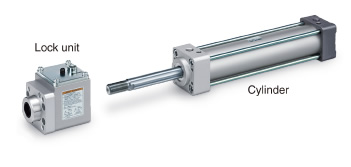

■Separable construction for
improved ease of maintenance

The lock unit and the cylinder can be separated.
This allows for easier maintenance.

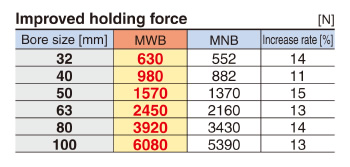

■Holding force improved by 15%

MNB, ø50: 1370 N a MWB: 1570 N

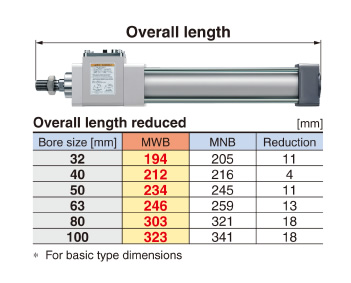

■Overall length reduced by 18 mm max.

Up to 18 mm shorter compared with the MNB series


■Compact auto switches are mountable.

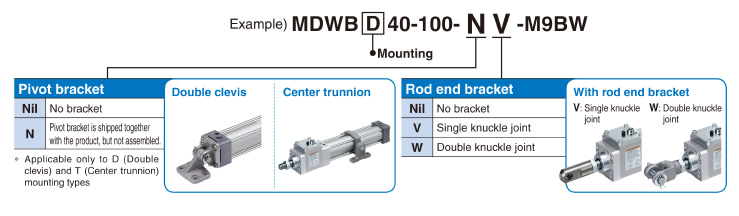

■Part numbers for products with a rod end bracket and/or a pivot bracket are available..

It is not necessary to order a bracket for the applicable cylinder separately.

* Rod end brackets and pivot brackets are shipped together with the product, but not assembled.

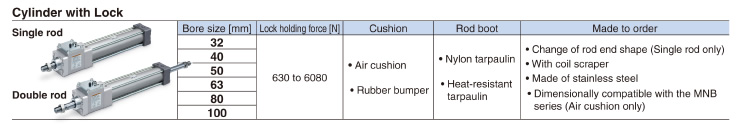

■Series Variations

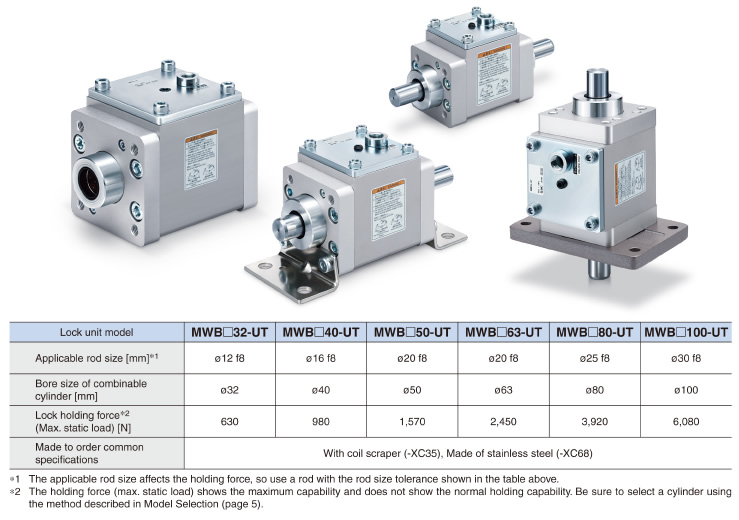

■Lock Unit

A safety mechanism can be designed if required.
It can also be combined with a wide variety of actuators.

・Prevents the workpiece from falling
・Retains the workpiece position even when the air supply is shut off due to power failure, etc.

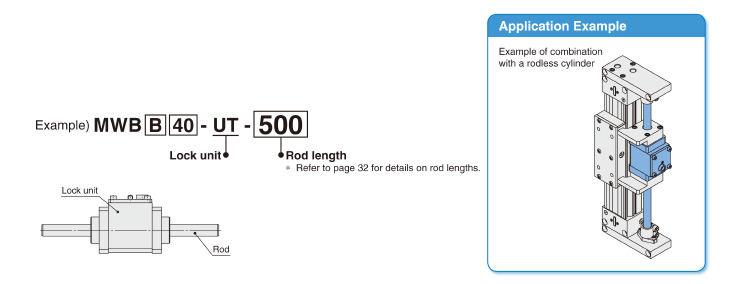

Part numbers for lock units with an applicable rod are now available.

It is not necessary to order a rod for the lock unit separately.
* Rod is shipped together with the product.
