・Body material: New PFA
・N.C./N.O./Double acting all feature the same configuration.
・Compatible with fluid temperatures of 100℃
・Manifold type no.: LLC2, LLC3, LLC4, LLC5
Other Data :
> Safety Instructions
> Series Variations
> Work Procedure Instructions/LQ1, 2
> Green Procurement (RoHS)

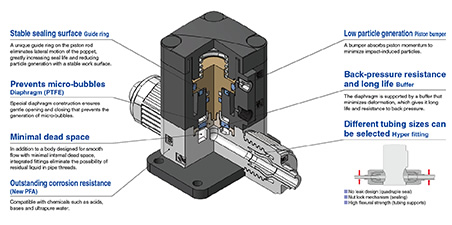

● N.C./N.O./Double acting with same configuration
● Compatible with 100° C fluid temperature
● Body material: New PFA

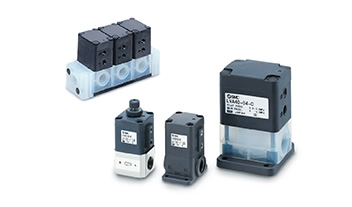

■ Air Operated/Threaded Type
LVA Series
● Diaphragm material PTFE, EPR, NBR are selectable
● Body material: New PFA/Stainless steel/PPS
■ Integrated Fitting Type/Threaded Type

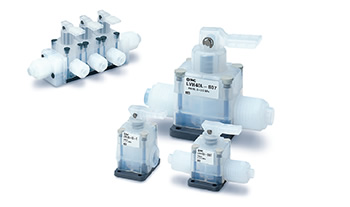

Manually Operated LVH Series
● Locking and non-locking types available
● Body material: New PFA/Stainless steel/PPS

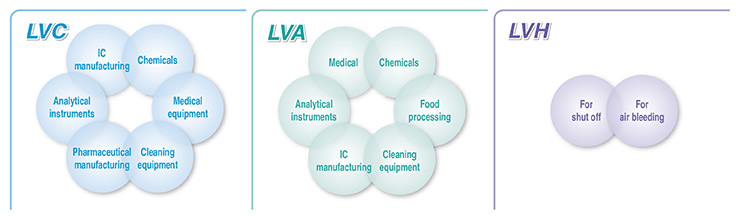

■ Main Applications and Fields
■ Organic Solvents Compatible

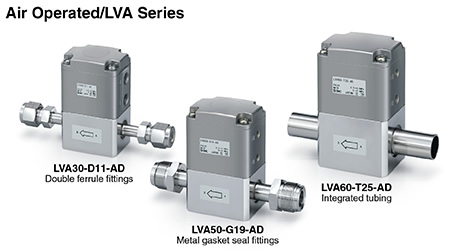

● Body: Stainless steel, Actuator section: ADC, Buffer: FKM/EPDM (Select one)
● Fitting type: Double ferrule fittings, Metal gasket seal fittings, Integrated tubing
● Options: With flow rate adjustment, With indicator, High back pressure (0.5 MPa),
Body wetted parts equivalent to EP grade
● Japan’s Export Trade Control Order: Not applicable for list control
