5-Port Solenoid Valve/Plug-in Type S0700

Description

• A variety of common wiring methods are available.
• Slim, compact plug-in manifold: Required installation space reduced
 by 45%*, Height reduced by 20 mm*
* Compared with plug-in manifold stacking base
• 4-position, dual 3-port valve
• Manifold type no.: SS0751, SS0750

Other Data :
> Safety Instructions

> 3/4/5 Port Solenoid Valves/Precautions
> Selection/Technical Data
>
Green Procurement (RoHS)

Product Number Check Download Catalogs

Technical Data

Features

■Slim Compact Bar Base


■Plug-in Type Stacking Base


■Flow rate characteristics

C[dm3/(s・bar)]:0.39 b:0.39 Cv:0.11


■ Power consumption: 0.35 W


■ Possible to drive cylinders Up to ø25 (At 300 mm/s)


■Plug-in Manifold Variations




■ 4-Position Dual 3-Port Valve


■ Adopted Direct Manual.

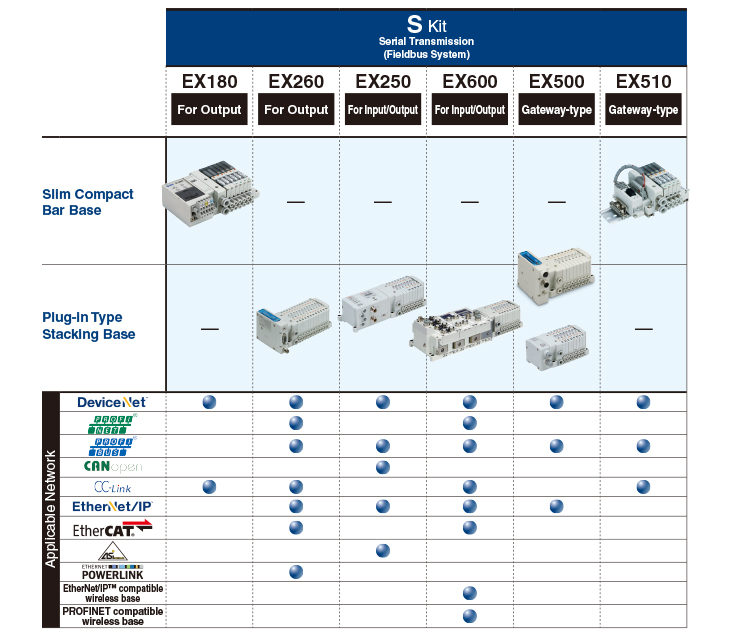

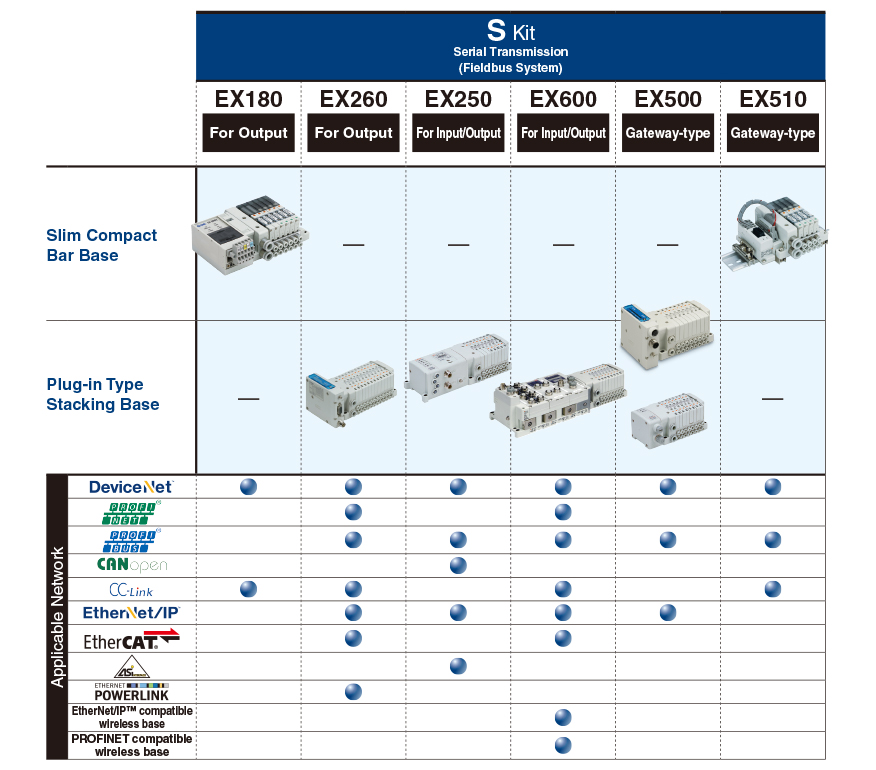

■ Optimum Actuation Size Chart of Air Cylinder


■ 5 Port Solenoid Valve Plug Lead Type Series S0700
