Free Mount Cylinder CU/CDU


・Space-saving cylinder that enables the direct mounting of cylinders
 on multiple sides
・With auto switch (CDU series: CDU, CDUW, CDUK, CDUKW, CDU-A,

Other Data :
> Safety Instructions

> Actuators/Precautions
> Auto Switches/Precautions
> Model Selection/Technical Data
> Quick Selection Table
> Simple Specials
> Made to Order Common Specifications
> Green Procurement (RoHS)

Product Number Check

Made to Order Common Specifications

Download Catalogs

Technical Data


A space-saving air cylinder with multiple surfaces
capable of mounting directly. Offered in rich variations.

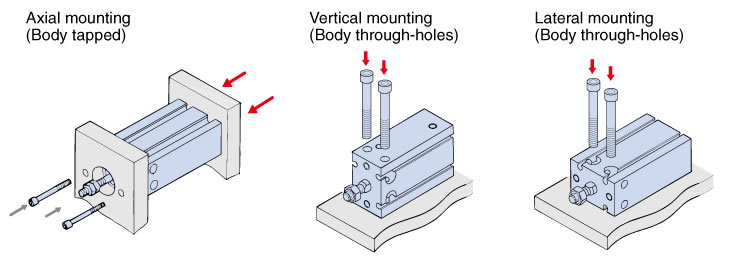

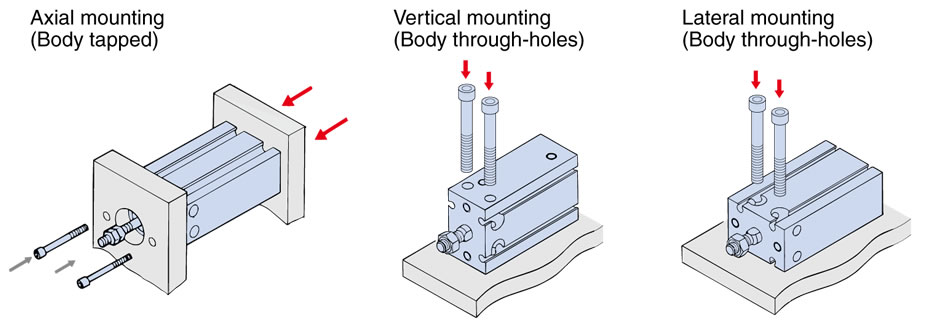

The multiple surface direct mounting with a square body and no brackets allows the freedom of the mounting surface. This enables space-saving designs for equipment.

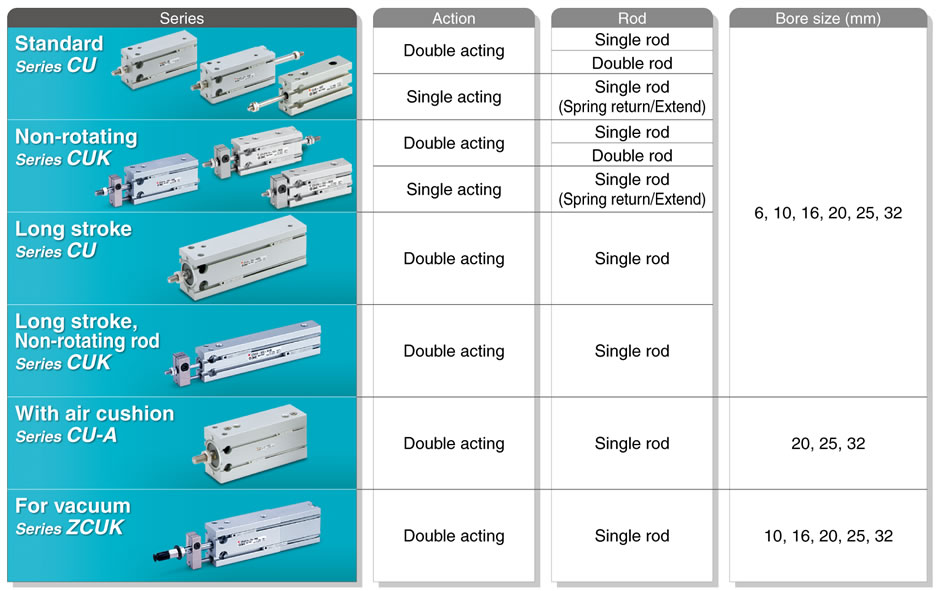

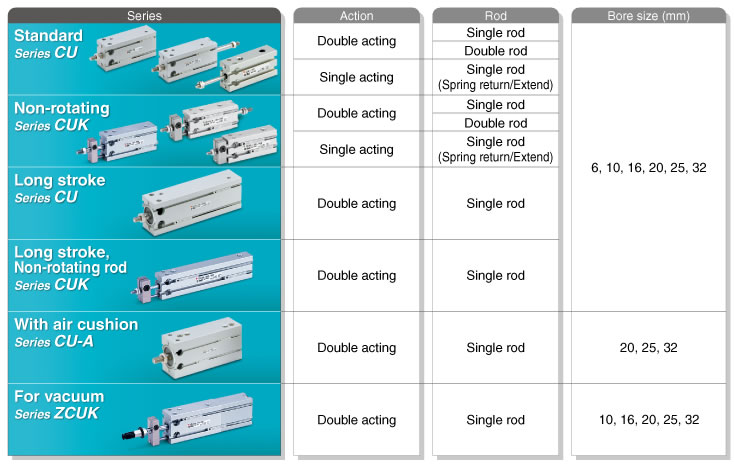

■Series Variations
