Frame Clamp Cylinder WRF100

Technical Data

Features

■High output 20,000 N (Operating pressure: At 0.5 MPa)

High clamping force makes it suitable for a broad range of applications

High repeatability

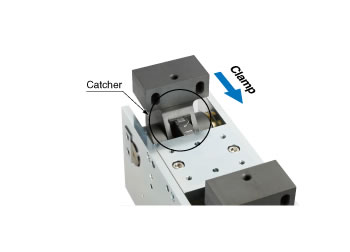

Catcher (detented positioning structure) is a standard feature for repeatable positioning.

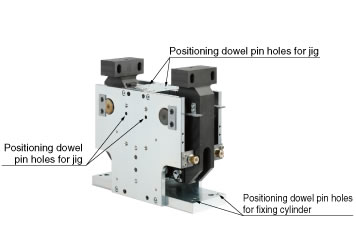

Dowel pin holes for repeatable mounting when reassembling

Allows for repeatable mount positioning in reassembly.

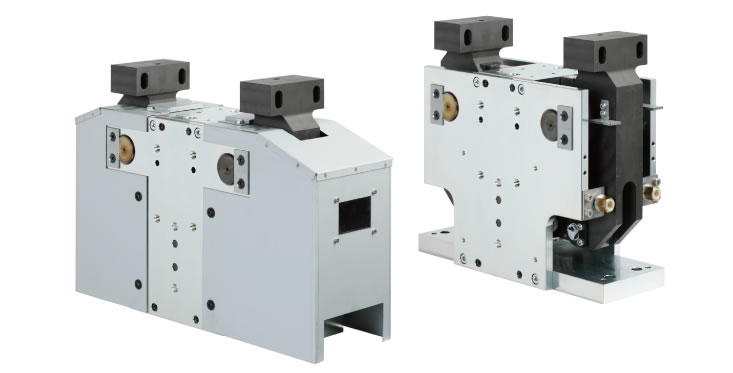

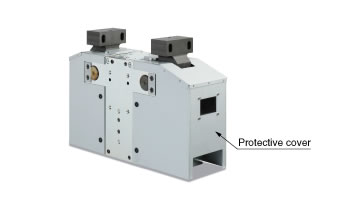

Optional spatter protective cover available

Modular structure allows easy assembly even after the cylinder is installed.

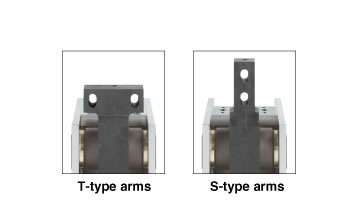

Standardized T-type arms and S-type arms

Shape selectable to meet specifications/application.
T-type arm width: 200, 240, 270 mm
S-type arm width: 130, 200, 240 mm
