Floating Joint J

Description

・The floating joint can absorb any off-centering or loss of parallel
 accuracy of the double acting cylinder, making centering unnecessary.

Other Data :
> Safety Instructions

> Actuators/Precautions
> Green Procurement (RoHS)

Product Number Check

Download Catalogs

Technical Data

Features

JT Series

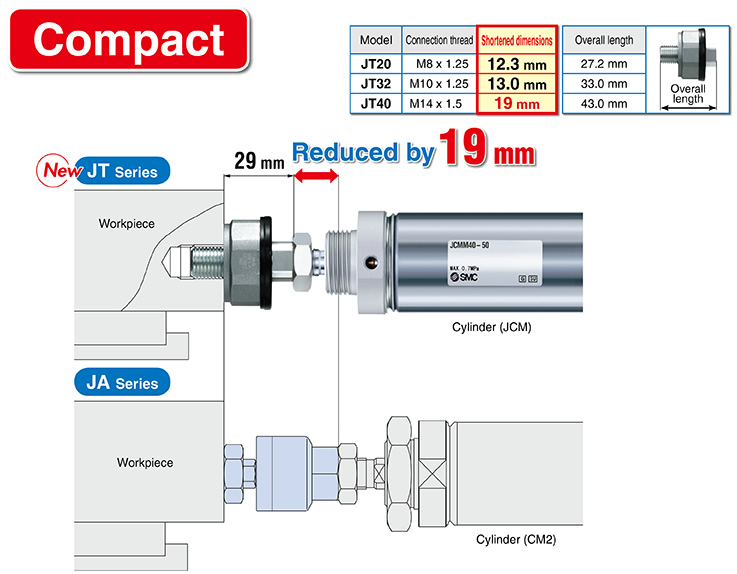

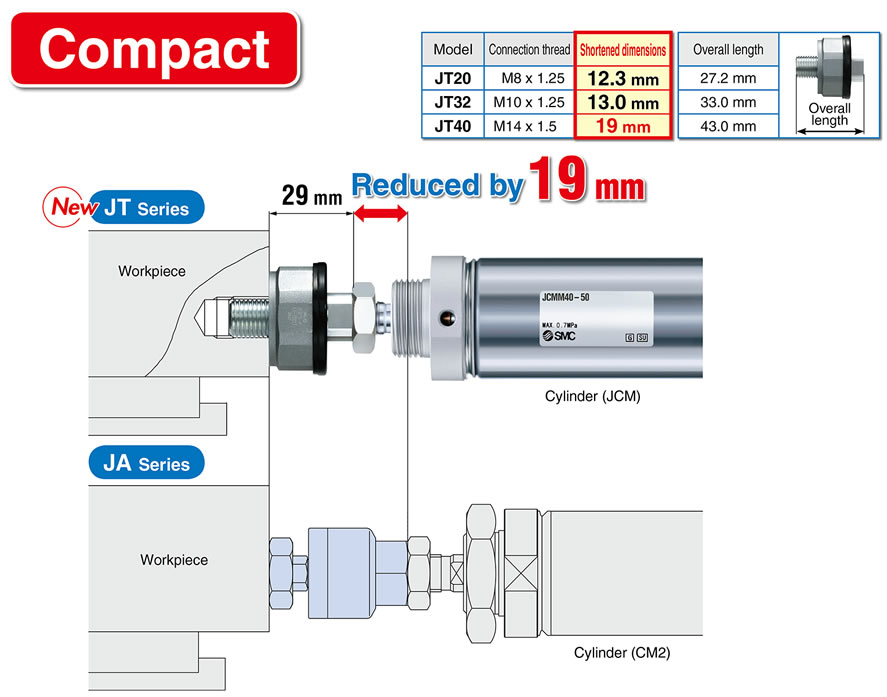

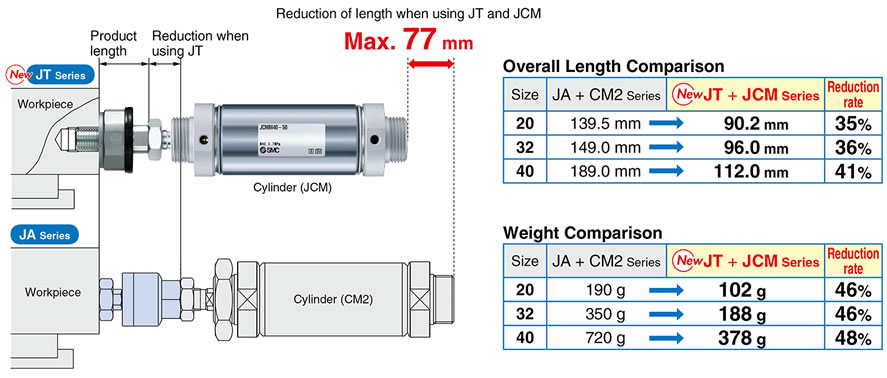

■Compact: Reduced by 19 mm

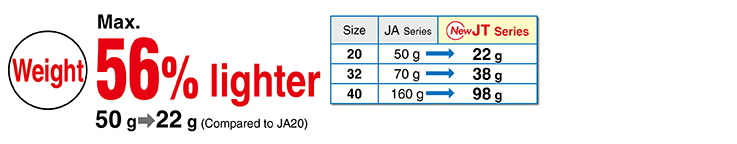

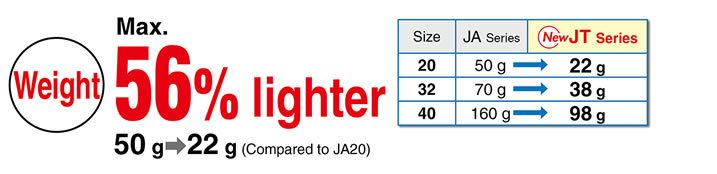

■Weight: Max.56% lighter (50g → 22g)

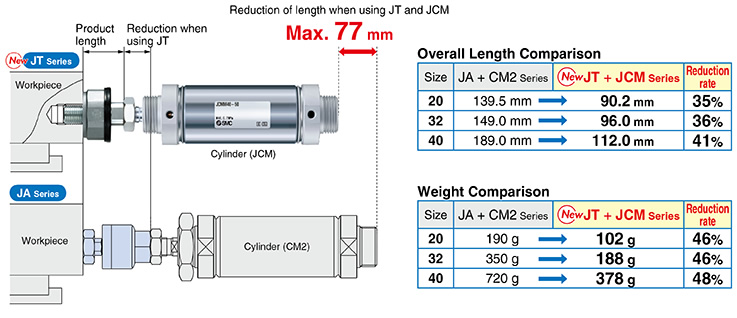

■More compact and light-weight combination are available by using the JT series with a JCM series cylinder.


■Screw size is the same as the screw size for standard JA series.


■With dustproof cover

JC Series

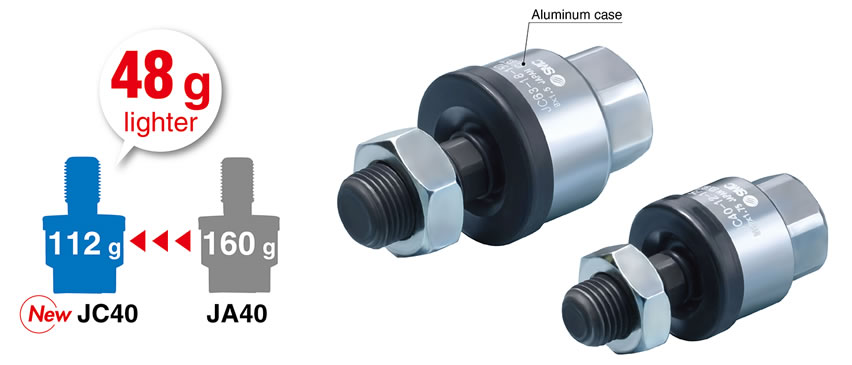

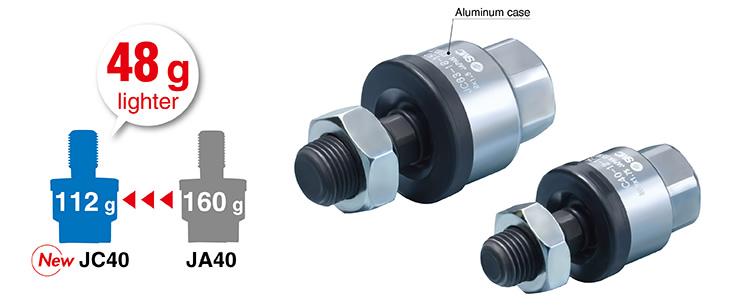

■Light weight With the aluminum case

Weight 30% reduction

*Compared to the existing model JA40

Product suitable for air cylinders

・Light weight mitigates lateral loads to air cylinders.
・Maximum tensile force equivalent to 1 MPa


■Floating joint compensates for any misalignment between the work piece and the air cylinder.

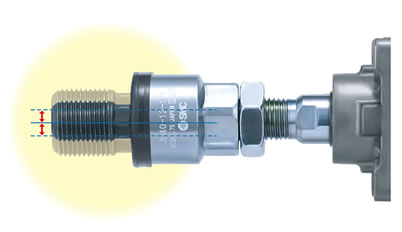

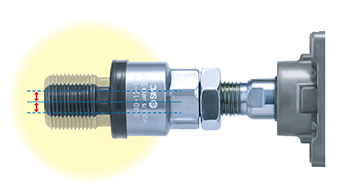

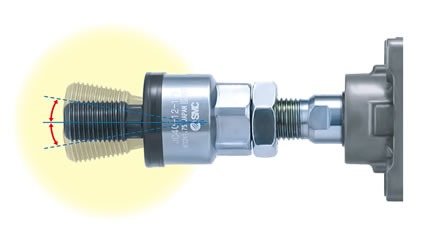

Rotating angle : ±5°

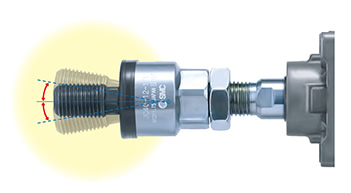

Allowable eccentricity : ±0.5 to 1 mm

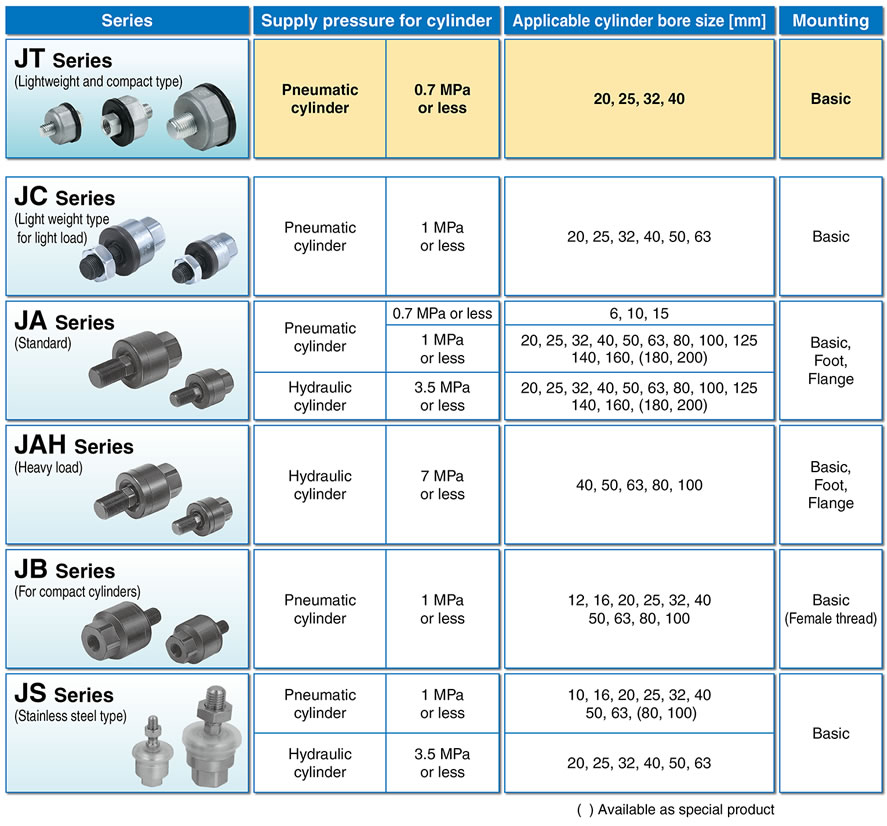

■Series Variations
