Coolant Valve (2 Way Valve)/Low Power Consumption, High Flow Type SGC


・High flow type to control coolants (Cutting fluid) in machine tools
・Low power consumption: 0.35 W (at 24 VDC)
・Maximum operating pressure: 0.5 MPa, 1 MPa, 1.6 MPa
・Service life: 5 million cycles or more (Based on SMC’s test conditions)
・Compatible with G threads (ISO1179-1) as standard
・Air operated, external pilot solenoid

Other Data :
> Safety Instructions
> 2 Port Solenoid Valves for Fluid Control Precautions
> Model Selection/Flow Rate Characteristics
> Series Variations/Process, Coolant Valves List

> Green Procurement (RoHS)

Product Number Check

Model Selection Software

Download Catalogs

Technical Data

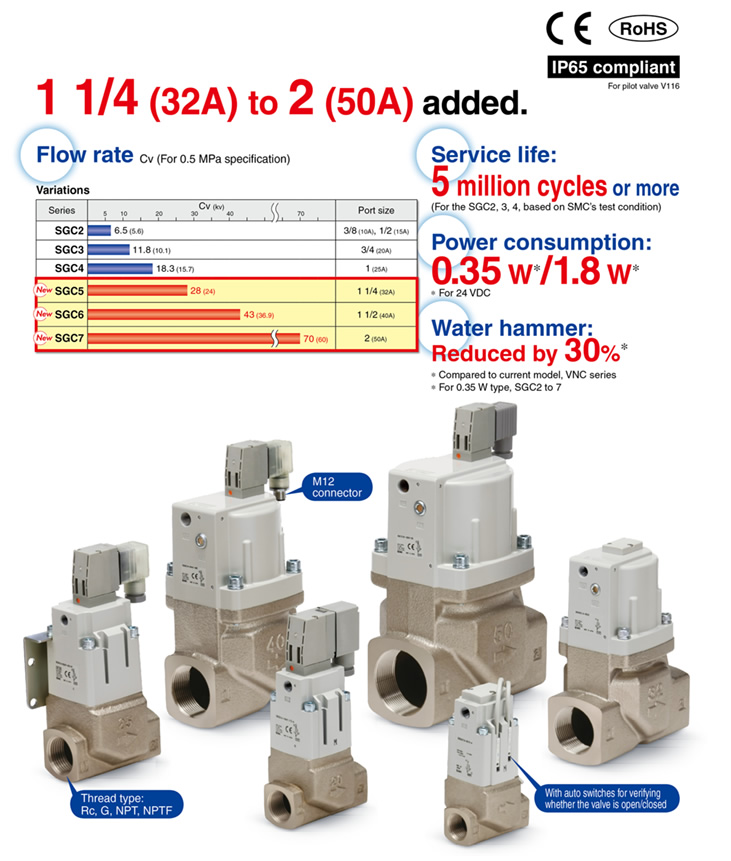

■1 1/4 (32A) to 2 (50A) added.[New]

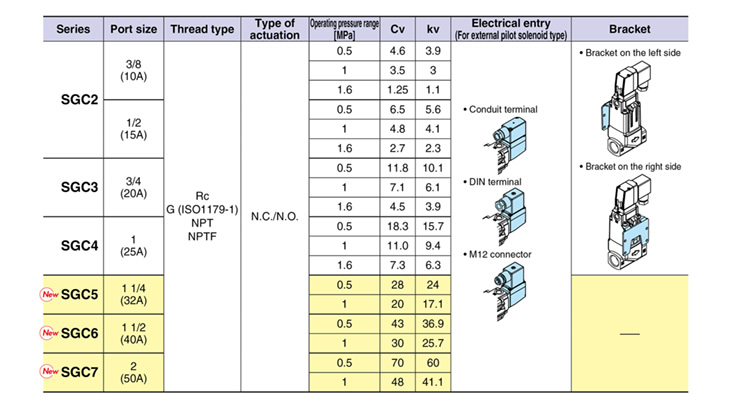

● Variations (Common specifications for external pilot solenoid type and air operated type)

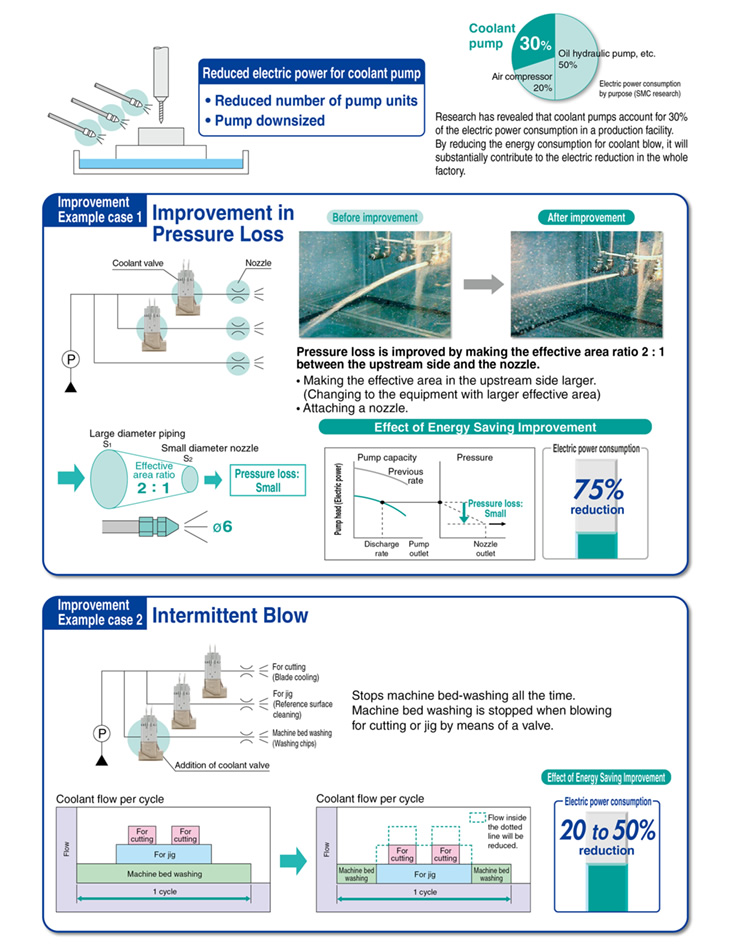

● Reduced coolant blow energy consumption

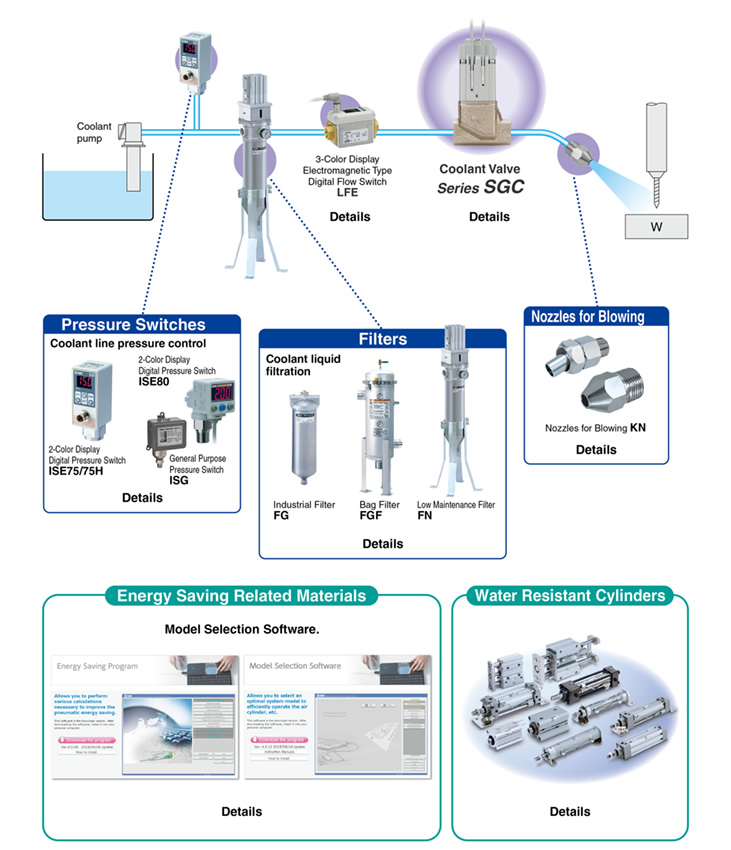

● Coolant Blow System/ Related Equipment
