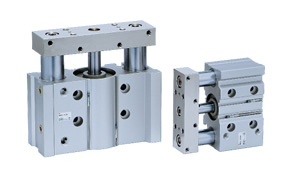

Compact Guide Cylinder MGP

Description

・Weight reduced by up to 24% with a shorter guide rod and
 thinner plate.
・The space required between the bottom of the cylinder body
 and your equipment is reduced because of the shortening of
 the guide rod by a max. of 22 mm.
・Round type and magnetic field resistant auto switches can be
 mounted directly without a spacer.
・With flange: MGP□F

Other Data :
> Safety Instructions

> Actuators/Precautions
> Auto Switches/Precautions
> Model Selection/Technical Data
> Quick Selection Table
> Simple Specials
> Made to Order Common Specifications
> Green Procurement (RoHS)

Product Number Check

Simple Specials

Made to Order Common Specifications

Download Catalogs

Technical Data

Features

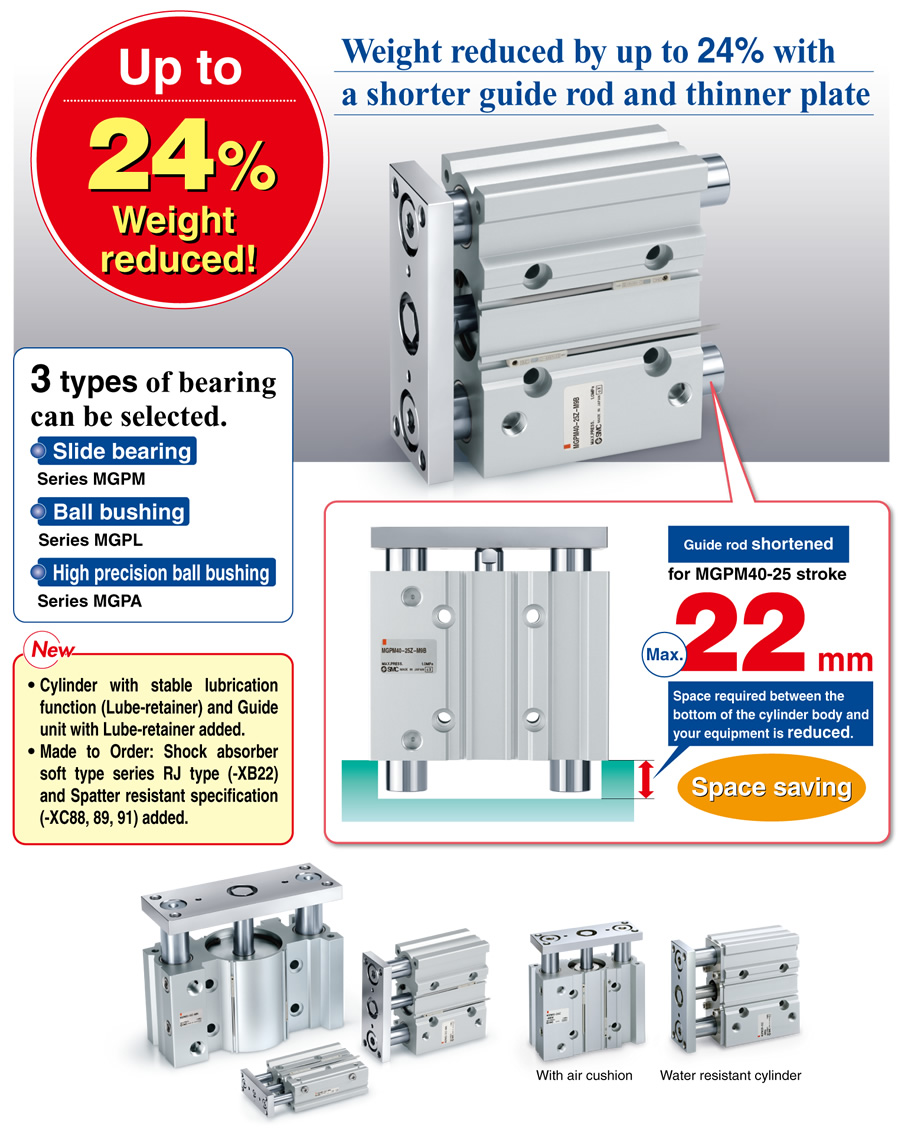

■Weight reduced by up to 24% with a shorter guide rod and thinner plate

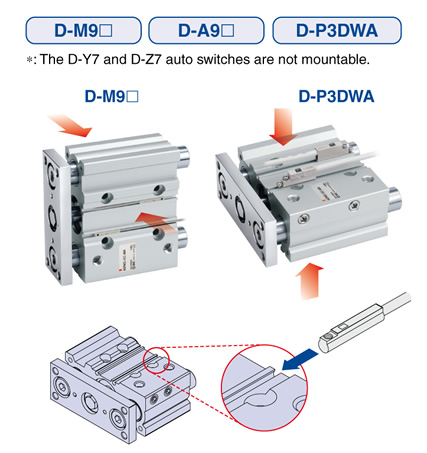

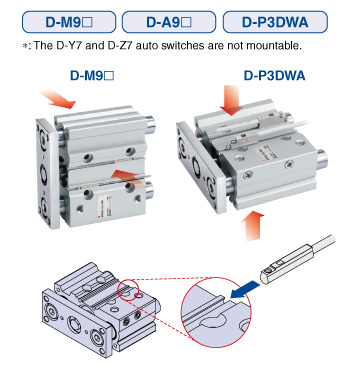

■Small auto switches or magnetic field resistant auto switches can be directly mounted on 2 surfaces.

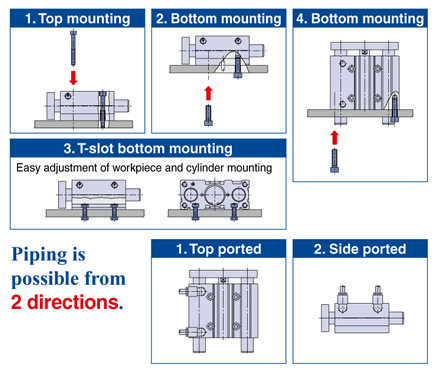

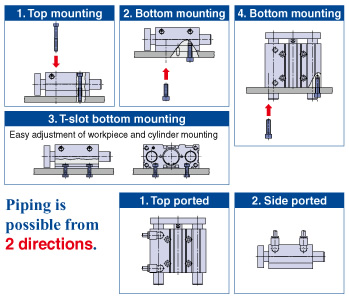

■4 types of mounting are possible.
Piping is possible from 2 directions.

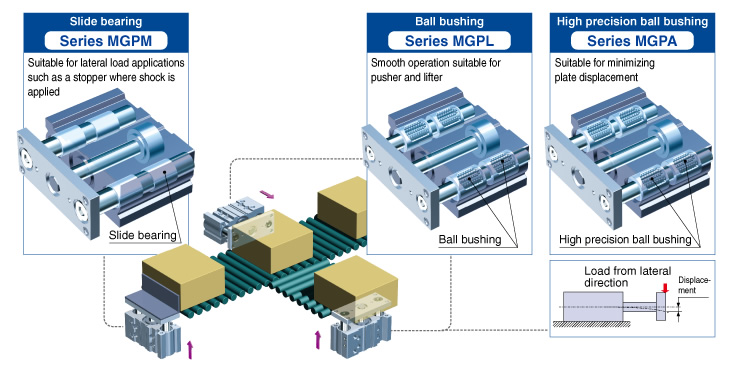

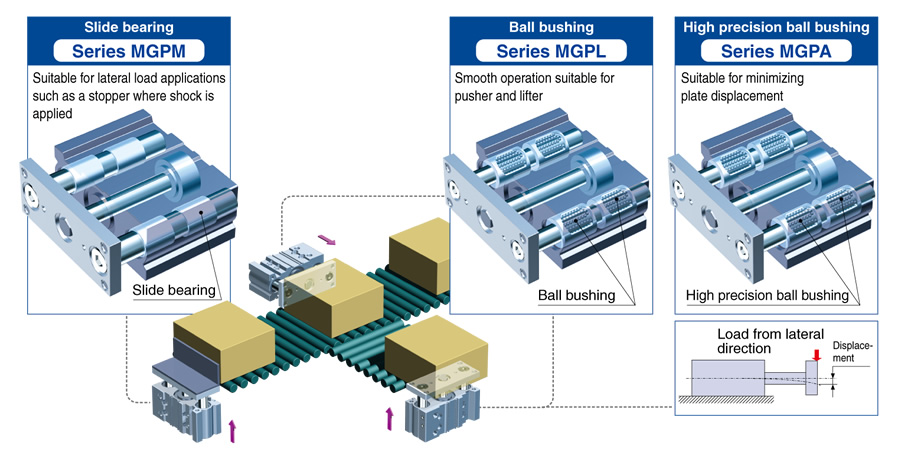

■3 types of bearing can be selected.


■Basic Type

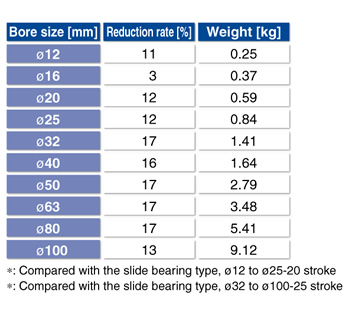

●Weight reduced by up to 17%

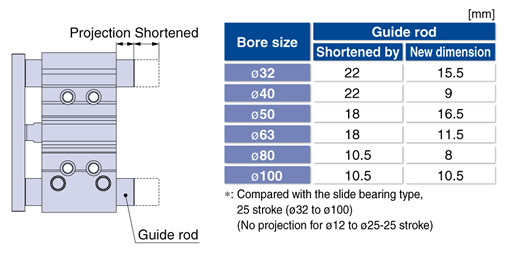

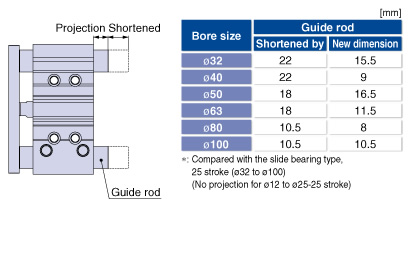

●Guide rod shortened

●Performance and strength (rigidity) are equivalent to the current MGP series.
●Mounting dimensions are equivalent to the current MGP series.

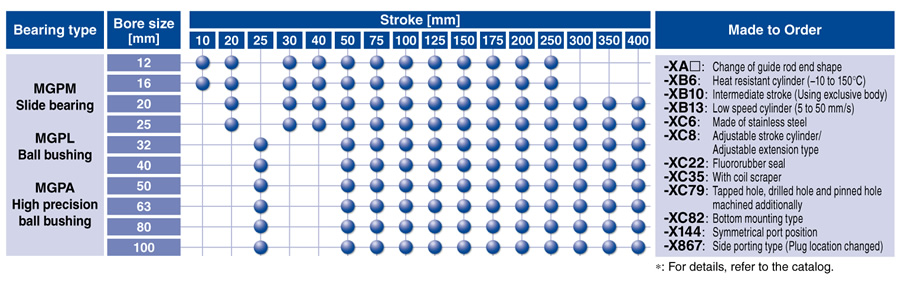

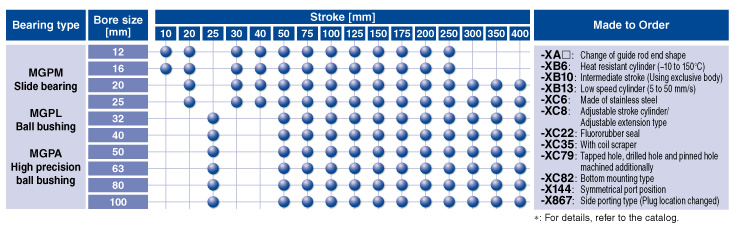

●Series MGP (Basic Type), Stroke Variations


■With Air Cushion

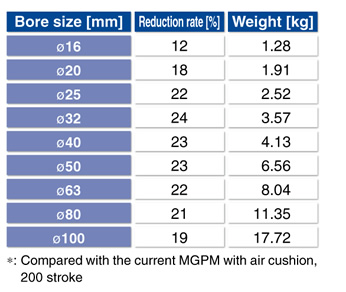

●Weight reduced by up to 24%

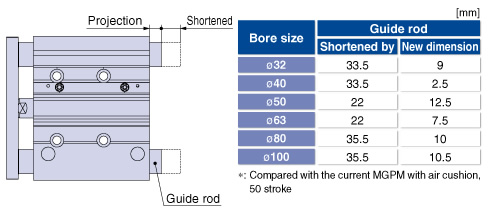

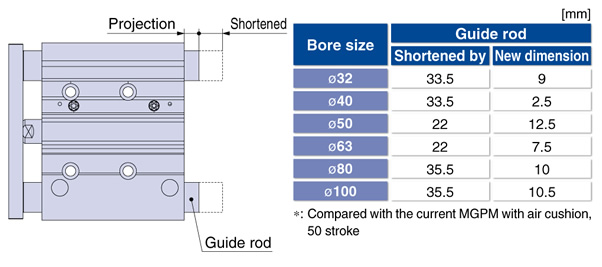

●Guide rod shortened by up to 35.5 mm

 (MGPM100-50 stroke)

●Performance and strength are equivalent to the current MGP series with air cushion.
●Mounting dimensions are equivalent to the current MGP series with air cushion.

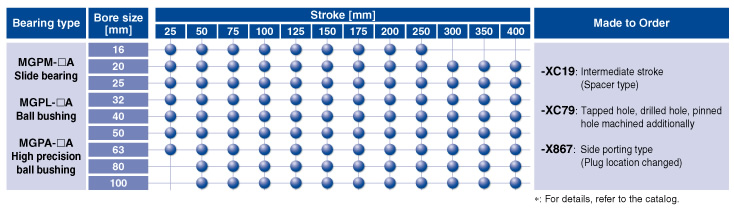

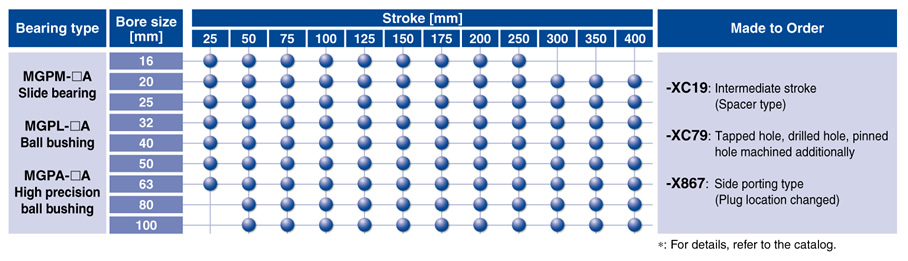

●Series MGP (With Air Cushion), Stroke Variations


■With End Lock

・Holds the cylinder’s home position even if the air supply is cut off.
・Compact body

 ø20 to ø63 ······ Standard + 25 mm body length
ø80, ø100 ······ Standard + 50 mm body length

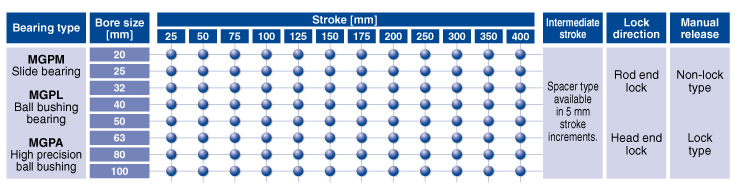

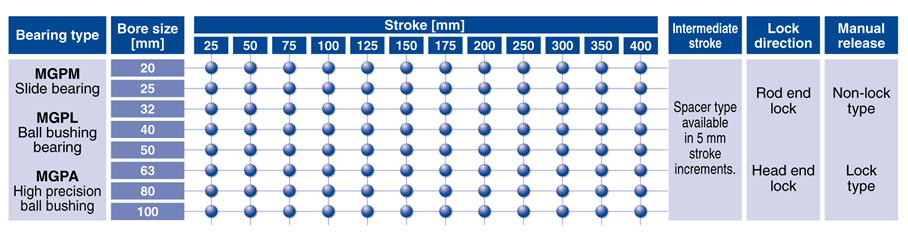

・Stroke Variations

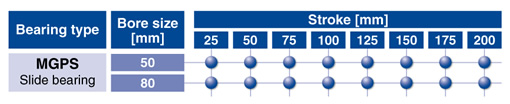

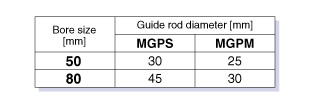

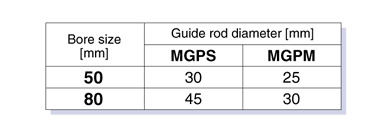

■Heavy duty guide rod type with improved load resistance

・Stroke Variations

・Anti-lateral load : 10% increase
・Eccentric load resistance : 25% increase
・Impact load resistance : 140% increase

 (Compared with MGPM50 compact guide cylinder)

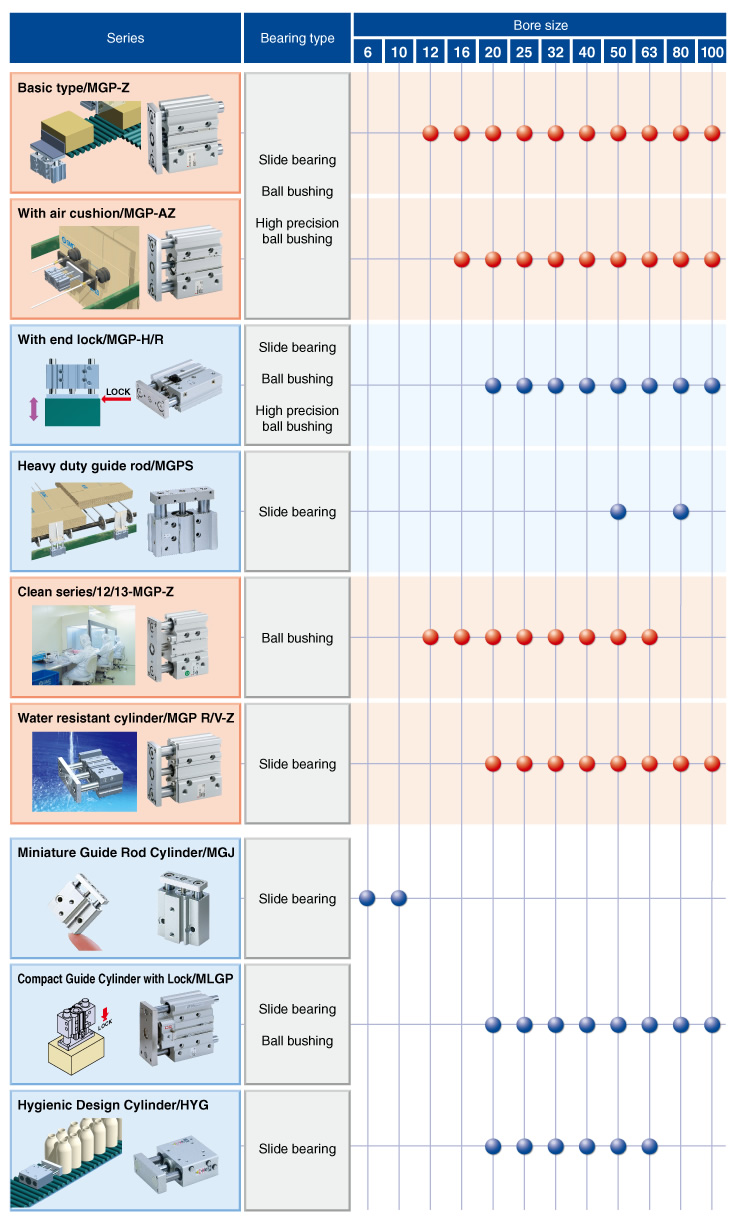

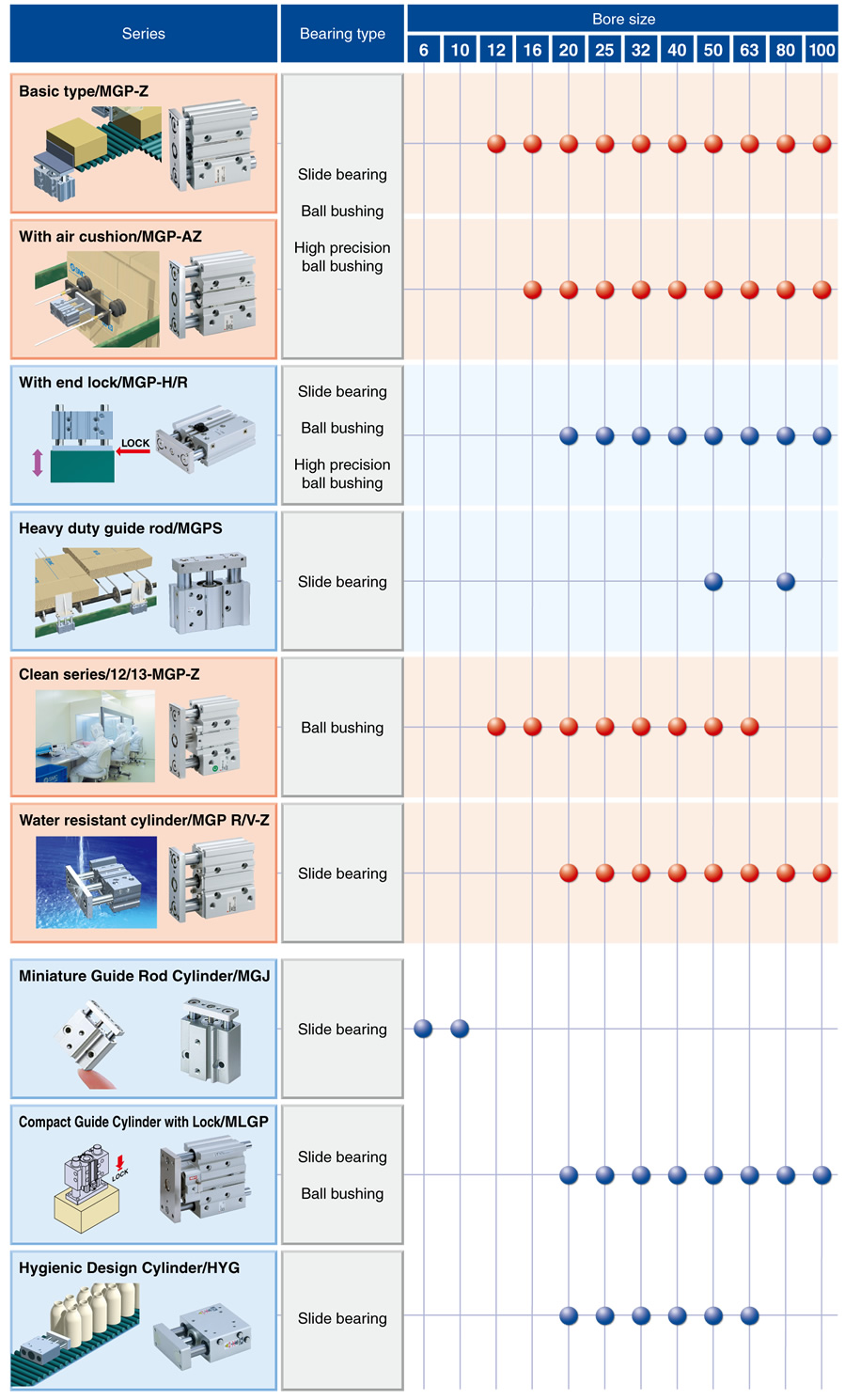

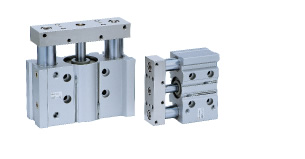

■Compact Guide Cylinders, Series Variations
