Compact Cylinder/Compact Type CQS/CDQS

Description

・With this compact square type cylinder, auto switch mounting on 3 or
 4 sides is possible.
 This compact cylinder does not protrude from the body when mounting
 an auto switch.
・Newly added compact type foot brackets and double clevis pivot bracket
・With auto switch (CDQS series: CDQS, CDQSW, CDQSK, CDQSKW,
 CDQS□S)

Other Data :
> Safety Instructions

> Actuators/Precautions
> Auto Switches/Precautions
> Model Selection/Technical Data
> Quick Selection Table
> Simple Specials
> Made to Order Common Specifications
> Green Procurement (RoHS)

Product Number Check

Simple Specials

Made to Order Common Specifications

Download Catalogs

Technical Data

Features

■Ideal for machine designs with small space requirements

The “D-M9” auto switch will not protrude from switch mounting groove.


■Square body shape gives you flexibility for designing machine

Cross-section of a cylinder tube is the same configuration regardless of w/ switch or w/o switch.

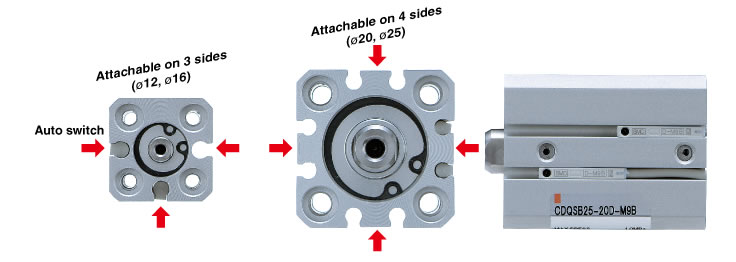

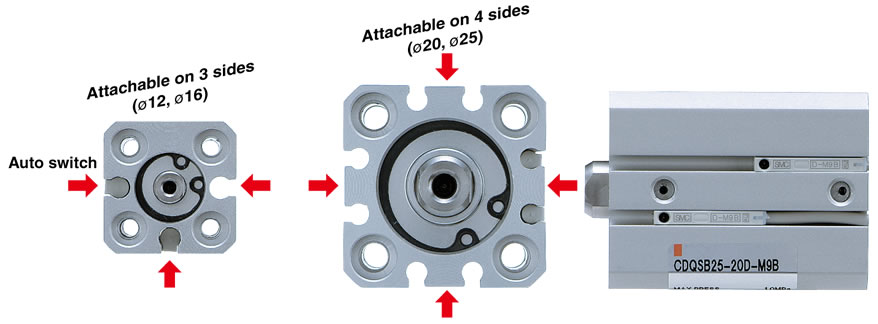

■Auto switch mounting allows for flexible designing requirements

3 faces on ø12, ø16, and all 4 faces including port side on ø20, ø25.


■2 way basic mounting: Through-hole or both ends tapped

Basic mounting is 2 way. You can choose either through-hole or both ends tapped mounting.


■Non-rotating accuracy Non-rotating rod

Hexagonal cross sectional shape piston rod for high non-rotation accuracy.
ø12, ø16 ̶ ±1°
ø20, ø25 ̶ ±0.7°


■Reduction of installation space

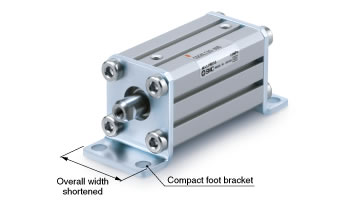

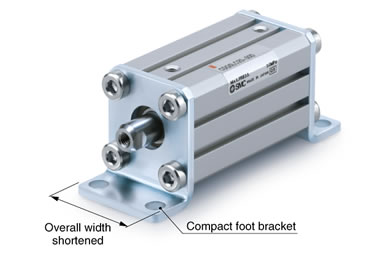

Compact foot bracket

  • Compact foot bracket has the same width as the cylinder.
    Overall width reduced by up to 43% (for ø12)

More compact installation space possible

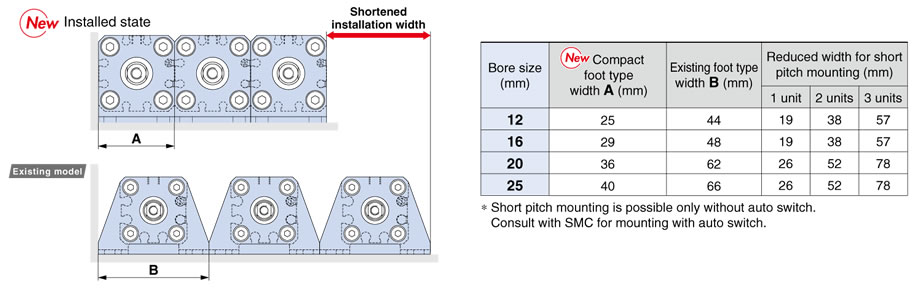

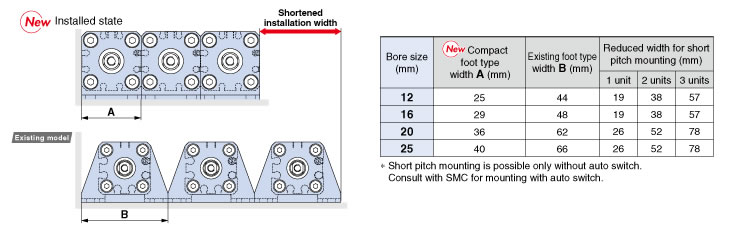

  • Short pitch mounting is possible.
  • Allows installation close against a wall.

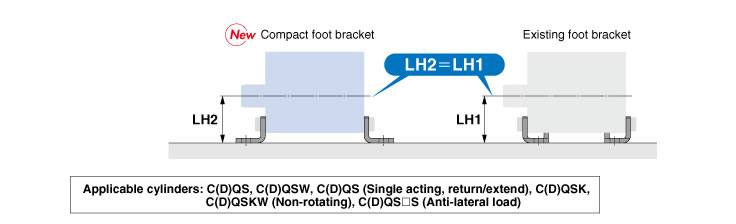

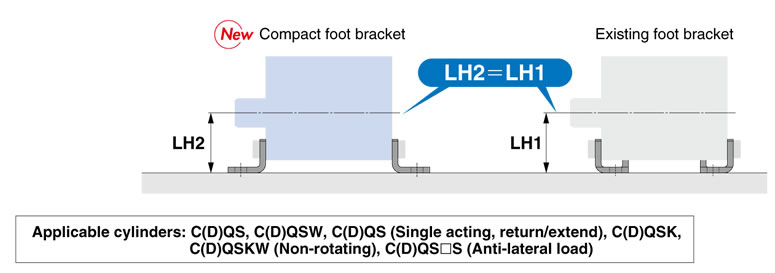

Height from the bottom of brackets to the center of a cylinder is the same as the existing model.


■Reduction in labor for design

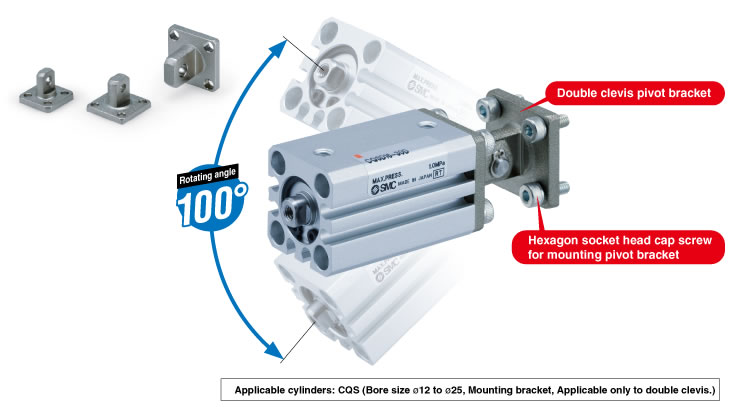

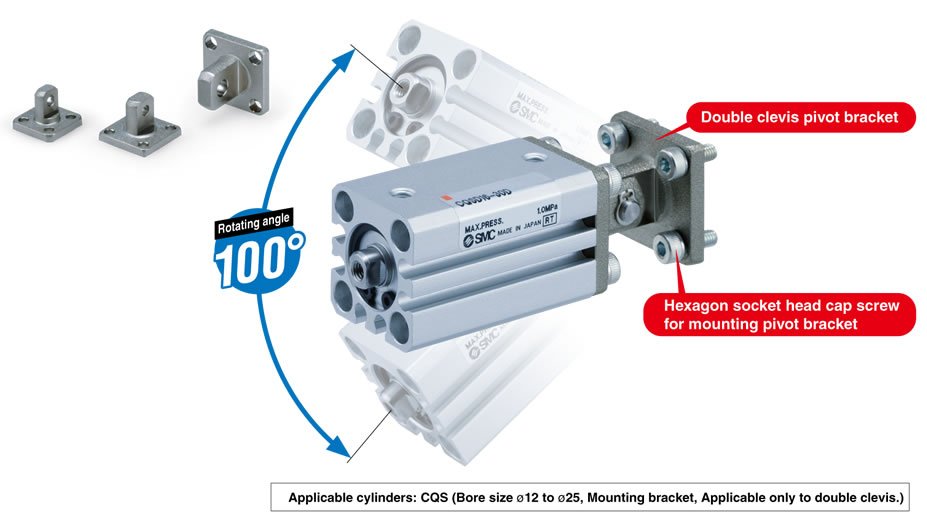

Added pivot brackets for double clevis.

Rotating angle: Max. 100°(For ø12, ø16)

  • Time to design rotating bracket saved.
  • Improved amount of mounting freedom.
  • Can be mounted to an installed double clevis cylinder.

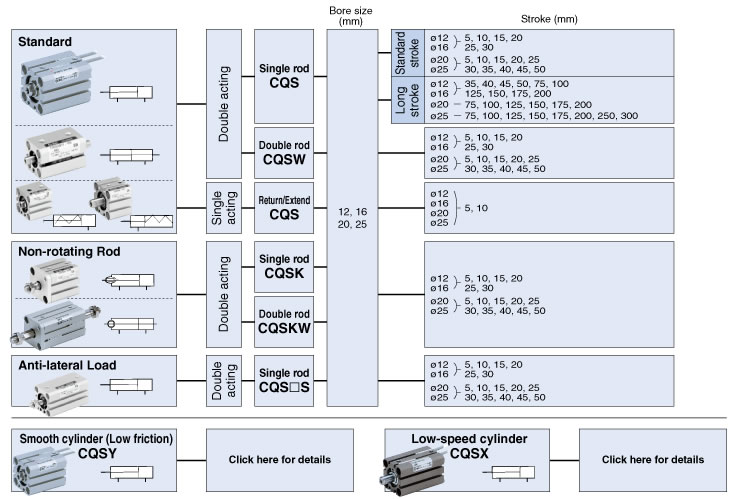

■Variations
