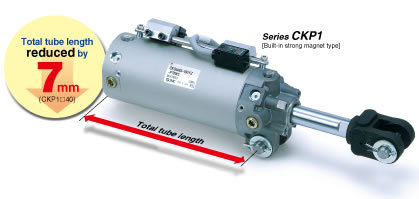

・Total tube length reduced by 7 mm (for CKP1□40)
・Easy fine speed adjustment with screw adjustment
・Speed controller valve has no projection from the tube’s
・It is possible to mount magnetic field resistant auto switches
from 3 directions.
D-P3DW type, D-P4DW type (CKG1), D-P79WSE type, D-P74L/Z type
・Can be used as a spatter resistant cylinder for arc welding
(-XC88/-XC89/-XC91) (CKG1 only)
Other Data :
> Safety Instructions
> Auto Switches/Precautions
> Model Selection/Technical Data
> Made to Order Common Specifications
> Green Procurement (RoHS)

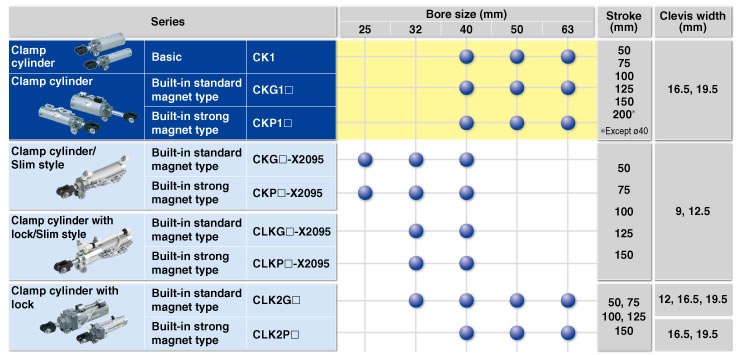

Made to Order Common Specifications

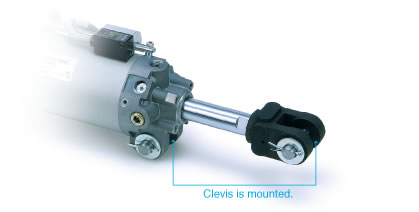

Mounting dimensions are the same as the existing product.
With air cushion
Unclamped side (Head end)···Standard
Air cushion on both ends·······Made to Order (-X1515)

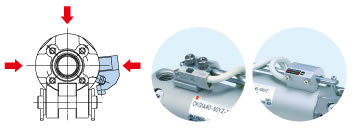

Piping ports are located on three surfaces.
Piping arrangement is more flexible corresponding to
the installed environment.

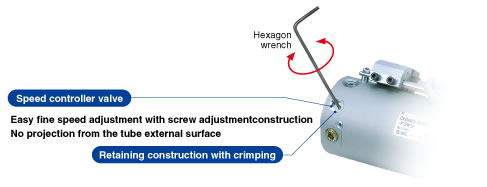

■Easy speed adjustment
Easy fine speed adjustment with screw adjustment construction
No projection from the tube external surface

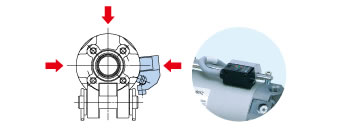

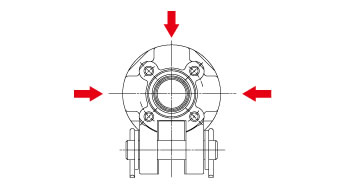

■Magnetic field resistant auto switch:Mountable from 3 directions

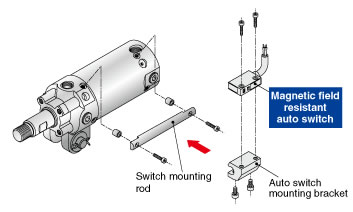

Possible to mount magnetic field resistant auto switch using the mounting rod
［Series CKG1/Built-in standard magnet type］
D-P3DWSC, D-P3DWSE, D-P3DW/L/Z (AC magnetic field)
D-P4DWSC, D-P4DWSE, D-P4DWL/Z (AC magnetic field)
［Series CKP1/Built-in strong magnet type］
D-P79WSE, D-P74L/Z (DC/AC magnetic field)
