3-Port Solenoid Valve/Direct Operated Poppet Type VT307

Description

• Energy-saving type: 1.8 W
• A single valve with various valve functions (Universal porting type)
• Low concentration ozone resistant
 Rubber seal material: HNBR for main valve
• Mounting dimensions are interchangeable with the existing product.
• Manifold type no.: VV307

Other Data :
> Safety Instructions

> 3/4/5 Port Solenoid Valves/Precautions
> Selection/Technical Data
>
Green Procurement (RoHS)

Product Number Check Download Catalogs

Technical Data

Features

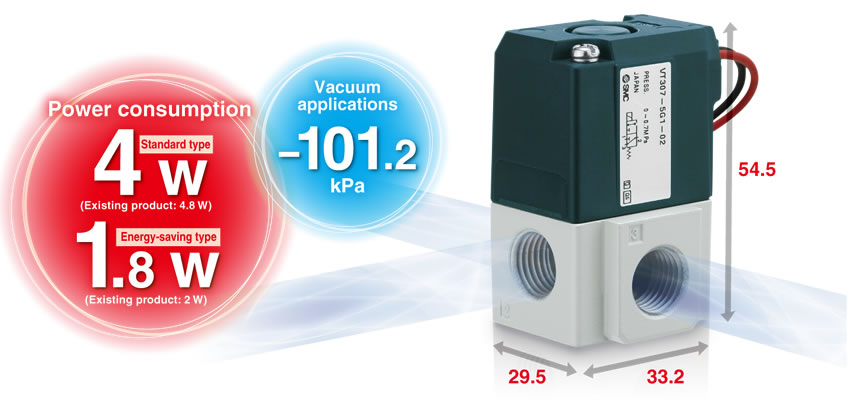

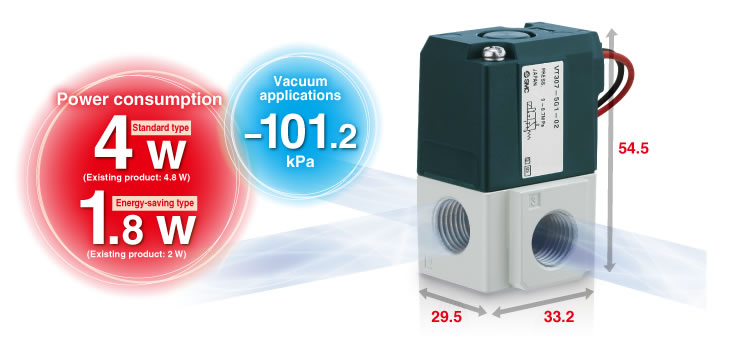

■Energy-saving

Standard type: 4W (Existing product: 4.8 W)
Energy-saving type: 1.8W (Existing product: 2 W)

A single valve with various valve functions

(Universal porting type)
N.C. valve
N.O. valve
Divider valve
Selector valve
etc.

Low concentration ozone resistant

Rubber seal material: HNBR for main valve

Mounting dimensions are interchangeable with existing product

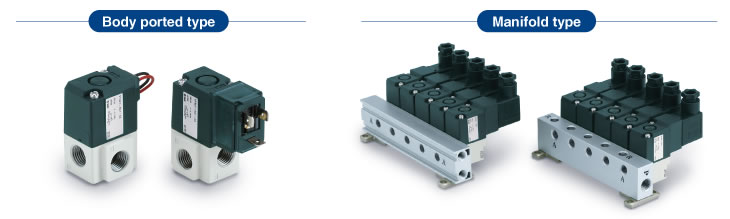

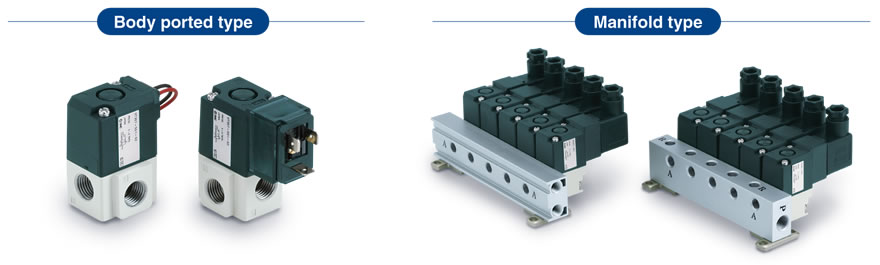

Body ported type and Manifold type are available.

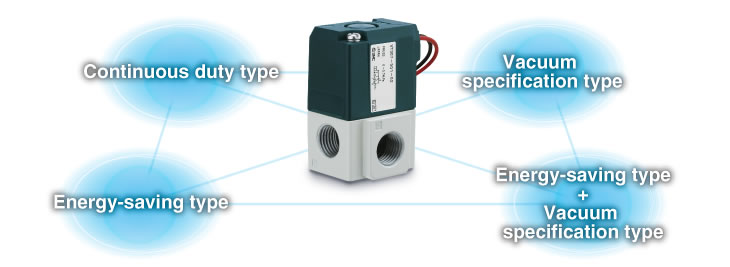

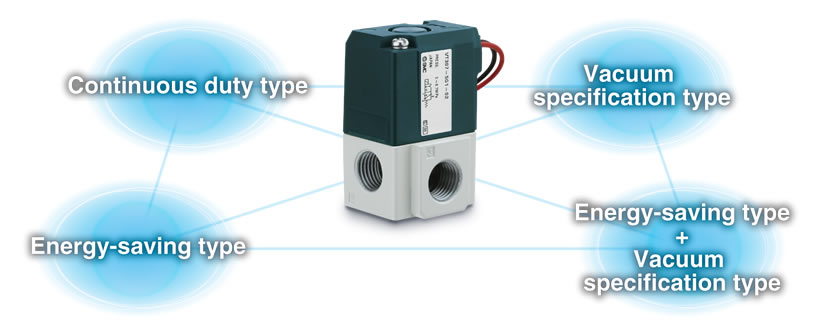

A variety of valve options

Continuous duty type, Energy-saving type, Vacuum specification type, Energy-saving type + Vacuum specification type

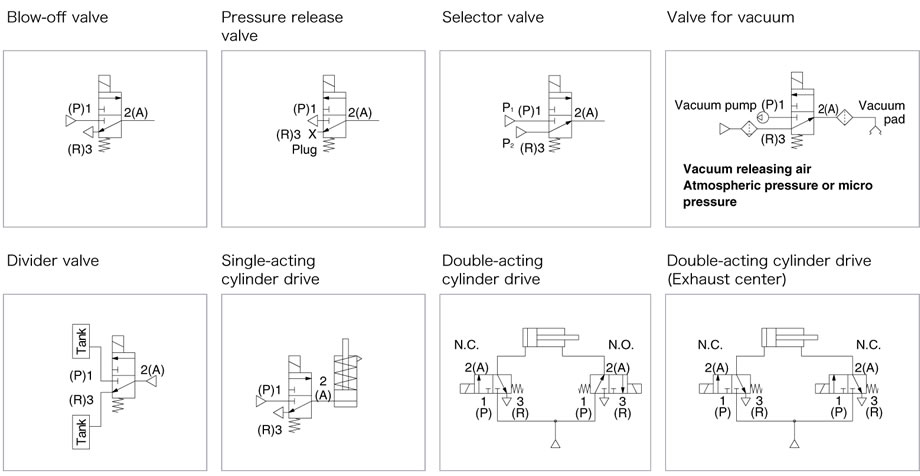

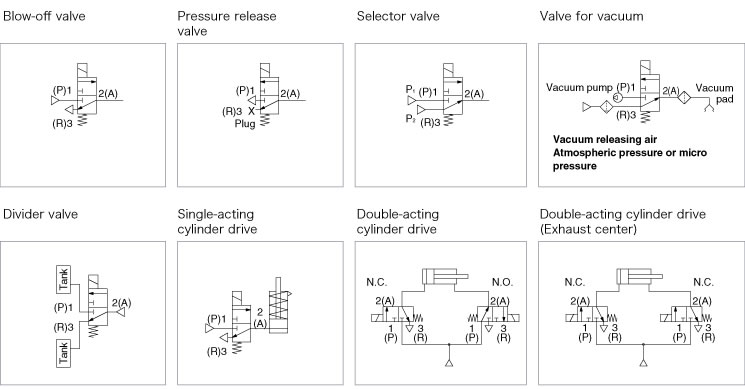

■Application examples

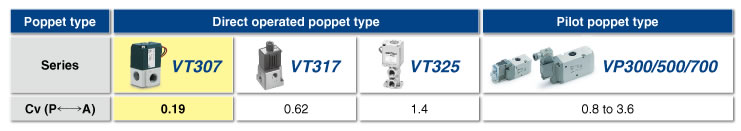

■Variations
