3-Port 3-Position Valve VEX3

Description

・The intermediate stopping of cylinders up to ø125 is possible.
・Power consumption: 1 W

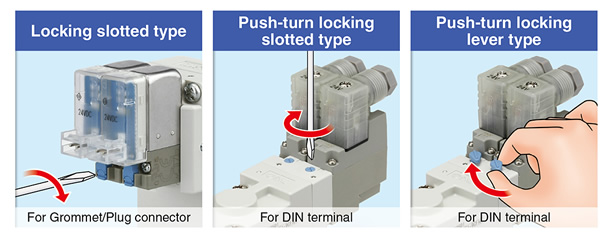

・4 Manual override options:
　Non-locking push type
　Locking slotted type
　Push-turn locking slotted type
　Push-turn locking lever type

Other Data :
> Safety Instructions
> 3/4/5 Port Solenoid Valves/Precautions
> Green Procurement (RoHS)

Product Number Check Download Catalogs

Technical Data
Features

Technical Data

Features

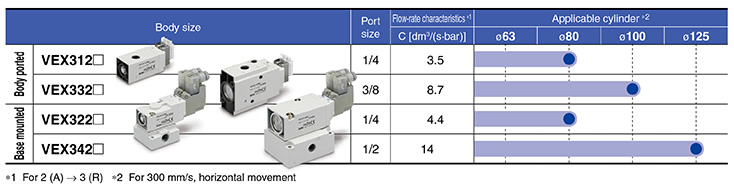

■Intermediate stopping of cylinders up to ø125 is possible

* For VEX332 □ , VEX342 □ , 300 mm/s, horizontal movement

■Power consumption: 1 W

■3 Manual override options added

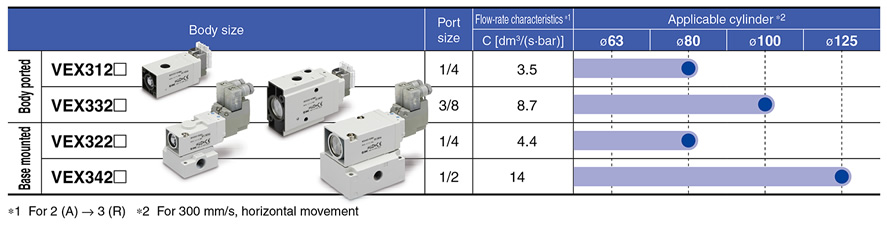

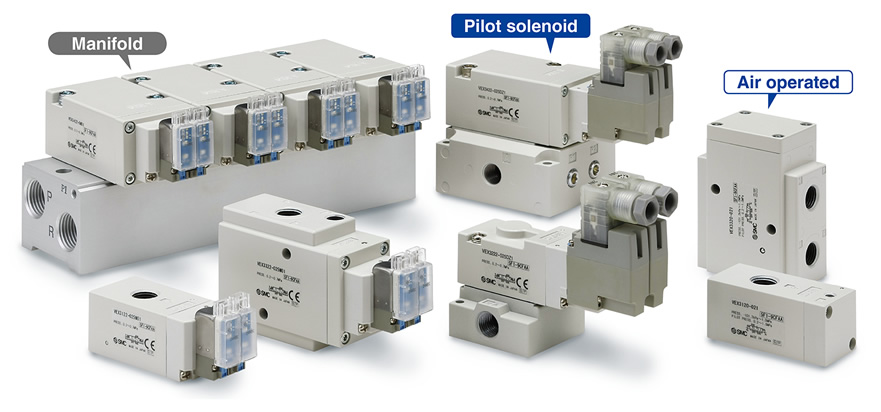

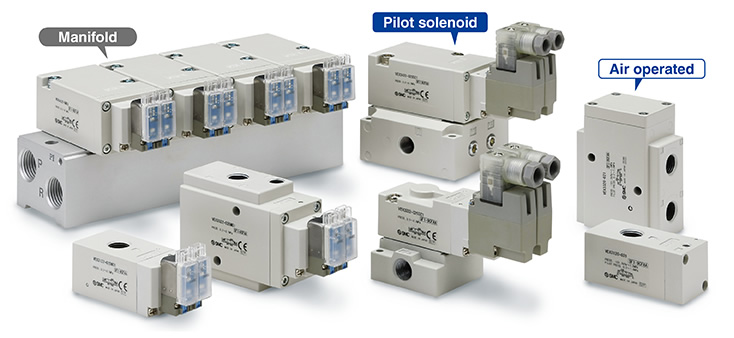

■Variations

■Applications

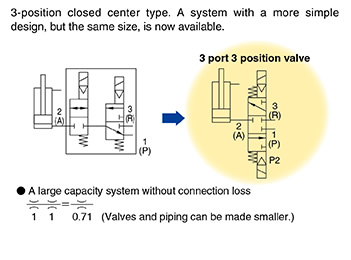

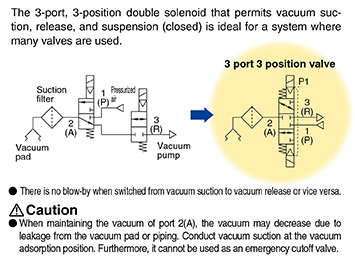

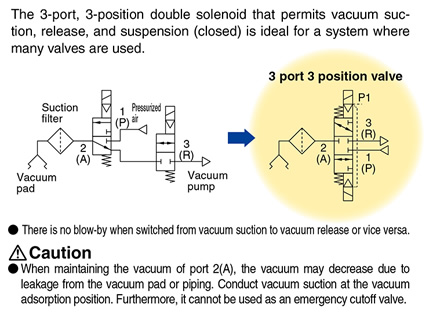

Vacuum suction and release

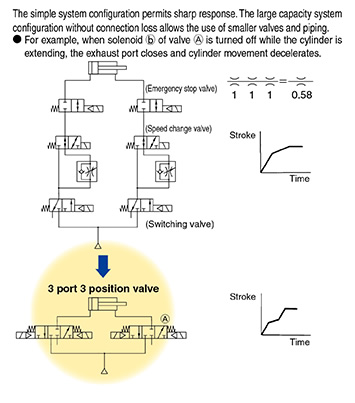

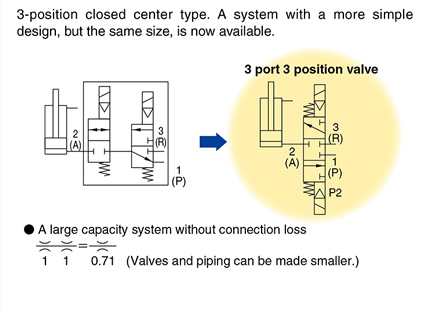

Intermediate cylinder stops

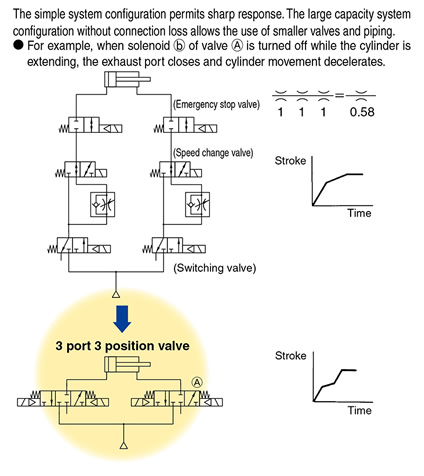

Terminal deceleration and an intermediate speed change circuit can be produced easily.

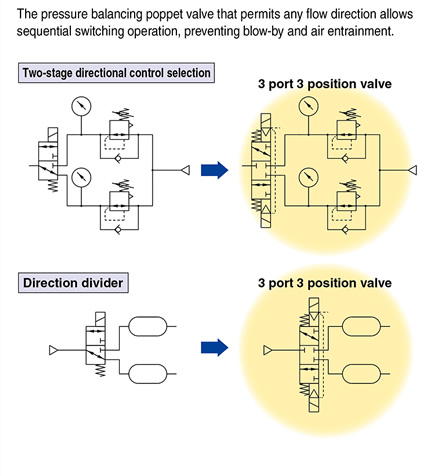

Universal porting could be used as a selector/divider valve.

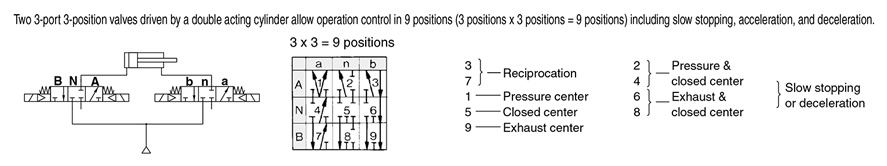

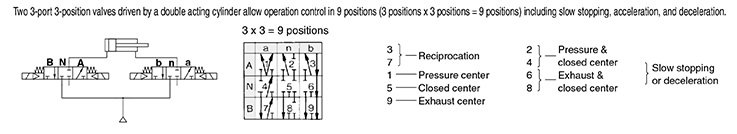

For operation control of double acting cylinders
