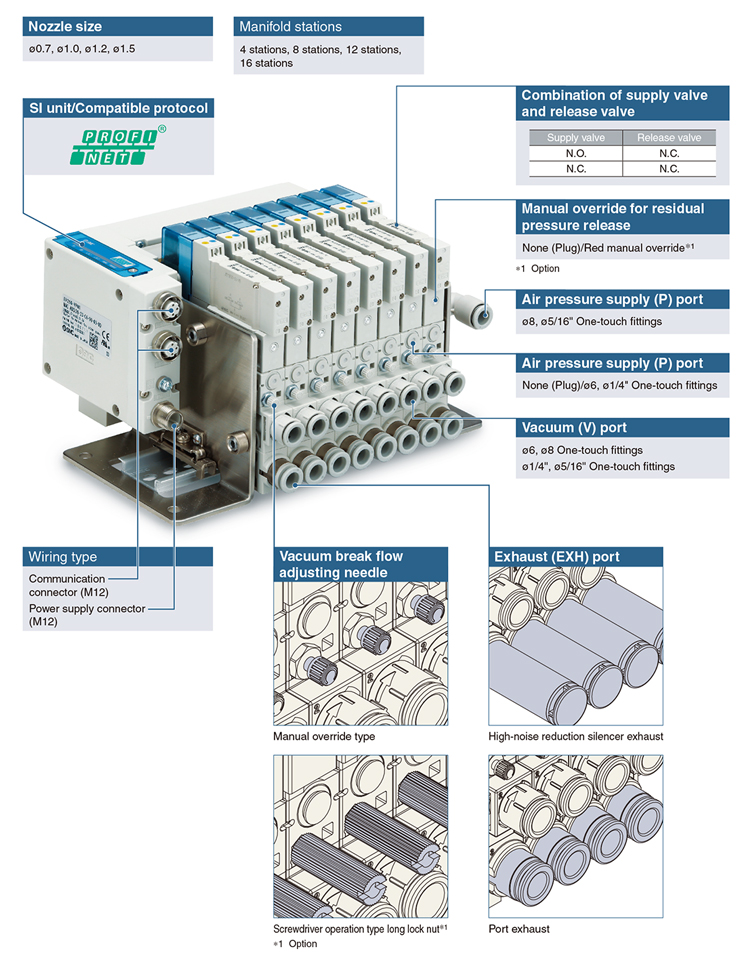

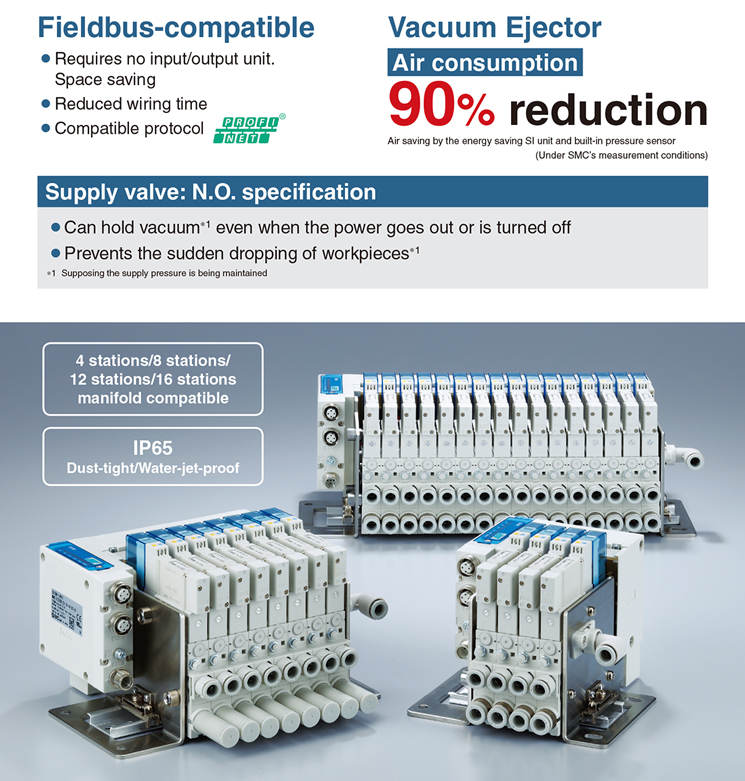

Vacuum Manifold for Fieldbus System ZKJ


 Requires no input/output unit. Space saving
 Reduced wiring time
 Compatible protocol: PROFINET
・Energy saving ejector: Air consumption reduced by 90%
・Supply valve: N.O. specification
 Can hold vacuum even when the power goes out or is turned off
  (Supposing the supply pressure is being maintained)
 Prevents the sudden dropping of workpieces
  (Supposing the supply pressure is being maintained)
・IP65: Dust-tight/Water-jet-proof

Other Data :
> Safety Instructions

> Electric Actuators/Precautions
> Series Variations/Model Selection
> Green Procurement (RoHS)

Product Number Check

Download Catalogs

Technical Data

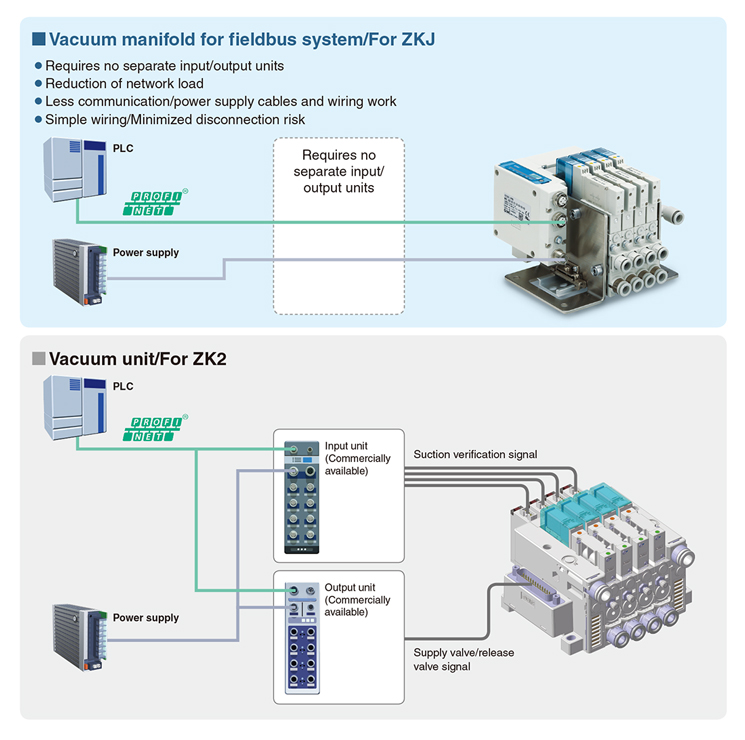

■Space saving/Less wiring work

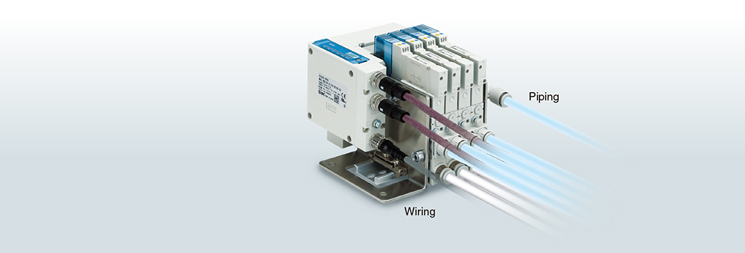

■Wiring and piping are integrated on one side.

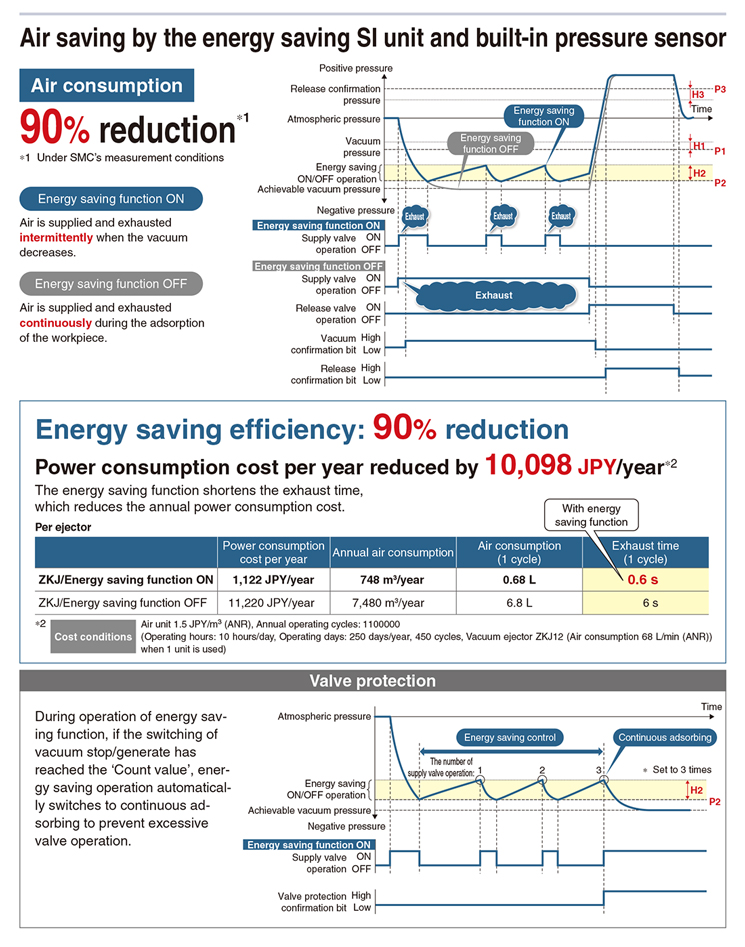

■Energy saving

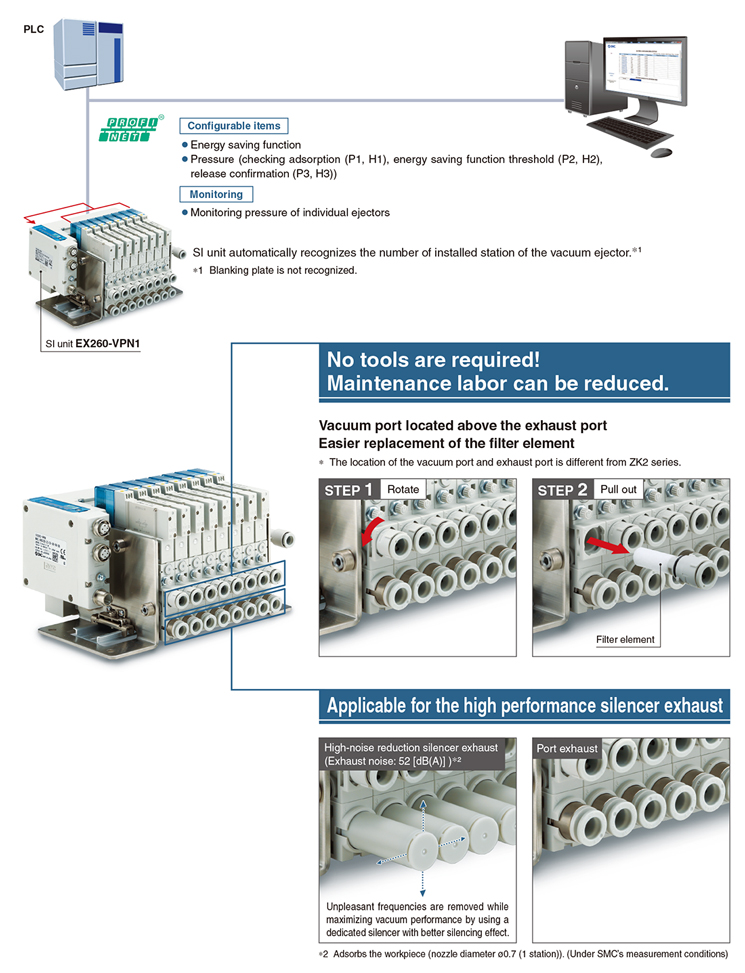

■Remote control and monitoring are available.


■PROFINET Compatible

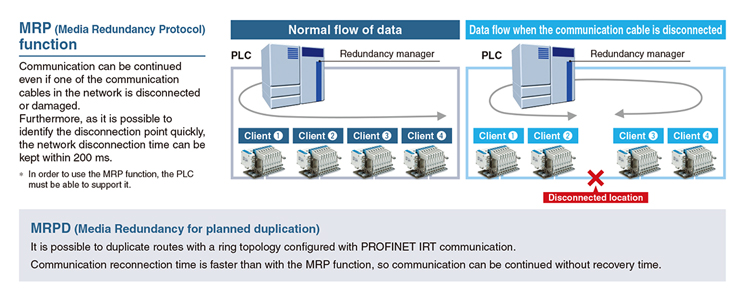

MRP/MRPD function

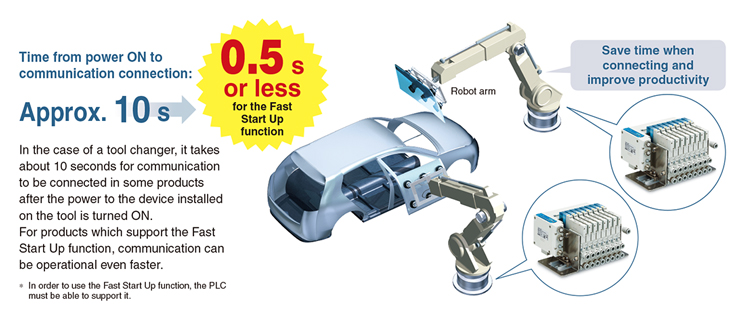

Fast Start Up function

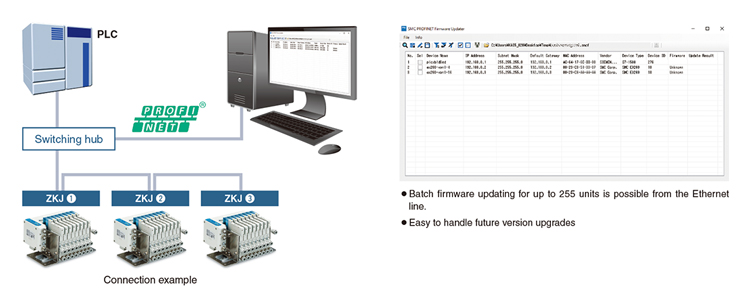

FW (firmware) updates

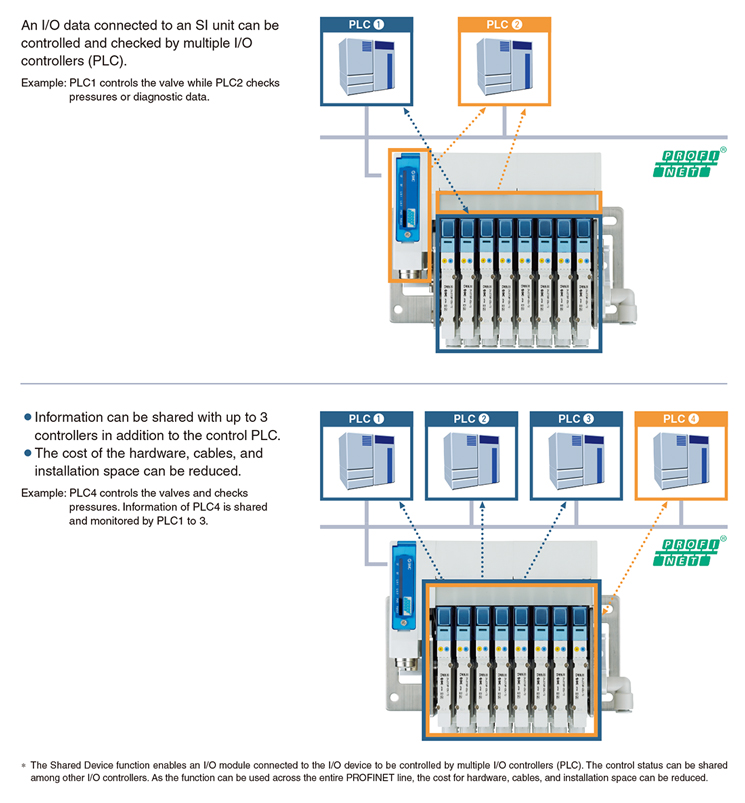

Shared Device function
