Thermo-dryer with Air Temperature Adjustment Function IDH□

Description

・Stable supply of temperature and pressure controlled dry clean air
　Can supply compressed air with the same conditions and quality regardless of the season

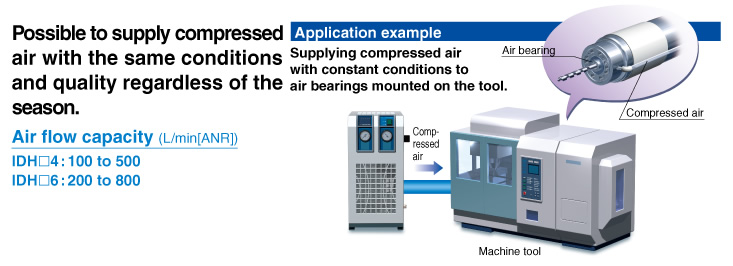

・Application example:
　Supplying compressed air with constant conditions to air bearings mounted on a tool
・Built-in filter
　Nominal filtration: 0.01 μm (99.9% filtration efficiency)
　Outlet oil mist concentration: Max. 0.01 mg/m³ (ANR)
　Outlet cleanliness: Particles of 0.3 μm or more: 3.5 particles/L (ANR) or less
・Compatible with power supplies from around the world Single-phase 100, 200,
　230 VAC (50/60 Hz)

Other Data :
> Safety Instructions
> Air Preparation Equipment/Precautions
> Model Selection Guide/Quick Reference Guide
> Green Procurement (RoHS)

Product Number Check

Download Catalogs

Categories: Products List, Air Temperature Controllers, Temperature Control Equipment

Technical Data
Features

Technical Data

Features

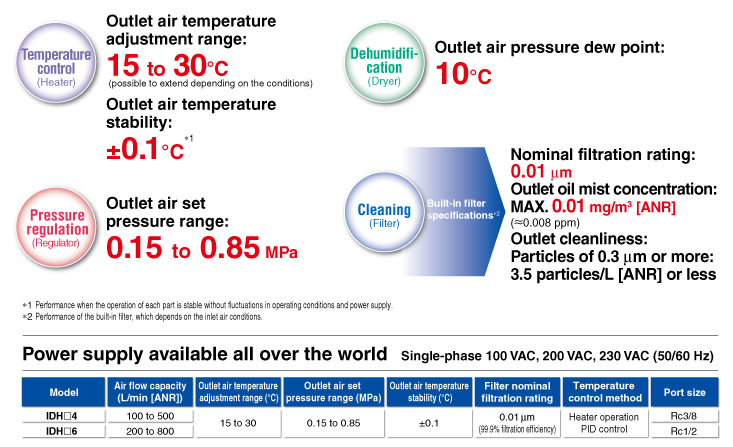

■Stable supply of temperature and pressure controlled dry clean air!

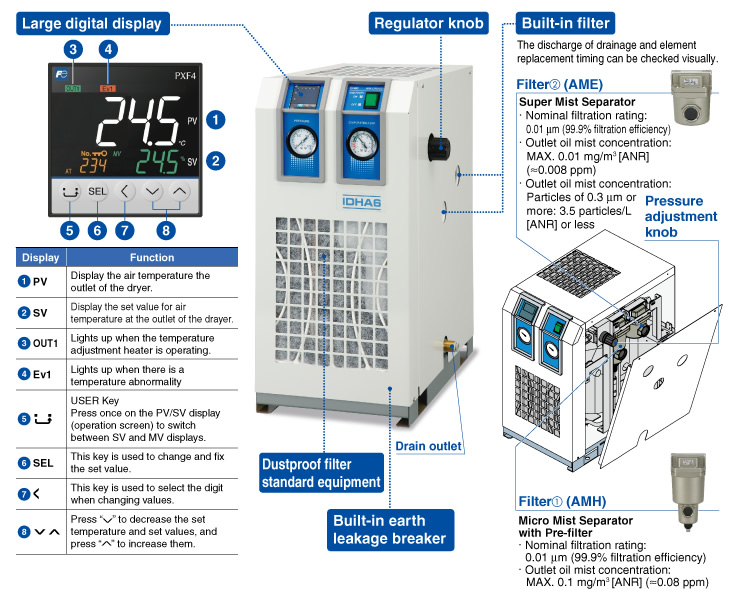

■All-in-One

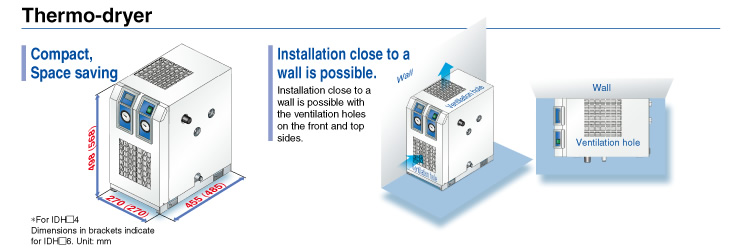

■Compact, Space saving

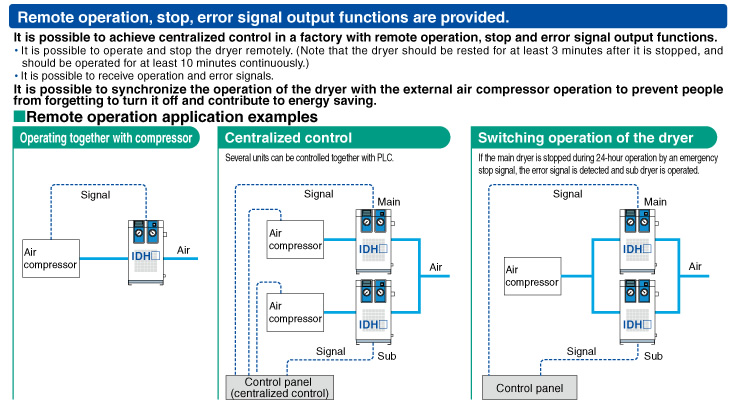

■Convenient Functions

Power failure auto-restart function

Even if operation is stopped by unexpected power failure, once the power supply is recovered, the operation will start automatically.
* If an instantaneous power failure occurs, the operation may restart after a few minutes.

Control temperature failure alarm

If the temperature exceeds the set temperature by an arbitrary amount, an error signal will be generated.
* At shipment, if the control temperature exceeds or goes under the set temperature by ±5ºC, an error signal will be generated.

Auto-tuning (A·T) function

The control set values (PID) are automatically set.

Key-lock function

The set value is protected so it will not be changed even if keys are touched by mistake or setting is changed.

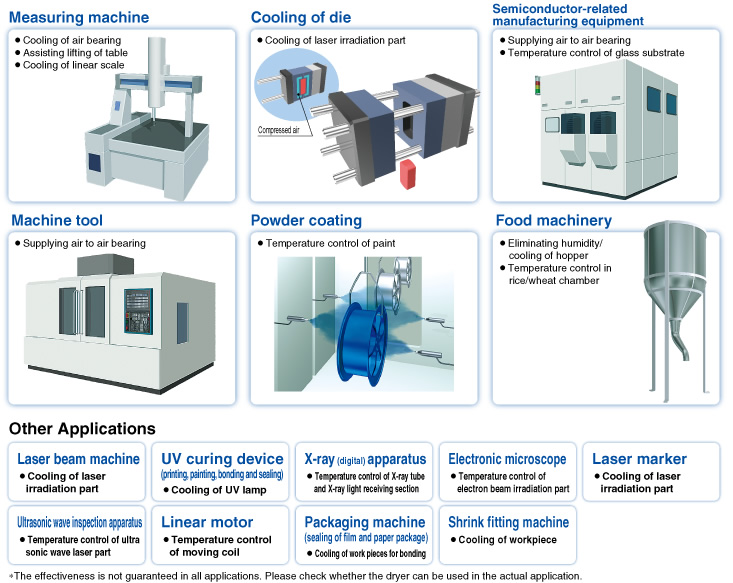

■Application Examples
