Step Motor Controller JXCE1/91/P1/D1/L1/M1

Description

・EtherCAT, EtherNet/IP™, PROFINET, DeviceNet™,
　IO-Link, and CC-Link compatible
・Two types of operation command:
　Step no. defined operation, Numerical data defined operation
・Transition wiring of communication cables
・Numerical monitoring available
・IO-Link communication can be performed.

Other Data :
> Safety Instructions
> Electric Actuators/Precautions
> Features
> Series Variations
> Simplified Selection Flow Chart
> Green Procurement (RoHS)
> CE/UL-compliance List

Product Number Check

Setting Software

Download Catalogs

Categories: , ,

Technical Data

Features

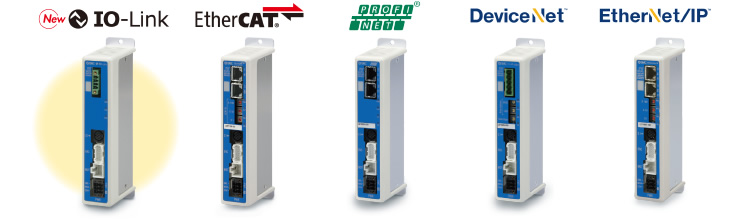

■5 types of communication protocols

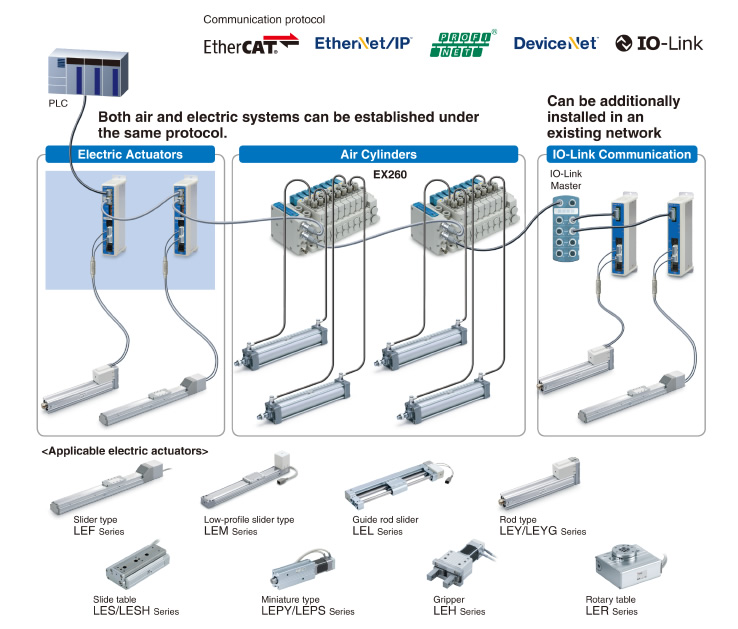

■Both air and electric systems can be established under the same protocol.

■Two types of operation command

Step no. defined operation: Operate using the preset step data in the controller.
Numerical data defined operation: The actuator operates using values such as position and speed from the PLC.

■Numerical monitoring available

Numerical information, such as the current speed, current position, and alarm codes, can be monitored on the PLC.

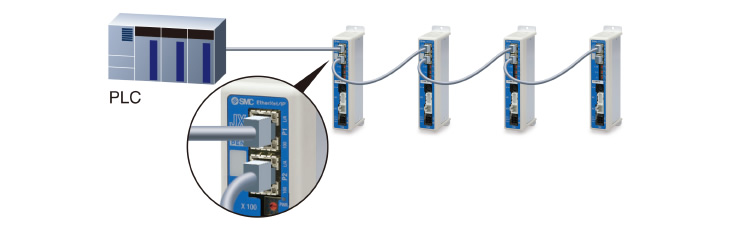

■Transition wiring of communication cables

Two communication ports are provided.

* For the DeviceNet™ type, transition wiring is possible using a branch connector.
* 1 to 1 in the case of IO-Link

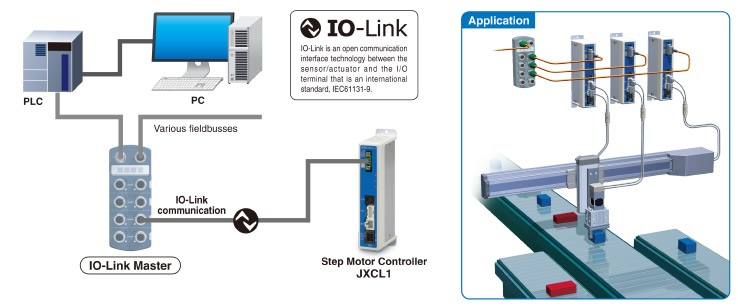

■IO-Link communication can be performed.

The data storage function eliminates the need for troublesome resetting of step data and parameters when changing over the controller.

●Step data and parameters can be set from the master side.

　Step data and parameters can be set or changed by means of IO-Link communication.

●Data storage function

　When the controller is changed, the parameters and step data for the actuator are automatically set.*1

●4-wire unshielded cables can be used.

*1 The “basic parameter” and the “return to origin parameter” are automatically set as the actuator parameters, and the 3 items of data consisting of No. 0 to 2 are automatically set as the step data.

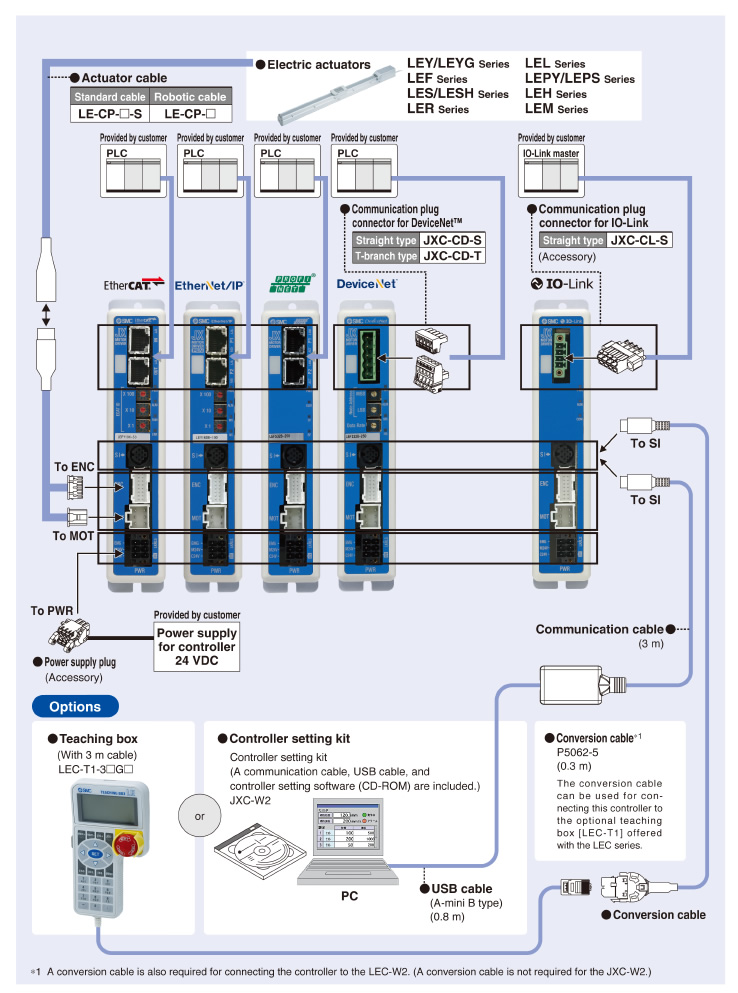

■System Construction

Related products
