Soft Start-up Valve AV2000-A/3000-A/4000-A/5000-A

Description

・Start-up valve for low-speed air supply to gradually raise
　the initial pressure in an air system and for quick exhaust
　by cutting off the air supply

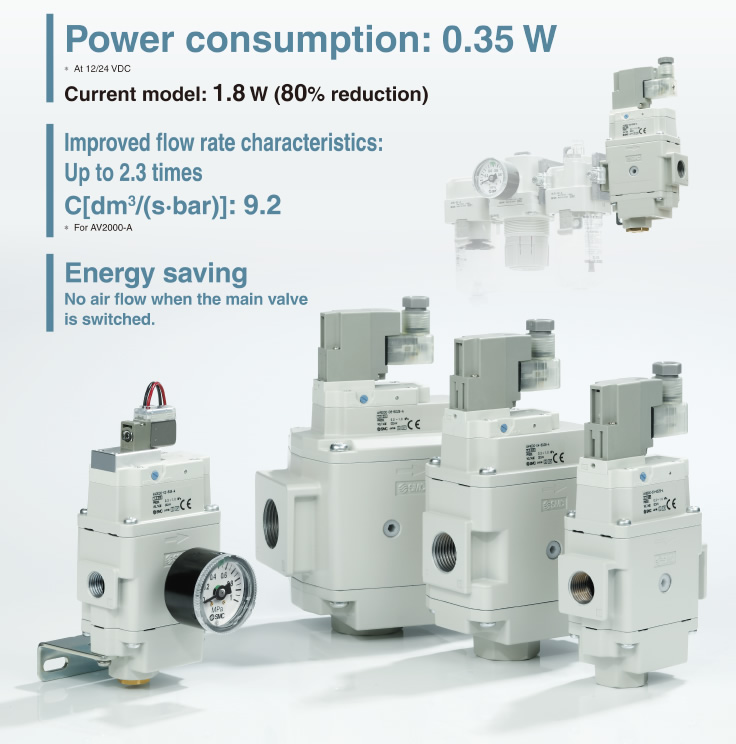

・Power consumption: 0.35 W
・Improved flow rate characteristics: Up to 2.3 times
　that of the existing model C [dm³/(s·bar)]: 9.2
・Energy saving: No air flow when the main valve is switched
・Improved adjustability at low-speed air supply
・Smaller profile and reduced labor due to integrated silencer

Other Data :
> Safety Instructions
> F.R.L. Units/Precautions
> Green Procurement (RoHS)

Product Number Check

Download Catalogs

Categories: Modular F.R.L., Products List, Modular F.R.L. ⁄ Pressure Control Equipment

Technical Data
Features

Technical Data

Features

■Soft Start-up Valve

Start-up valve for low speed air supply to gradually raise initial pressure in an air system and for quick exhaust by cutting off air supply

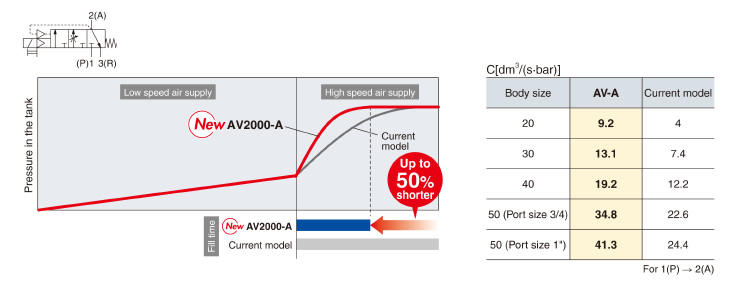

■Improved flow rate characteristics^*: Up to 2.3 times

C[dm³/(s·bar)]: 9.2

* For AV2000-A

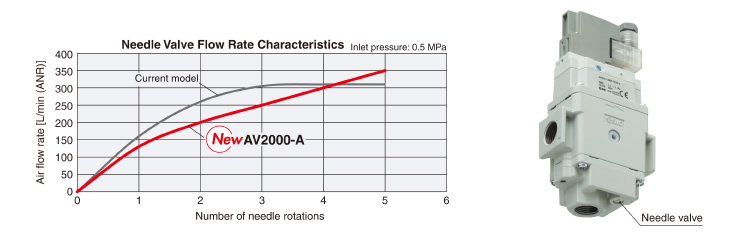

■Improved adjustability at low speed air supply

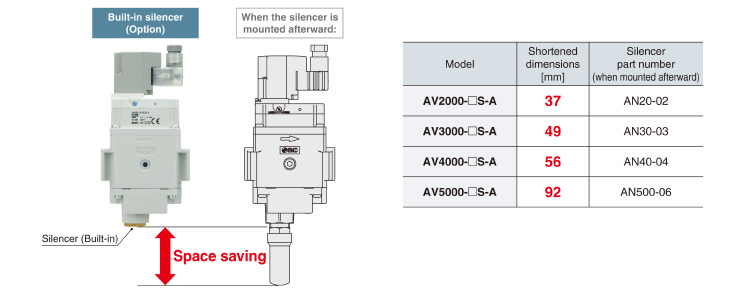

■Smaller profile and less work hours due to integrated silencer

■Energy saving

When switching the main valve (exhaust R low speed air supply), the flow passage to port 3(R) is closed with the main valve. Therefore, air does not blow out to the outside.

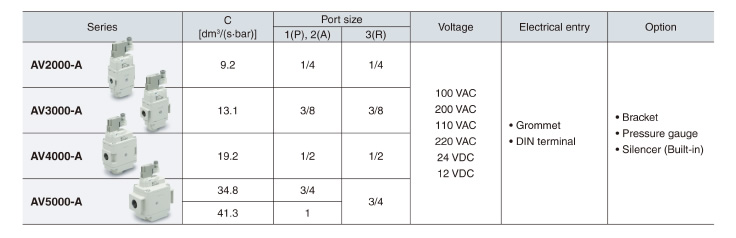

■Variations

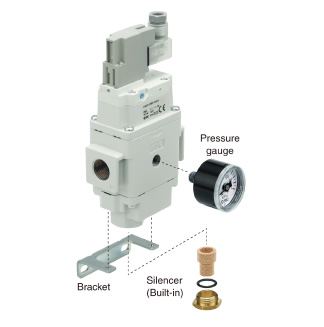

■Options

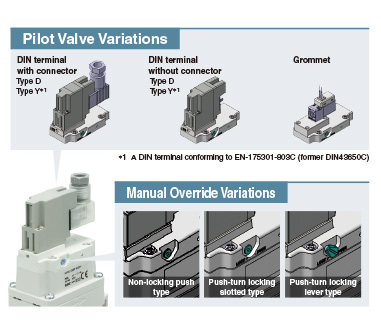

■Pilot Valve Variations,
Manual Override Variations

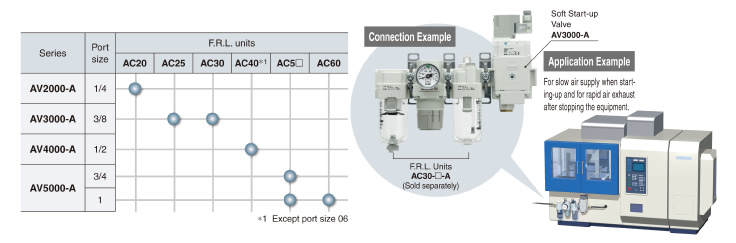

■Combination with F.R.L. Units

Simple Specials System

Unit with F.R.L is available with the simple special ordering system. The lead time is almost the same as the standard product. Please contact your local sales representative for more details.
