Rotary Clamp Cylinder MK

Description

・The allowable moment of inertia is 3 times higher.
　(The same as the heavy-duty MK2 series)
・It is possible to mount small auto switches on 4 surfaces.
・Mounting dimensions are interchangeable with the MK series.
・Consolidated to the new MK series and renewed

Other Data :
> Safety Instructions
> Actuators/Precautions
> Auto Switches/Precautions
> Model Selection/Technical Data
> Made to Order Common Specifications
> Green Procurement (RoHS)

Product Number Check

Made to Order Common Specifications

Download Catalogs

Categories: , ,

Technical Data

Features

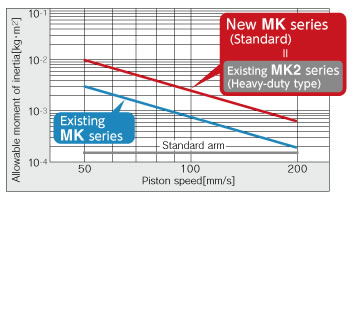

■Allowable moment of inertia 3 times higher

Allowable moment of inertia is the same as the heavy-duty MK2 series.
Allowable Moment of Inertia (32 mm, 40 mm)

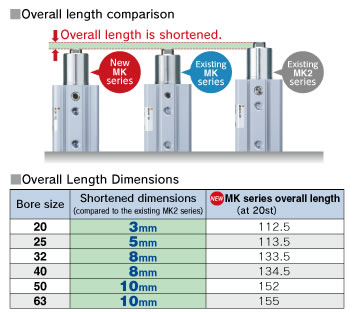

■Overall length is shortened.(equivalent to the MK series)

3 to 10 mm shorter than the MK2 series,
making the product more compact.

■Consolidated to the New MK series and renewed!

Overall length is the same as the existing products!
Mounting dimensions are interchangeable with the MK series.

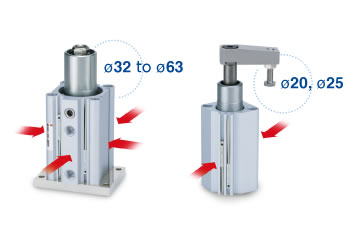

■Possible to mount small auto switches on 4 surfaces

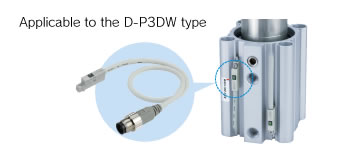

・Auto switches can be mounted on any of the 4 surfaces to suit the installation conditions
(2 surfaces for 20 mm、 and 25 mm).
・No projection of auto switch

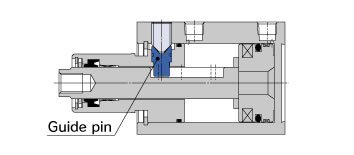

■Maintenance can be performed for all sizes.

Seal kit and guide pin are replaceable.

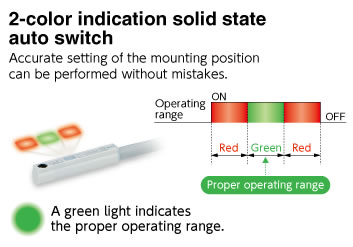

■Magnetic field resistant auto switch can be used.

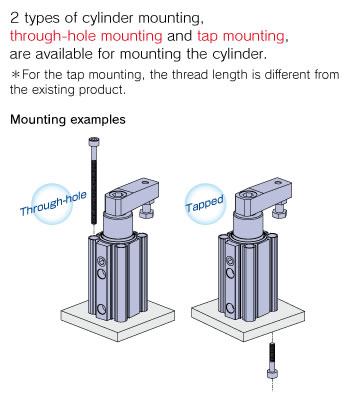

■Mounting method

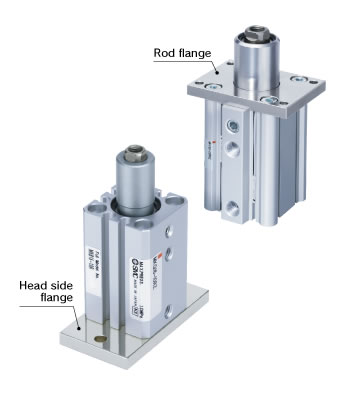

Flange mounting

Direct mounting

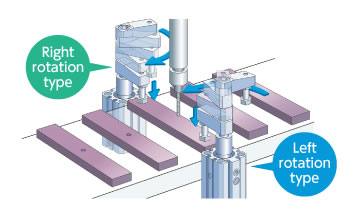

■Clamping rotary direction can be selected from 2 types.

Clamping rotary direction can be selected to suit the setting conditions.
