Pallet Lock Cylinder W-R1/W-R3

Description

・Centering applied to correct positional deviation of
　up to ±50 mm
・Through the toggle mechanism, max. clamping force of
　4430 N
・Arm opening angle: Approx. 70°
・The integration of the clamping unit and cylinder unit reduces
　design and assembly labor.

Other Data :
> Safety Instructions
> Actuators/Precautions
> Model Selection/Technical Data
> Green Procurement (RoHS)

Product Number Check

Download Catalogs

Categories: , ,

Technical Data

Features

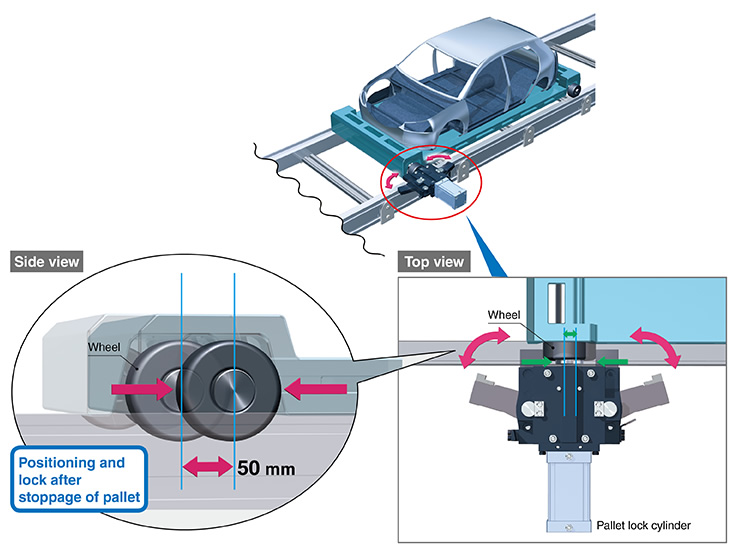

■Centering applied to correct positional deviation of up to ±50 mm

■Through the toggle mechanism, max. clamping force of 4430 N

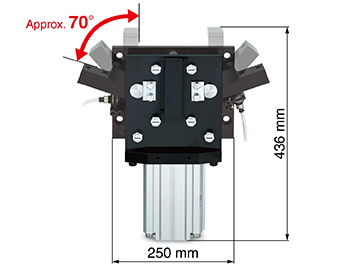

■Arm opening angle: Approx. 70°

A wide arm opening angle prevents contact with the workpiece.
(Cylinder sliding is not necessary.)

*Values for W-R1 Series

■Integration of the clamping unit and cylinder unit reduces

design and　assembly labor

■Selectable when the mass of the transferred object is either 1000 kg or 3000 kg, with consideration given to the impact during positioning
