・Space saving: Total length reduced by 64% and capacity
by 70% (Compared to the CU series)
・With auto switch (CDUJ series: CDUJ)
Other Data :
> Safety Instructions
> Auto Switches/Precautions
> Model Selection/Technical Data
> Quick Selection Table
> Simple Specials
> Made to Order Common Specifications
> Green Procurement (RoHS)

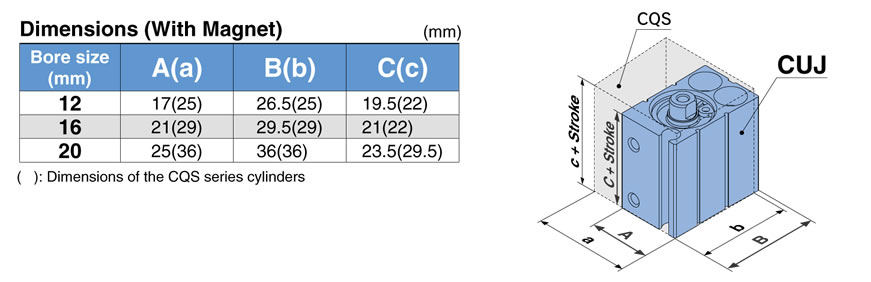

Full length is shortened by up to approx. 20%.
Volume is reduced by up to approx. 45%.

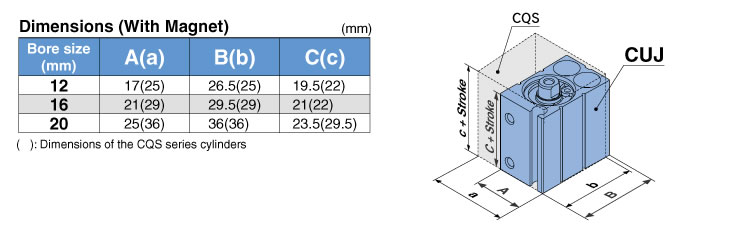

(Compared with the CQS series cylinders, double acting, with magnet)

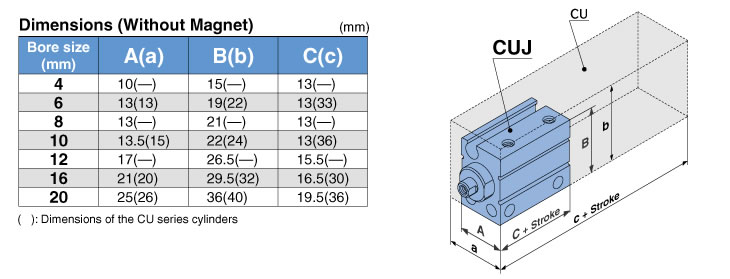

Full length is shortened by up to approx. 64%.
Volume is reduced by up to approx. 70%.

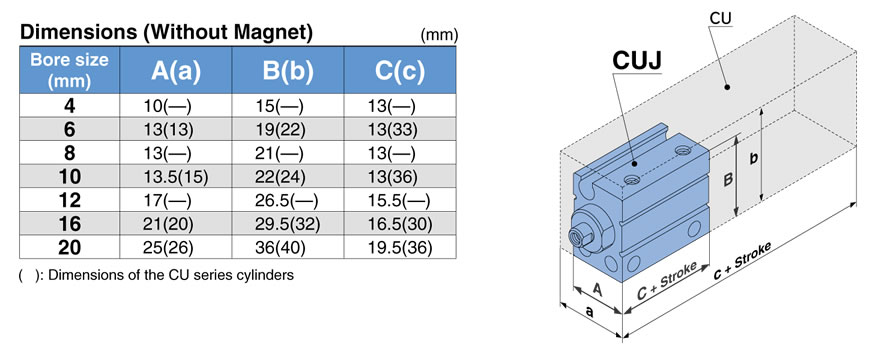

(Compared with the CU series cylinders, double acting, without magnet)

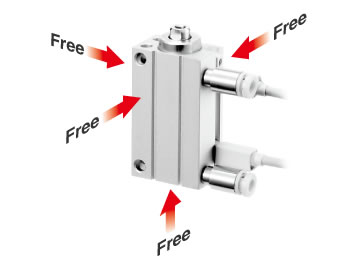

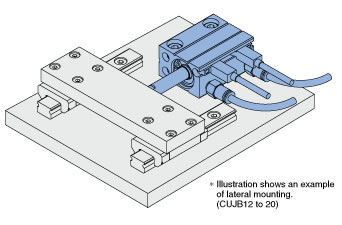

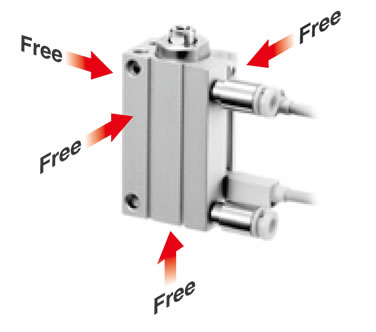

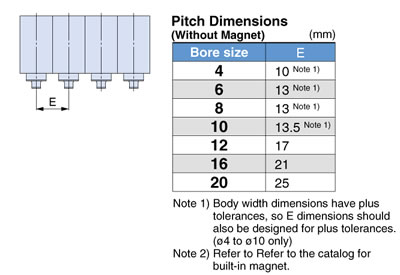

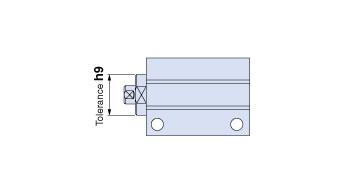

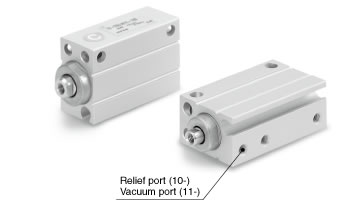

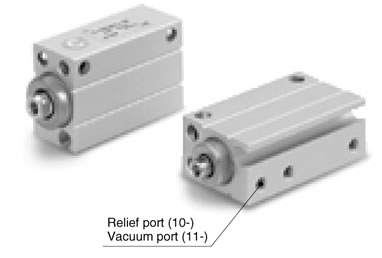

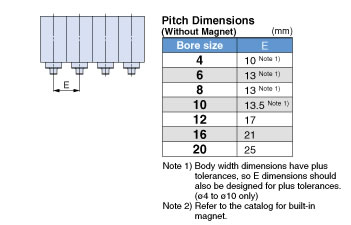

■Concentrates wiring and piping on one side
Allows more efficient installation, since four directions can be used freely.

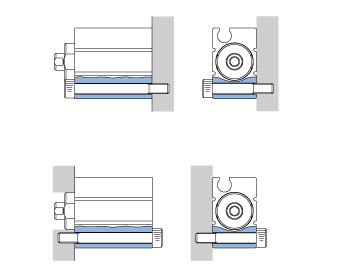

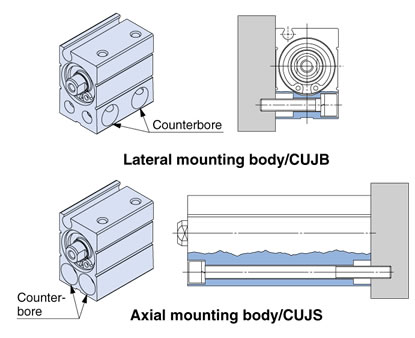

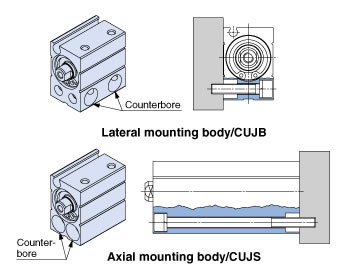

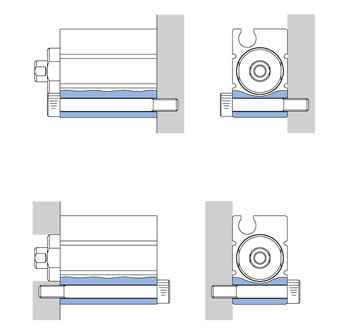

■With counterbore for mounting (ø12 to ø20)
2 kinds of bodies are available.
There is no protrusion for a mounting bolt.

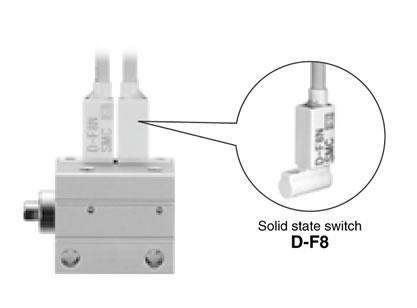

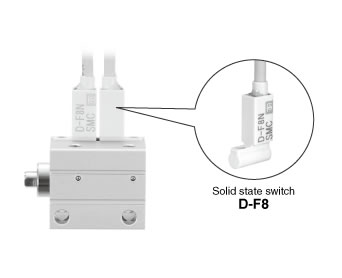

■Two auto switches can be installed even for a 4 mm stroke.*
* ø12 to ø20 are available starting from a 5 mm stroke.

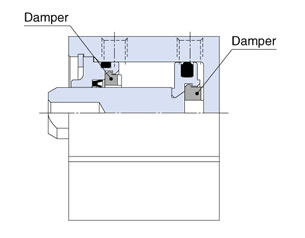

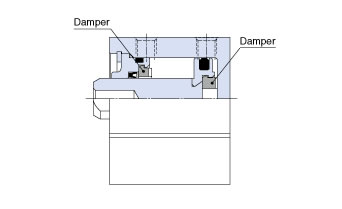

■Easy seal replacement

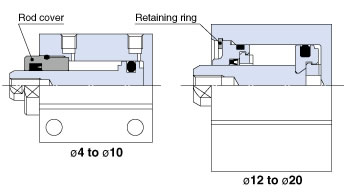

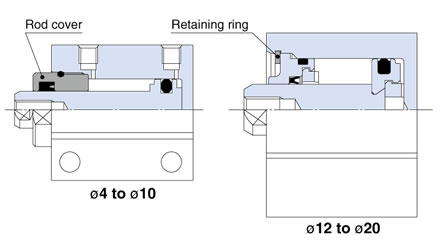

Seals can be replaced easily by just removing the rod cover (ø4 to ø10) or retaining ring (ø12 to ø20).
