Low Speed Cylinder CJ2X/CM2X/CQSX/CQ2X/CUX

Description

・Reduces adhesion/quick extension
・Smooth operation is possible even at 0.5 mm/s.
　(1 mm/s for ø16 or smaller)
・The minimum operating pressure has been reduced by half.
　(Compared to the previous version)
・Improved functions (The new structure is equivalent to
　the standard models.)
・Interchangeable with the standard models
・With auto switch (CDJ2X-Z series: CDJ2X-Z, CDM2X-Z series: CDM2X,
　CDQSX series: CDQSX, CDQ2X series: CDQ2X, CDUX series: CDUX)

Other Data :
> Safety Instructions
> Actuators/Precautions
> Auto Switches/Precautions
> Model Selection/Technical Data
> Made to Order Common Specifications
> Green Procurement (RoHS)

Product Number Check

Download Catalogs

Categories: , ,

Technical Data

Features

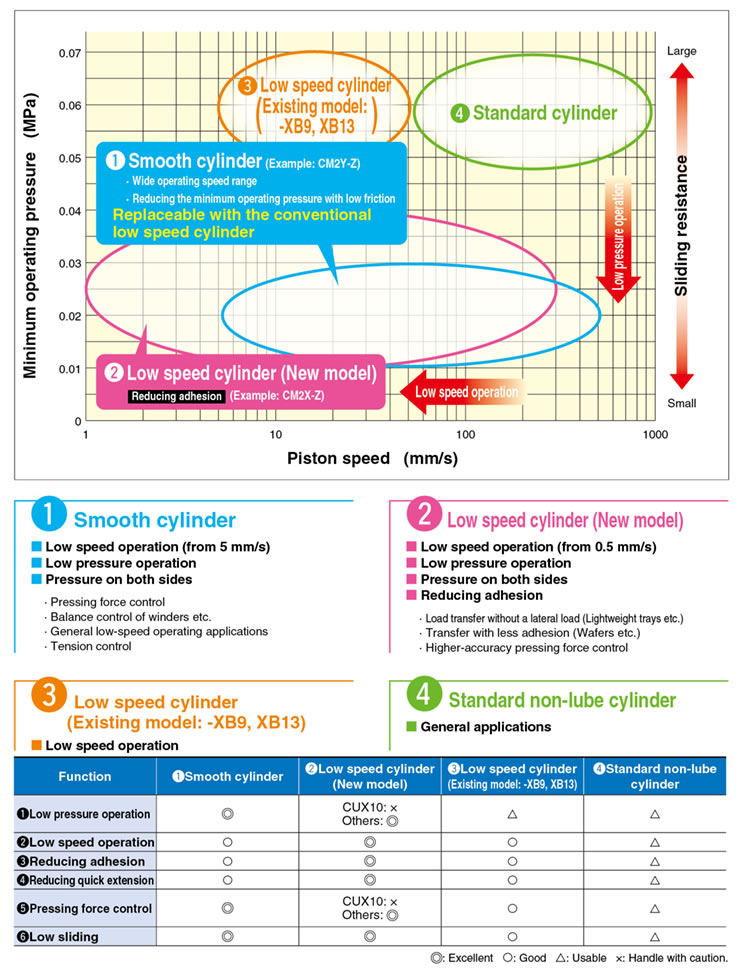

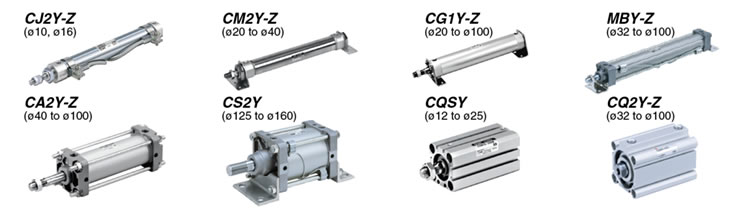

■Reducing stick-slip in a low speed range Smooth Cylinders Series C*Y

Stable operation possible even at a low speed of 5 mm/s (Measurement based on JIS B 8377)

Can be operated regardless of the direction of pressure.

Low sliding possible even in bi-directional operation

Lightweight/Improved functions (New structure equivalent to the standard models)

  • Better visibility for auto switches (only when the D-M9l/A9l are used in the CJ2Y-Z, CM2Y-Z, CG1Y-Z)
  • Female rod end available as standard (CG1Y-Z, CM2Y-Z, CQSY, CQ2Y-Z)

Interchangeable with the standard models

(CJ2Y-Z, CM2Y-Z, MBY-Z, CA2Y-Z, CS2Y)

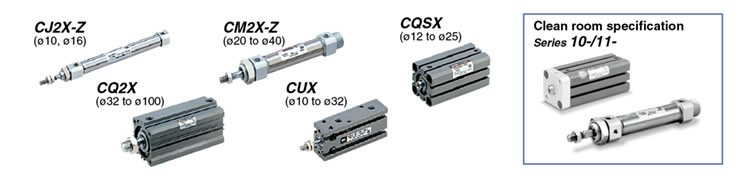

■Reducing adhesion/quick extension Low Speed Cylinders Series C*X

Smooth operation possible even at 0.5 mm/s (1 mm/s for ø16 or smaller)

Minimum operating pressure is reduced in half. (Compared to previous version)

The new structure has improved low friction characteristics. (CM2X-Z, CQSX, CQ2X)

Improved functions (New structure equivalent to the standard models)

  • Better visibility for auto switches (only when the D-M9l/A9l are used in the CJ2X-Z, CM2X-Z)
  • Female rod end available as standard (CM2X-Z, CQSX, CQ2X)

Interchangeable with the standard models

■Applicable Model Added

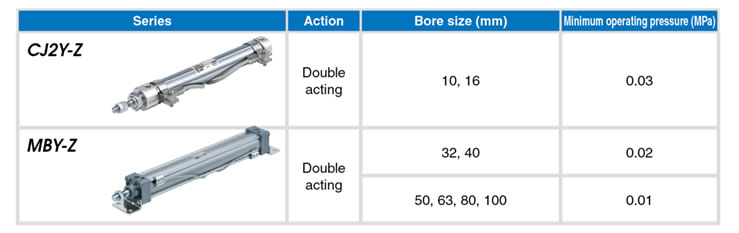

Added the CJ2Y-Z and MBY-Z series.
