High-Precision Digital Pressure Switch ISE7□/7□G


・IO-Link version V1.1
・Process data length 2-byte input
・Transmission speed COM2 (38.4 kbps)
・Minimum cycle time 2.3 ms
・IO-Link port type Class A

Other Data :
> Safety Instructions
> Pressure Switches/Flow Switches/Precautions
> Pressure Switch Series Variations/Application Example
> Glossary of Terms/Technical Information
> Green Procurement (RoHS)

Product Number Check

Download Catalogs

Technical Data

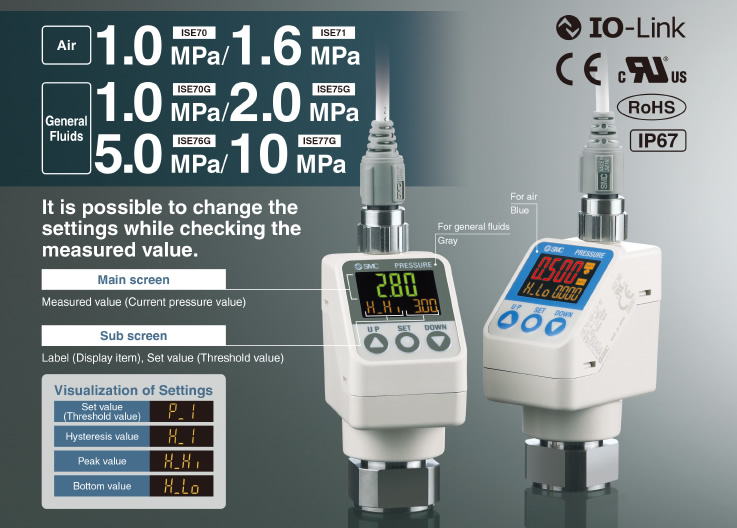

■It is possible to change the settings while checking the measured value.

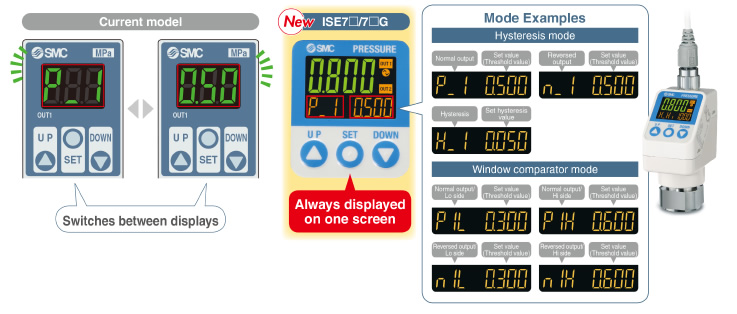

■Visualization of Settings

The sub screen (label) shows the item to be set.

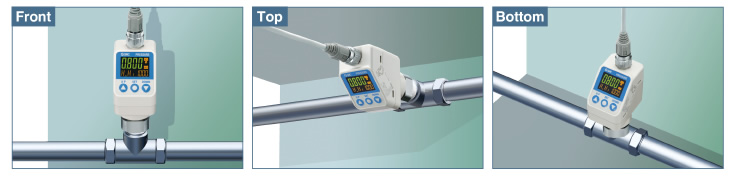

■Angled display

Good visibility from various mounting positions

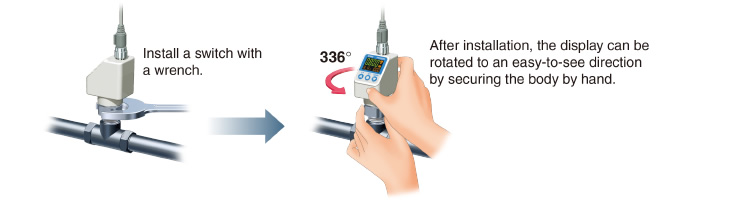

■Rotating display

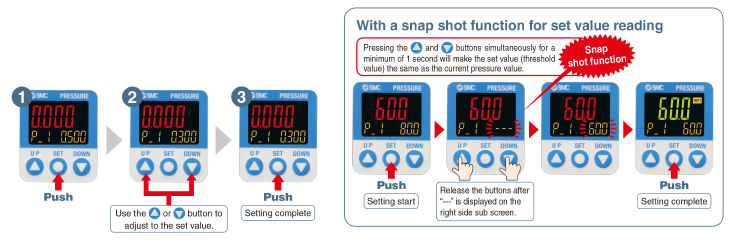

■Simple 3-Step Setting

When the SET button is pressed and the set value (P_1) is being displayed, the set value (threshold value) can be set.
When the SET button is pressed and the hysteresis value (H_1) is being displayed, the hysteresis value can be set.

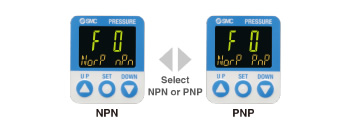

■NPN/PNP Switch Function

Both NPN and PNP are available.The number of stock items can be reduced.

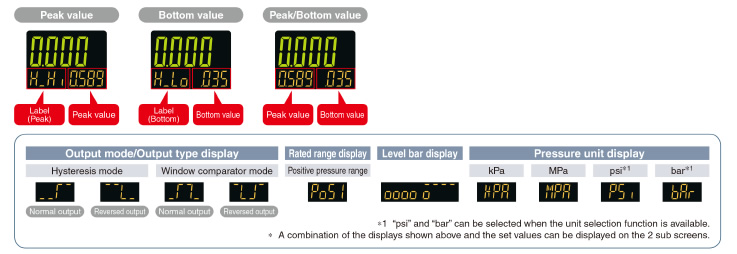

■Other Sub Screen Display

The peak value, bottom value, or both values can be displayed on one screen!

* Peak and bottom values are maintained even if the power supply is cut.

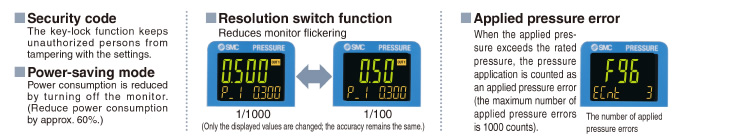

■Convenient Functions

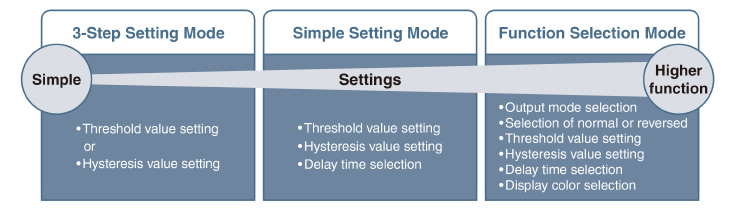

■3 Setting Modes

Select the setting mode that best meets your needs.

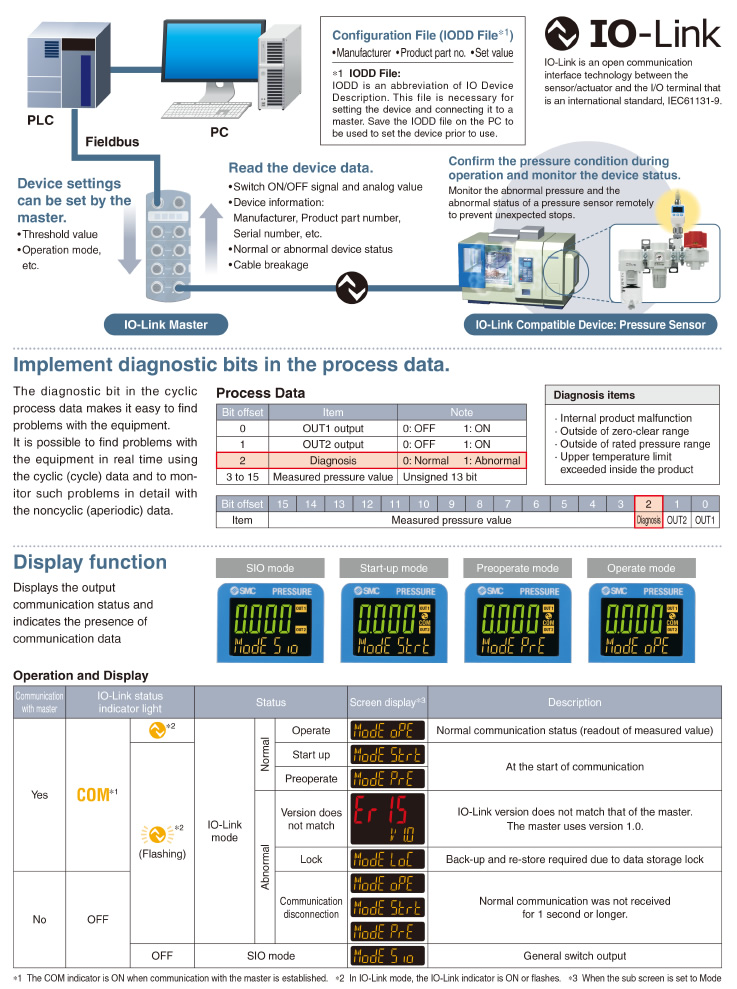

■IO-Link Compatible

Visualization of operation/equipment status/Remote monitoring and control by communication

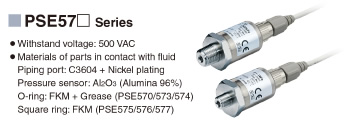

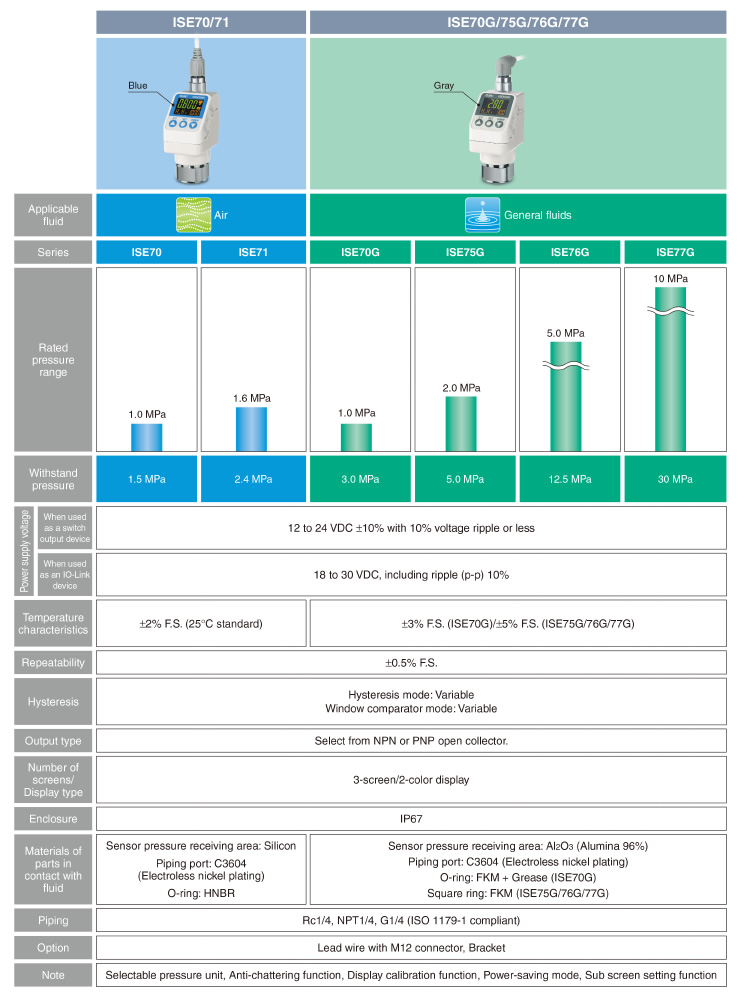

■Introduction of Series

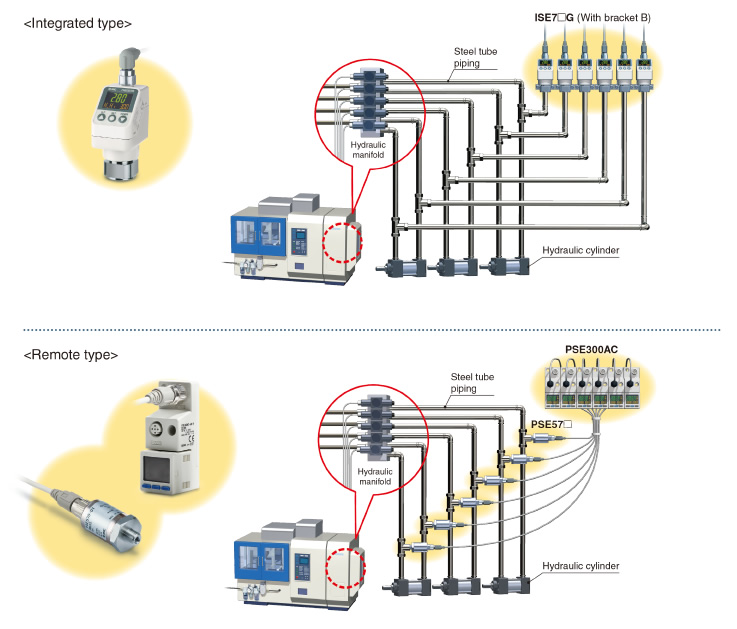

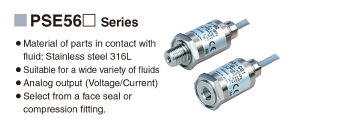

■For General Fluids: Remote Type Variations

■Select either the integrated type or the remote type according to the application.
