Description

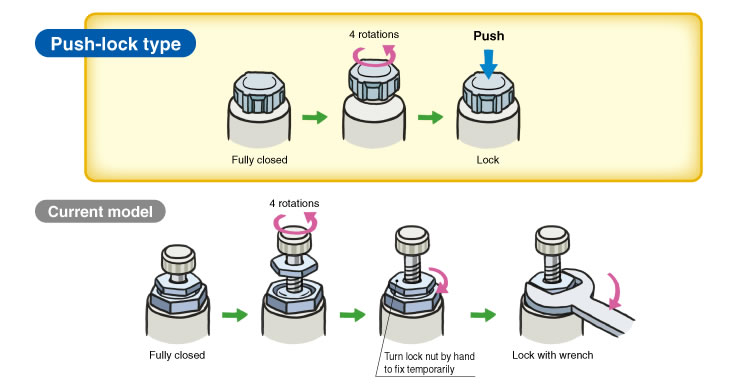

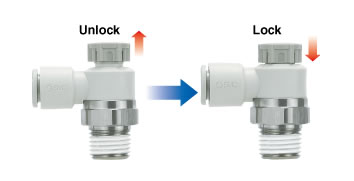

・Easy to lock push-lock type

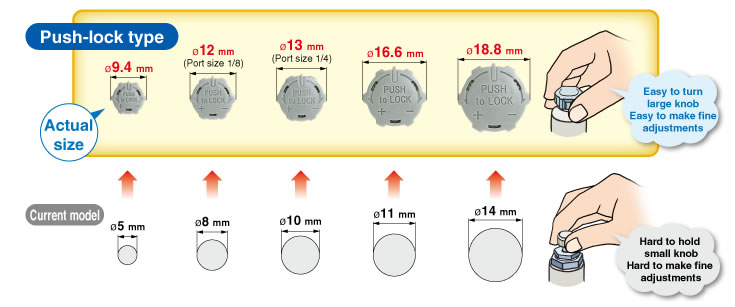

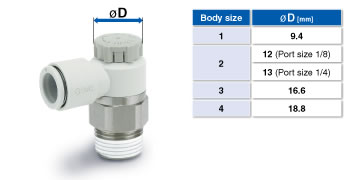

・Larger knob
・Improved tube insertion/removal
　Insertion force: Max. 30% (8 N) reduction
　Removal force: Max. 20% (5 N) reduction*
　* Tube removal strength is ensured to be equivalent to the previous model.
・Electroless nickel plated type is standard.

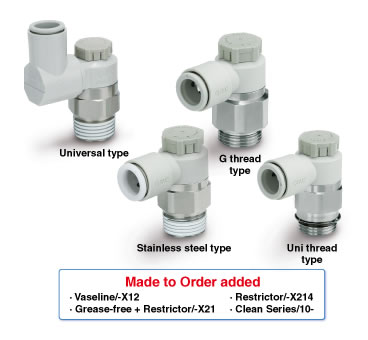

・360° swivel piping is possible. (Universal type)
・Available with a restrictor (Made to order: -X214, -X21)
・Large flow type (-X778)
