Digital Flow Switch for Water PF3W7□-X445


・IO-Link version V1.1
・Process data length 6-byte input
・Transmission speed COM2 (38.4 kbps)
・Minimum cycle time 3.5 ms
・IO-Link port type Class A

Other Data :
> Safety Instructions
> Pressure Switches/Flow Switches/Precautions
> Flow Switch Series Variations
> Green Procurement (RoHS)

Product Number Check

Download Catalogs

Technical Data

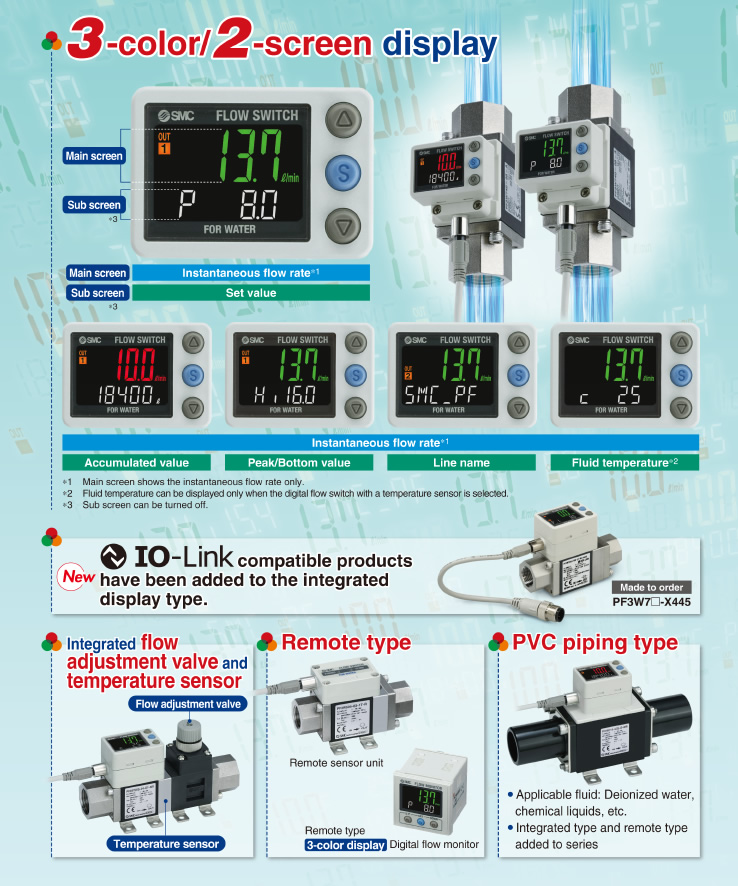

■3-Color Display Digital Flow Switch for Water

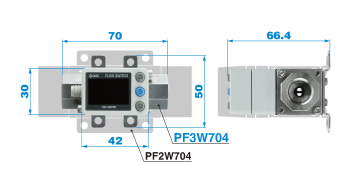

■40% smaller than the current product

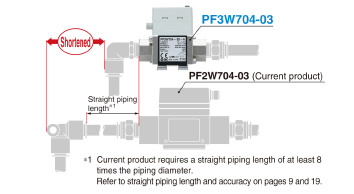

■Reduced required piping space

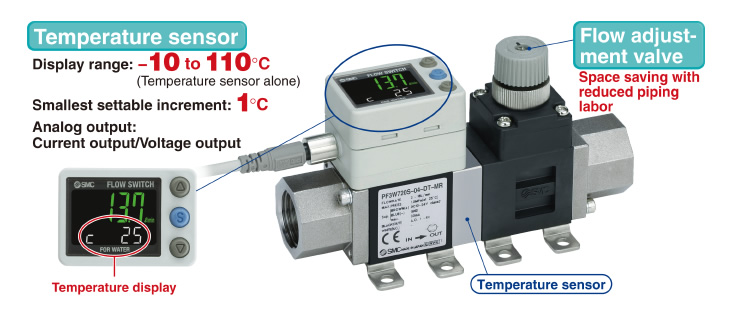

■Temperature sensor, Flow adjustment valve

■Fluid temperature: 0 to 90°C


■Ethylene glycol aqueous solution can be used.

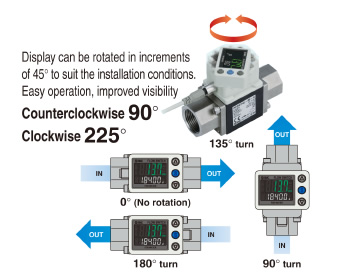

■Rotatable display

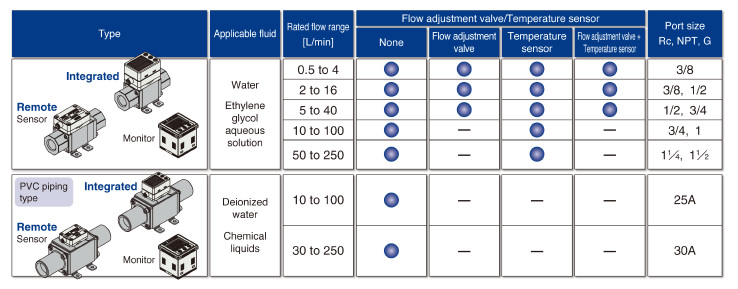

Added: Measured flow rate 250 L/min type

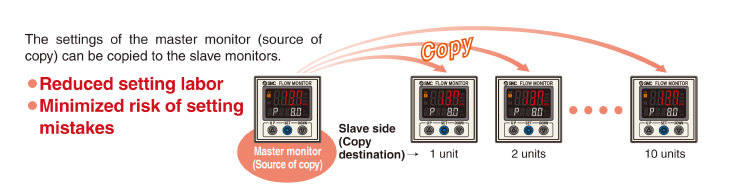

■3-color display Digital flow monitor: The set value can be copied to up to 10 flow monitors simultaneously


Visually check the status of the sensor via the indicator.

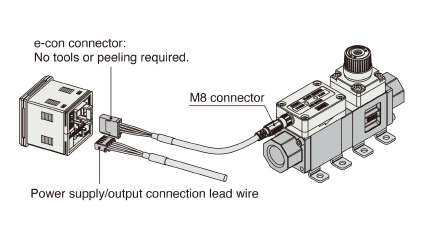

■Connector reduces wiring labor

■PVC piping type

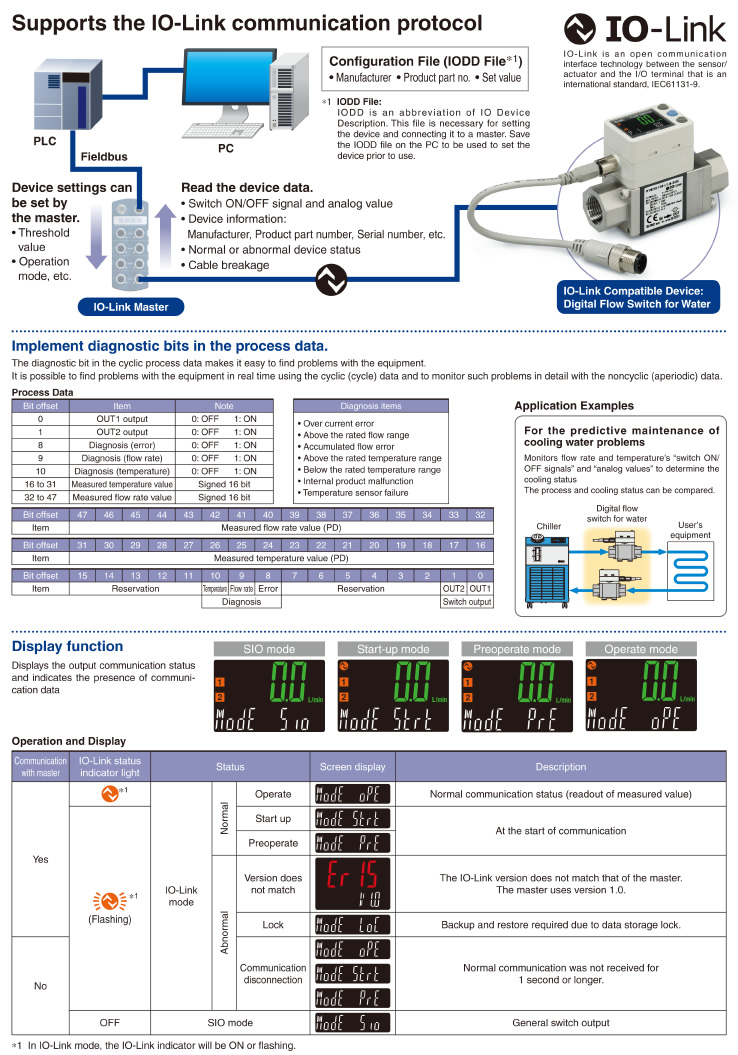

■Supports the IO-Link communication protocol
