Air Saving Speed Controller AS-R/AS-Q

Description

・Reduce air consumption just by mounting to an air cylinder.
・Air consumption reduced by 25%
・Mounting and operation are the same as regular speed controller.
・Equal response time
　No delay of response time with 2-pressure control
・Compact: 85% reduction
　The functions of the regulator and speed controller have been integrated.

Other Data :
> Safety Instructions
> Flow Control Equipment/Precautions
> Green Procurement (RoHS)

Product Number Check

Download Catalogs

Categories: , ,

Technical Data

Features

■Reduce air consumption just by
mounting to air cylinder

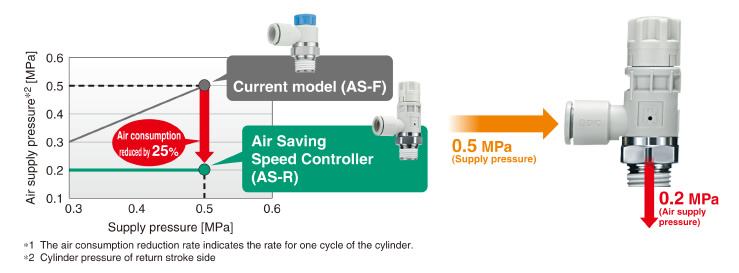

■Air consumption reduced by 25%

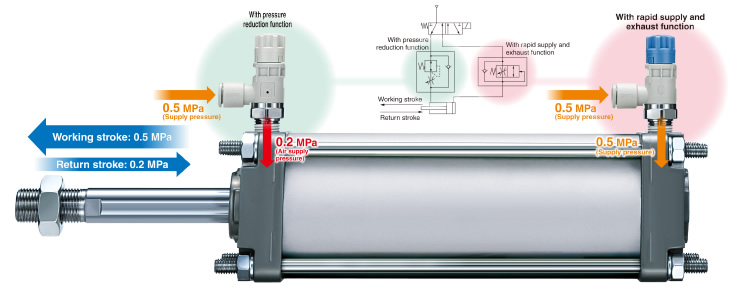

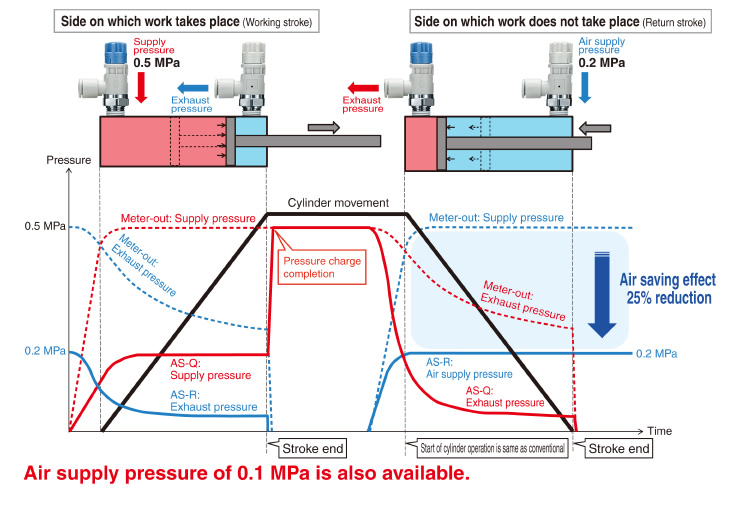

Acquire two-pressure control just by mounting the product. Reduces the air supply pressure of the stroke on the nonworking side to 0.2 MPa.

■Mounting and operation are the same as a speed controller



■Equal response time

No delay of the response time with two-pressure control
Improved output response at the stroke end due to rapid air-charge.
Improved response time of return stroke due to rapid air exhaust.

■Compact 85*1% reduction
（Occupied volume: 230 cm3 ➡ 34 cm3）

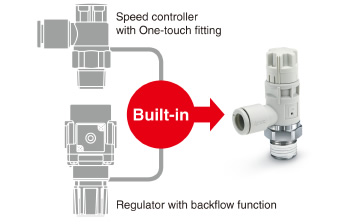

The functions of the regulator and speed controller are combined.

*1 Comparison of AR20K-02-B + AS22m1F-02-08 and AS22R-02-08

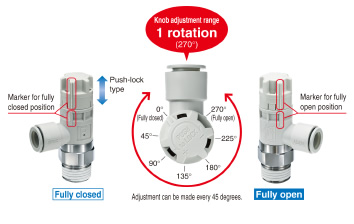

■Easy Adjustment

Push-lock type
Only speed is adjustable.

■Lurch Prevention

As this product is operated by the return stroke at a reduced pressure by the meter-in circuit, a sudden extension of the working stroke is prevented.

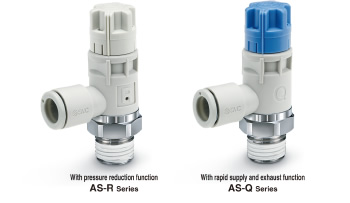

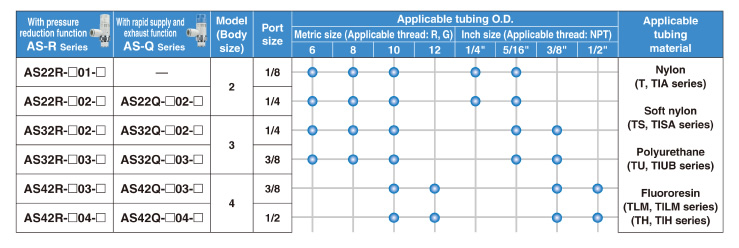

■Variations

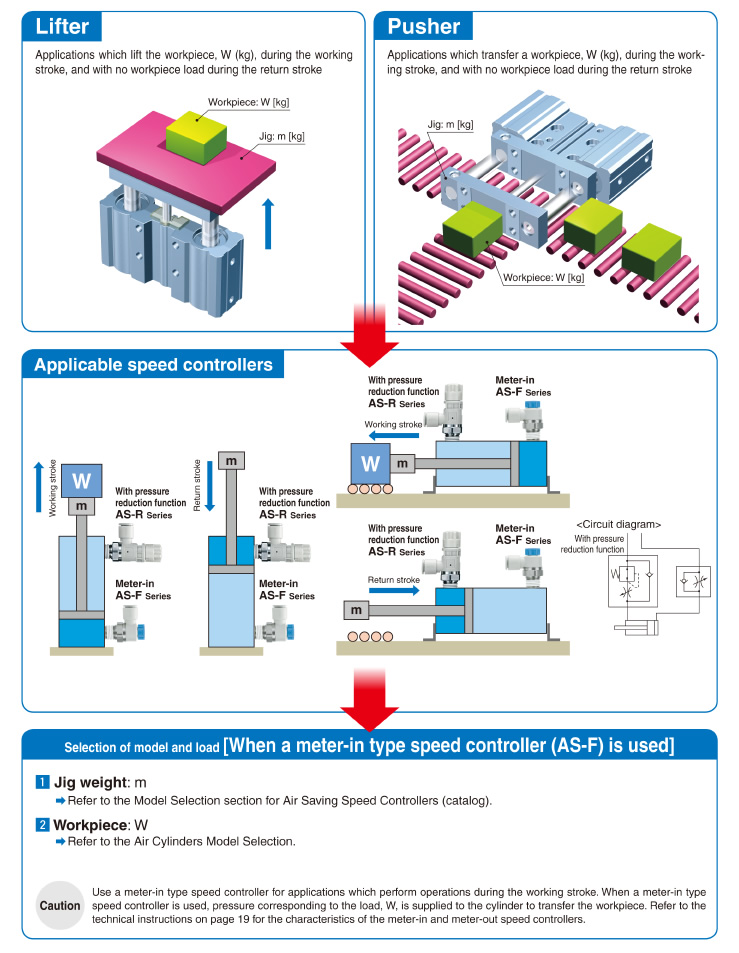

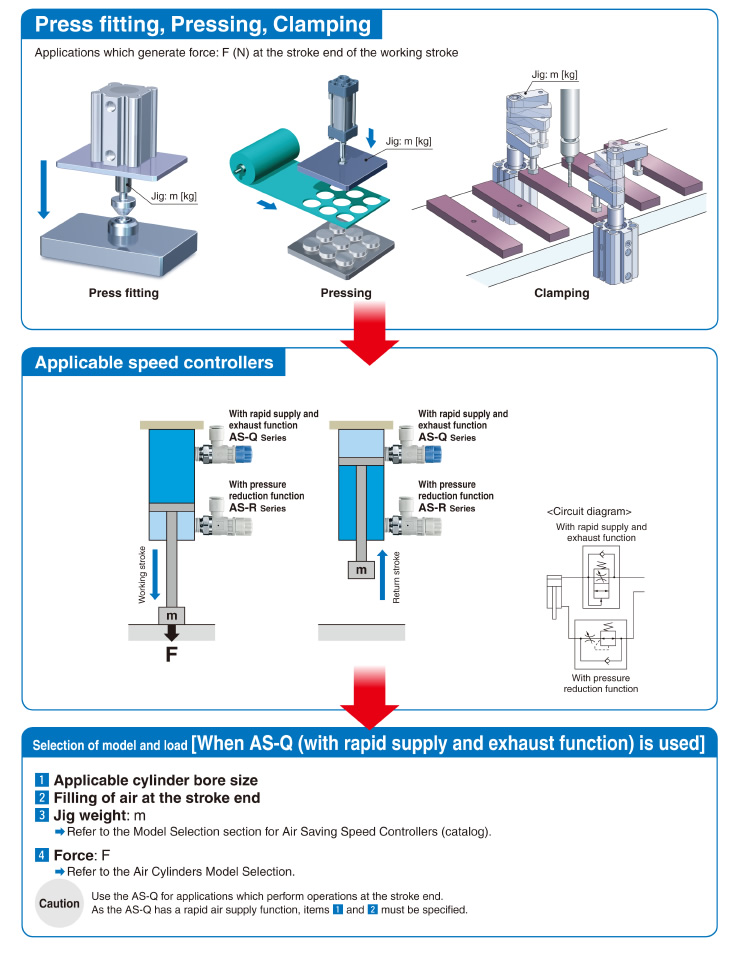

■Applications and Load



■Application Proposal for Air Saving Speed Controller

●Air consumption reduction ratio: 50%

* Comparison of air consumption when the supply pressure is 0.5 MPa
* In this case, the load to move the workpiece is piston area multiplied by 0.2 MPa.

●Air consumption reduction ratio: 46%
