Technical Data

Features

Spatter Resistant Cylinders for Arc Welding

XC88/XC89


■Drastically reduces spatter adhesion by the use of three roles in one unit.

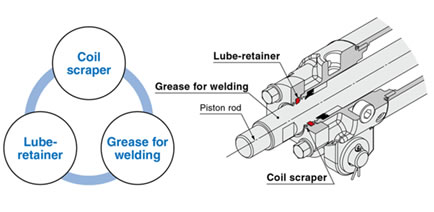

  • Achieves long service life by the use of the three roles of the coil scraper, Lube retainer and grease for welding in one unit for a cylinder.

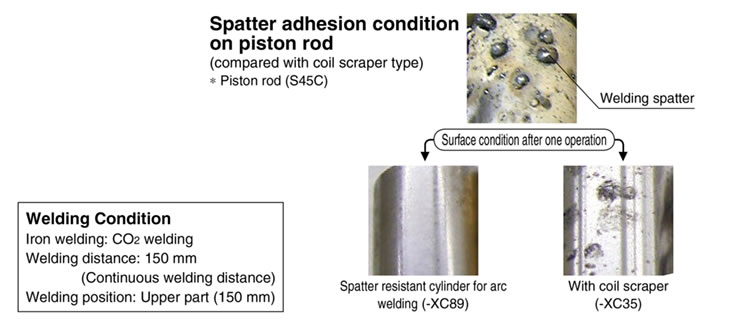

  • Reduces spatter adhesion.

■Improved cylinder durability

Spatter does not easily adhere to the piston rod of the spatter resistant cylinders for arc welding, which improves durability.


■Reduces cylinder maintenance labor.

Improved durability reduces the maintenance frequency, number of replacements and man hours.

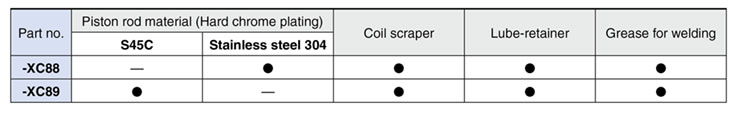

■Piston rod materials can be selected for the welding conditions and environment.

XC91

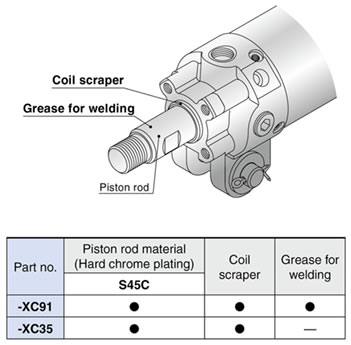

■Improved spatter resistance with coil scraper and welding grease


■External and mounting dimensions are compatible with coil scraper type (-XC35).


■Reduces cylinder maintenance labor.

Improved durability reduces the maintenance frequency, number of replacements and man hours.

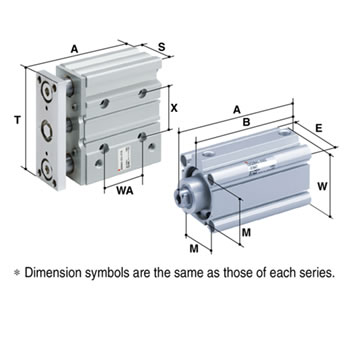

■Applicable Cylinders
