Air Cylinder CA2/CDA2

Description

・Weight reduced by up to 15%
・Easy air cushion control
・Various switches, such as compact auto switches and magnetic field
　resistant auto switches, can be mounted.
・Part numbers with a rod end bracket and/or pivot bracket are available.
　(It is not necessary to order a bracket for the applicable cylinder separately.)
・With auto switch (CDA2 series: CDA2, CDA2W, CDA2K, CDA2KW, CDBA2,
　CDA2□H, CDA2W□H, CDA2□Q)

Other Data :
> Safety Instructions
> Actuators/Precautions
> Auto Switches/Precautions
> Model Selection/Technical Data
> Quick Selection Table
> Simple Specials
> Made to Order Common Specifications
> Green Procurement (RoHS)

Product Number Check

Simple Specials

Made to Order Common Specifications

Download Catalogs

Categories: , ,

Technical Data

Features

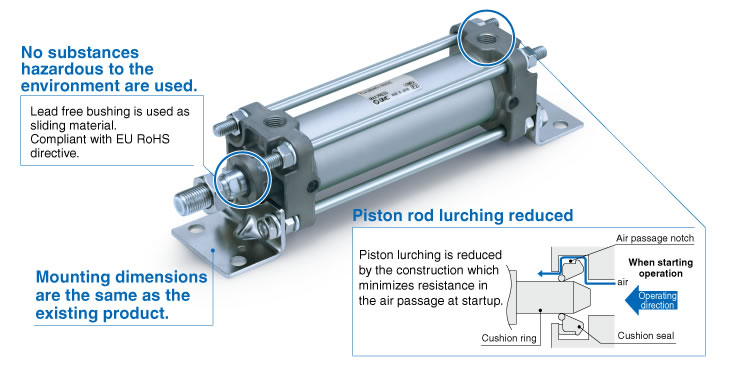

■Reduced weight by changing the shape of the rod cover and head cover.

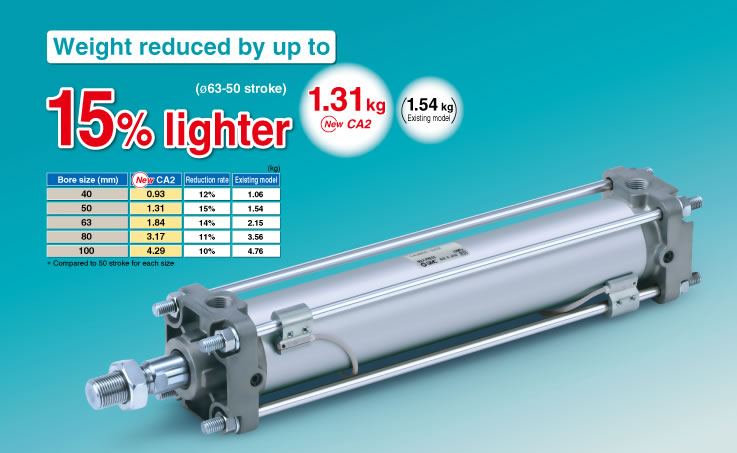

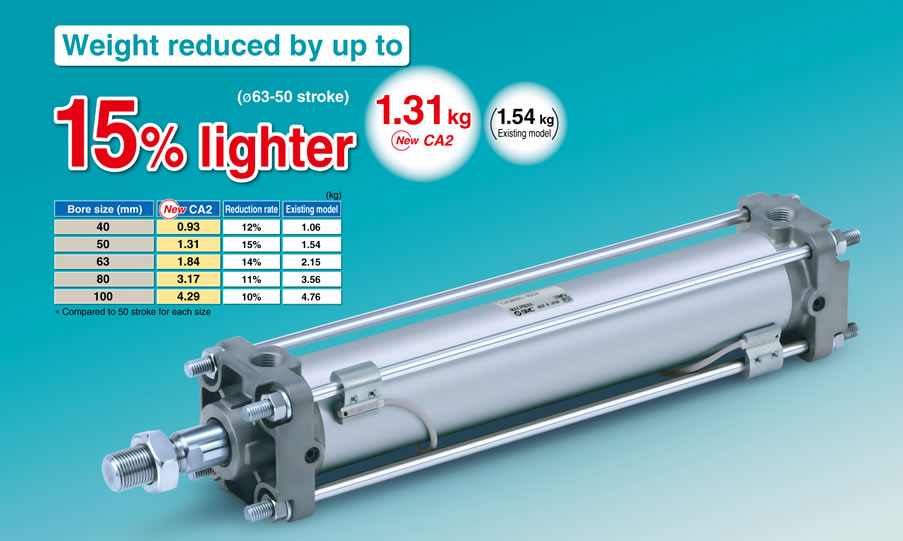

Weight reduced by up to 15% lighter（ø63-50 stroke）
1.31 kg（New）←1.54 kg（Existing model）

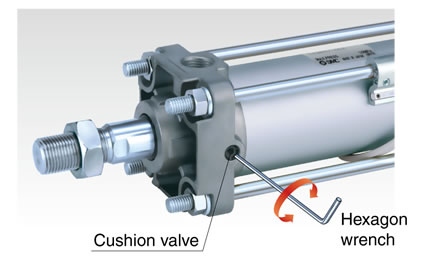

■Easy air cushion control

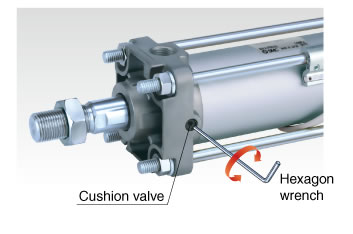

Number of cushion valve adjustment rotations increased from 1 rotation to 3 rotations.

Fine adjustment becomes easy, ensuring smooth operation at the stroke end.

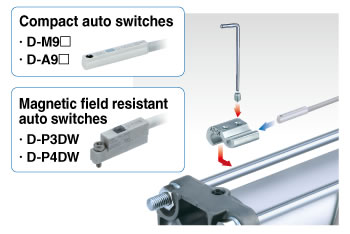

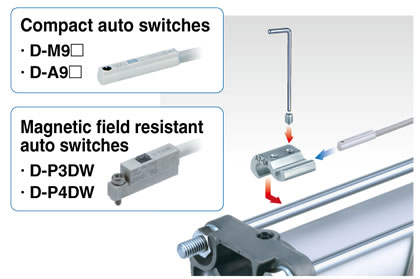

■Various switches such as compact auto switches and magnetic field resistant auto switches can be mounted.

■Made to Order set additionally

  • Heat resistant cylinder（-XB6）
  • With heavy duty scraper（-XC4）
  • Adjustable stroke cylinder（-XC8, 9）
  • Dual stroke cylinder（-XC10, 11） etc. are added.

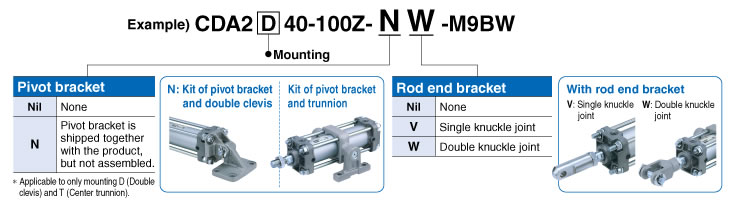

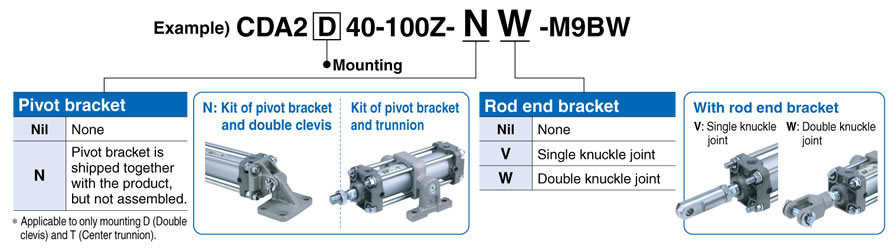

■Part numbers with rod end bracket and/or pivot bracket available

Not necessary to order a bracket for the applicable cylinder separately

Note) Mounting bracket is shipped together with the product, but not assembled.

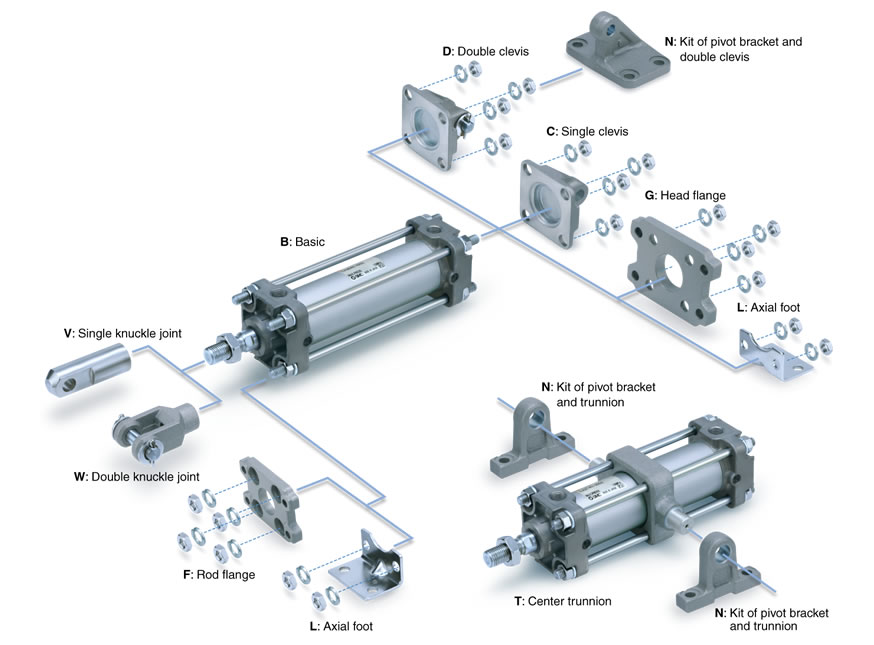

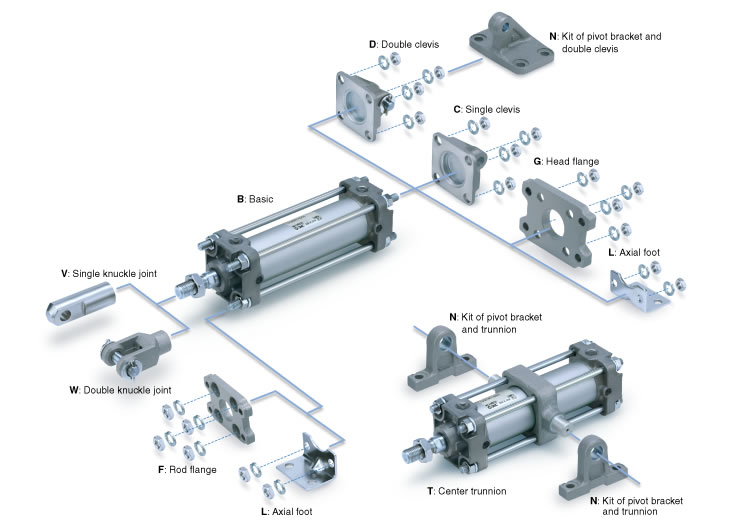

■Various mounting bracket options

  • Suitable mounting brackets can be selected for the installation condition.
  • Improved amount of mounting freedom

■Other Features

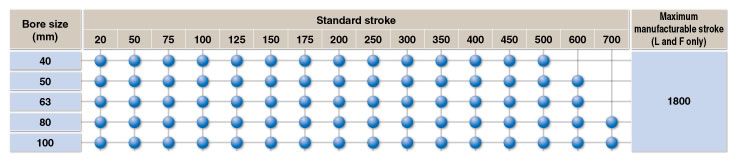

■Stroke Variations

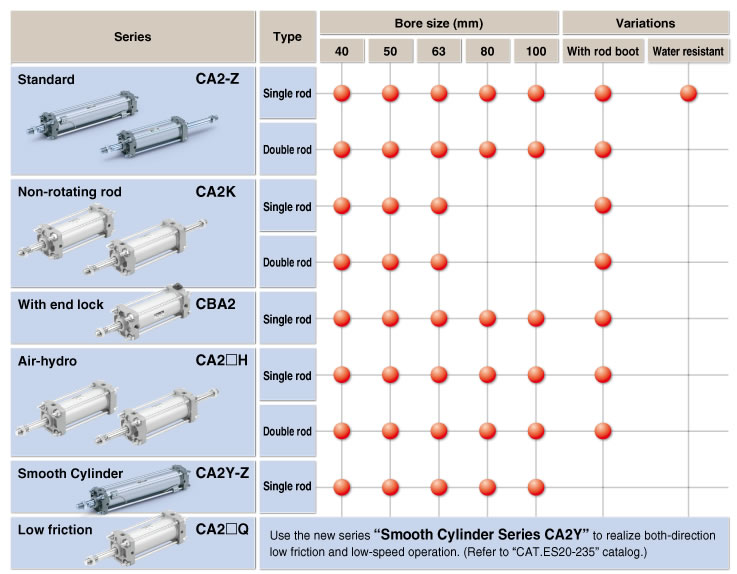

■Series Variations

∗ For details about the clean series, refer to the WEB catalog.
